Transceptor QSFP112 BLUEOPTICS NVIDIA 980-9I693-F4NS00, MPO-MTP-12/APC, 400GBASE-SR4, fibra multimodo, 850nm, 50 metros, 0 °C/+70 °C, DDM

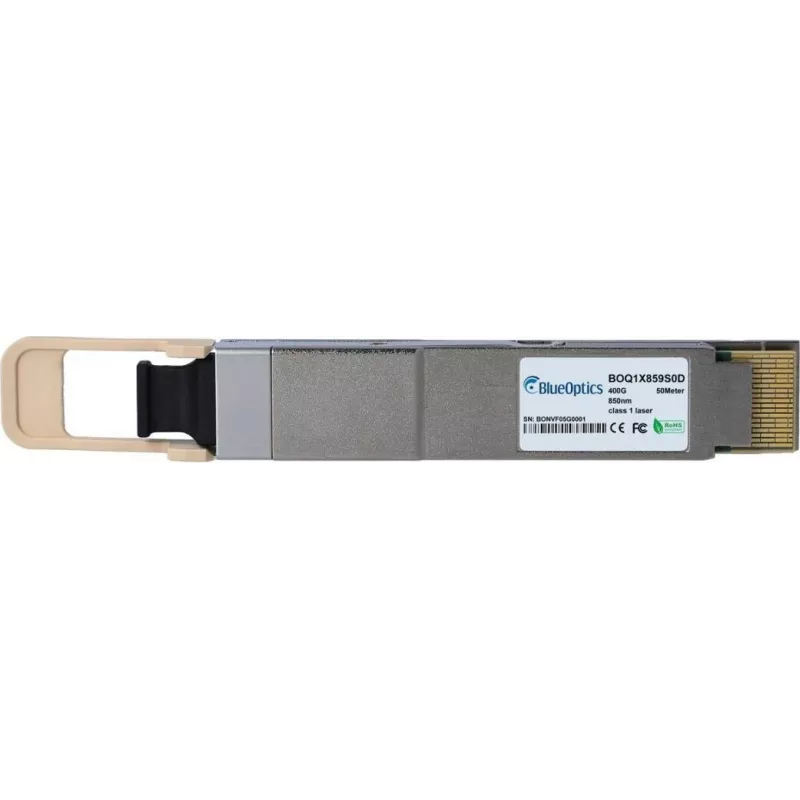

The BLUEOPTICS 980-9I693-F4NS00-BO is a high-performance QSFP112 transceiver designed for 400GBASE-SR4 applications. It is compatible with NVIDIA equipment and supports multimode fiber (MMF) with an MPO-MTP-12/APC connector. Operating at 850nm wavelength, it provides reliable data transmission over distances up to 50 meters. The transceiver features Digital Diagnostic Monitoring (DDM) for real-time performance tracking and operates in a temperature range of 0°C to +70°C.

Advantages

This transceiver offers seamless integration with NVIDIA networking hardware, ensuring high-speed data transfer and low latency. The DDM capability allows network administrators to monitor key parameters such as temperature, voltage, and optical power, facilitating proactive maintenance and troubleshooting. Its robust design ensures stable performance in data center environments.

Suitable for

• Data centers requiring high-bandwidth 400G connections
• Enterprise networks upgrading to 400GBASE-SR4 standards
• High-performance computing (HPC) clusters
• Telecommunications infrastructure

Key specifications

• Form Factor: QSFP112
• Data Rate: 400GBASE-SR4
• Connector: MPO-MTP-12/APC
• Fiber Type: Multimode (MMF)
• Wavelength: 850nm
• Maximum Reach: 50 meters
• Operating Temperature: 0°C to +70°C
• DDM: Yes
• Compatibility: NVIDIA

Recommendations

For optimal performance, pair this transceiver with high-quality OM4 or OM5 multimode fiber cables and ensure proper cleaning of MPO connectors. Verify compatibility with your NVIDIA switch or adapter before installation.
