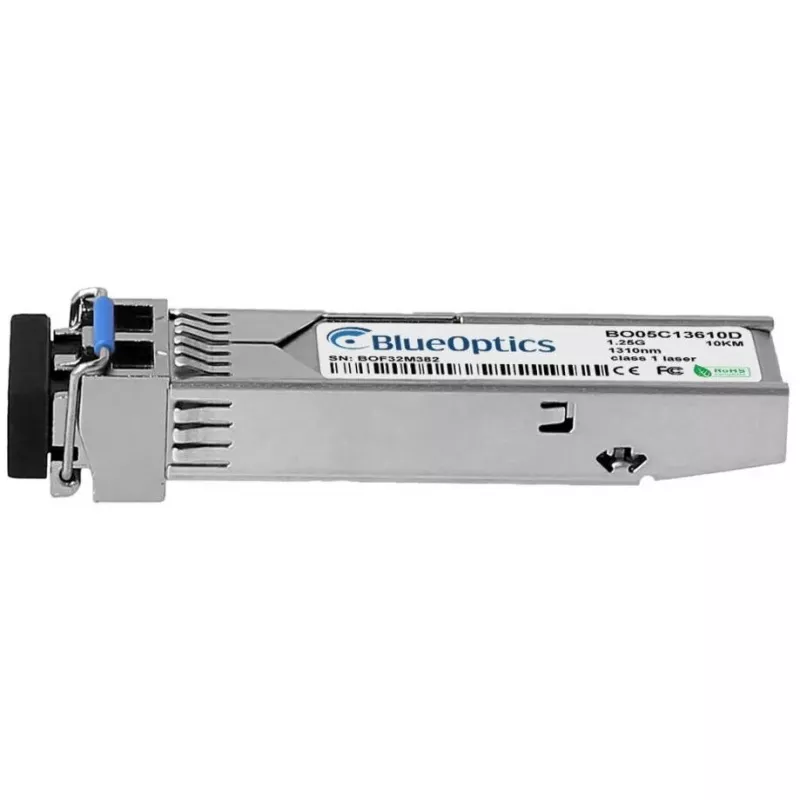

Transceptor SFP de fibra ótica BlueOptics E1MG-LX-BO 10000 m alumínio

The BlueOptics E1MG-LX-BO is an SFP fiber optic transceiver engineered for single-mode links and high-speed data transmission up to 10,000 m. Housed in an aluminium casing and weighing approximately 20 g, the module follows MSA SFP form-factor conventions and uses an LC duplex connection. It supports 1000BASE-LX rates with 1310 nm transmitter and receiver wavelengths, suitable for Ethernet, Fibre Channel over Ethernet and SDH/SONET applications requiring reliable point-to-point optical connectivity.

Advantages

The transceiver combines a compact aluminium enclosure with low weight for easy handling and installation. It is designed to be compatible with hardware that supports the Brocade E1MG-LX 1000BASE-LX SFP and is manufactured to meet MSA standards. The module supports digital diagnostics (DDM/DOM) for monitoring supply voltage, laser bias current, transmit power, receive power and temperature when the host device supports these features. Built using selected optical lasers and IC components, the unit is intended for long service life and stable operation in single-mode optical networks.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFP transceiver into a compatible SFP slot of your switch, router or storage system with the LC duplex receptacle oriented correctly. Use single-mode LC patch cords for the optical connection and ensure transmit and receive fibers are crossed appropriately between link endpoints. Confirm that the host device supports 1000BASE-LX and, if required, DDM/DOM functions to access diagnostic values. Allow the module a short initialization time after hot-plugging before verifying link state and traffic.

Recommendations

For optimal performance, pair the transceiver with certified single-mode fiber and low-loss LC connectors, keep fiber connectors clean, and verify link parameters in the host device. Ensure firmware or driver compatibility on the host platform to maintain full functionality and diagnostic access.
