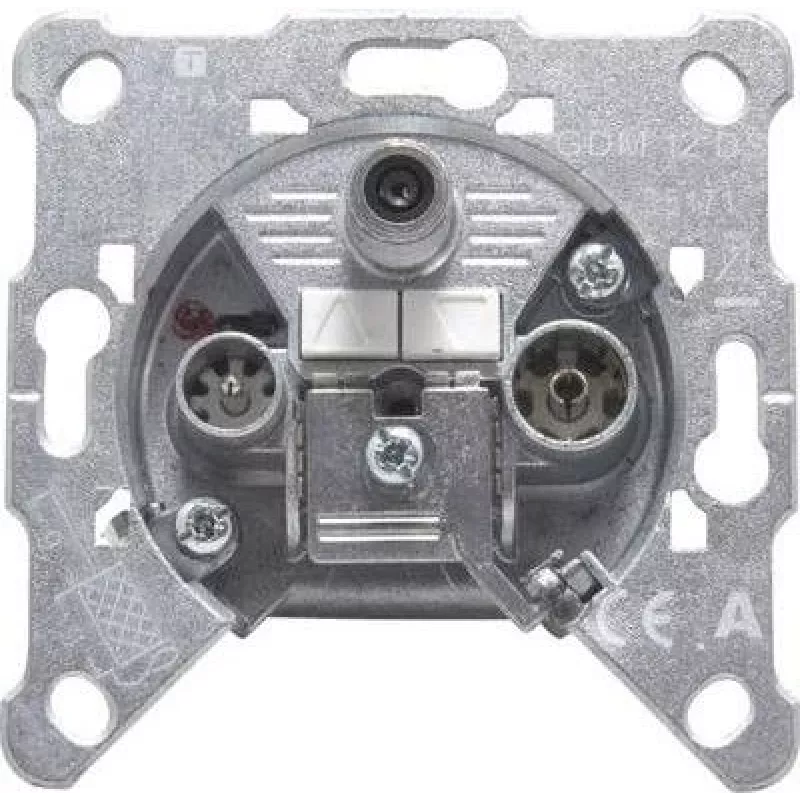

Triax GDM 12 Tomada final multimédia, 1x conector F, 1x ficha IEC, 1x conector fêmea IEC, encastrar, caixa metálica, blindagem classe A 306273

In modern homes, distributing TV, radio, and satellite signals to multiple rooms often leads to signal loss and interference, especially when using inadequate wall outlets. The Triax GDM 12 multimedia end socket solves this by providing a professional-grade, flush-mounted connection point that maintains signal integrity across all three services. With its metal housing and Class A shielding, it effectively blocks external electromagnetic interference, ensuring crystal-clear reception for your entertainment systems.

Who is it for

This socket is ideal for installers and homeowners setting up or upgrading a home distribution network. It is particularly suited for star-wired installations and single-cable systems where reliable end-of-line termination is required. Whether you're connecting a cable modem, satellite receiver, or terrestrial TV, this unit delivers consistent performance.

Main features

• Three dedicated connectors: 1x F-connector for satellite/data, 1x IEC male for TV, and 1x IEC female for radio.
• Wide frequency coverage: 5-862 MHz for TV, 87.5-108 MHz for radio, and 5-2400 MHz for satellite/data.
• Low insertion loss of only 1.5 dB across all ports, preserving signal strength.
• DC pass-through on the F-connector allows remote powering of LNBs or other active components.
• Return path capability supports interactive services like cable internet and video on demand.
• Robust metal housing with Class A shielding for superior interference rejection.
• Flush-mounted design blends seamlessly with standard wall plates.

Specifications

• Product type: Multimedia end socket
• Connector type (Data/SAT): 1x F-connector
• Connector type (TV): 1x IEC male
• Connector type (Radio): 1x IEC female
• Frequency range (TV): 5-862 MHz
• Frequency range (Radio): 87.5-108 MHz
• Frequency range (SAT/Data): 5-2400 MHz
• Output attenuation (TV): 1.5 dB
• Output attenuation (Radio): 1.5 dB
• Output attenuation (SAT/Data): 1.5 dB
• Shielding class: Class A
• DC pass-through: Yes (F-connector)
• Impedance: 75 Ohm
• Mounting type: Flush-mounted
• Return path capability: Yes
• Housing material: Metal

Tips

For best results, use high-quality coaxial cables with proper shielding and ensure all connections are tight. When installing in a series network, this socket should be used as the final outlet to terminate the line correctly. If you need to power a satellite LNB through the same cable, verify that your receiver or multiswitch supports DC pass-through.
