Vivanco VVSATSPLIT1IN2OUT Repartidor de satélite 1 entrada 2 saídas 5-2400 MHz ficha F

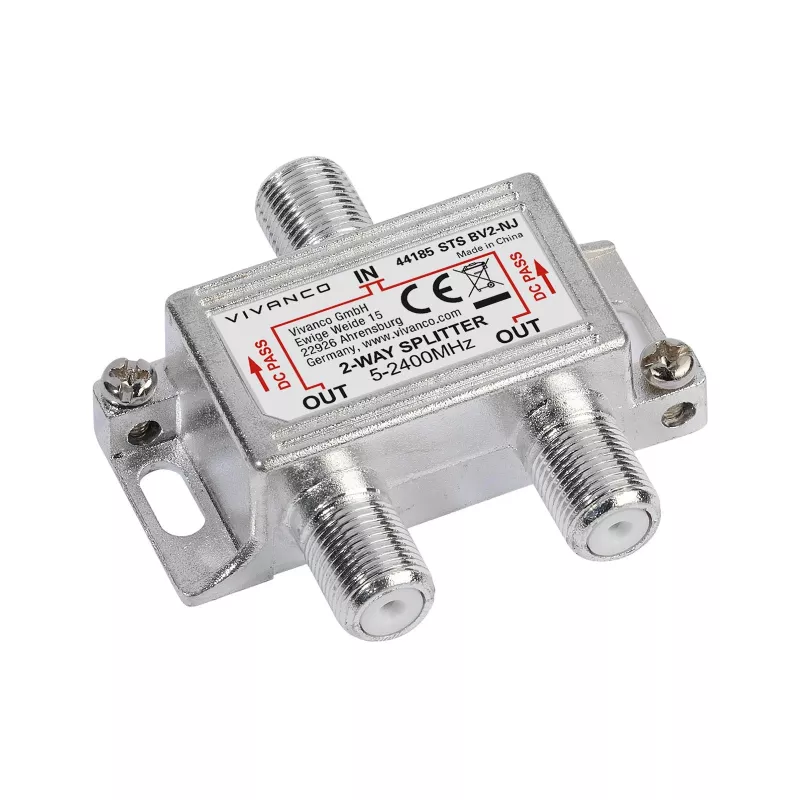

For satellite TV installers and home users who need to feed two receivers from a single LNB, the Vivanco VVSATSPLIT1IN2OUT is a compact, die-cast zinc splitter that maintains signal integrity across the full 5–2400 MHz band. It's ideal for splitting a satellite feed to two set-top boxes in different rooms, or for combining terrestrial and satellite signals on one cable run.

Key specifications

• 1 input, 2 outputs (F-connector female)
• Frequency range: 5 - 2400 MHz
• Impedance: 75 Ohm
• Insertion loss: 4.5 dB (5-450 MHz), 5.0 dB (450-860 MHz), 6.0 dB (950-2400 MHz)
• Isolation: >25 dB (5-450 MHz), >20 dB (450-2400 MHz)
• Return loss: >10 dB
• DC pass on one output for LNB powering
• Shielding factor: >100 dB
• Housing: die-cast zinc

Why choose it

This splitter is built to handle the demands of modern satellite and cable TV installations. The die-cast zinc housing provides excellent shielding against interference, and the DC pass feature allows you to power an LNB through one output while the other output remains isolated. With low insertion loss and high isolation, you can split signals without noticeable degradation.

Ideal use cases

• Connecting two satellite receivers to a single LNB
• Distributing a combined SAT/DVB-T signal to two rooms
• Adding a second TV point in a home or small office
• Professional installations where reliable signal splitting is required

Good to know

The splitter is designed for indoor use and should be mounted in a dry location. It supports DC pass-through on one output, so only one receiver can power the LNB. For best results, use high-quality coaxial cables with F-connectors and ensure proper termination of unused ports if applicable.
