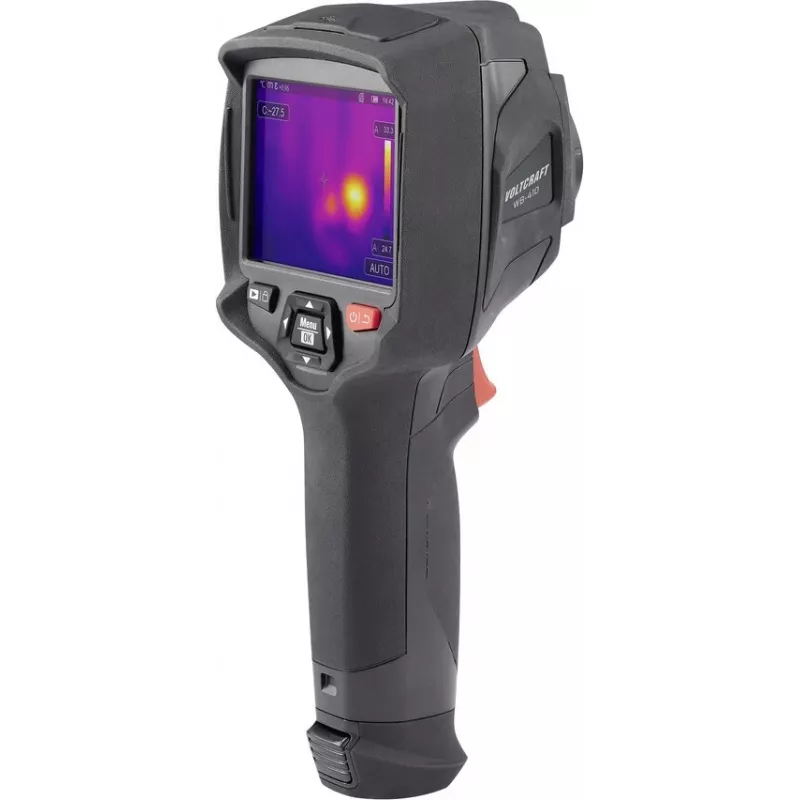

Voltcraft WB-410 Câmara térmica -20 a 550 °C 160 x 120 píxeis 25 Hz ecrã tátil WLAN

The Voltcraft WB-410 stands out with its combination of a 160 x 120 pixel thermal detector, a 3.5-inch touchscreen, and integrated Wi-Fi—features usually reserved for more expensive models. It delivers crisp thermal images at a 25 Hz refresh rate, making it suitable for both static inspections and moving targets.

Highlights

• 160 x 120 pixel thermal resolution with <50 mK sensitivity
• Wide -20 to 550 °C measurement range
• 3.5" LCD touchscreen with 320 x 240 resolution
• 25 Hz frame rate for smooth imaging
• Wi-Fi and USB-C connectivity
• 5 MP digital camera for visible light images
• IP54 rated and 2 m drop resistant

In daily use

The WB-410 is a practical tool for electricians, HVAC technicians, and building inspectors. Its fixed focus lens and laser pointer allow quick target acquisition, while the adjustable emissivity (0.01–1.00) ensures accurate readings on various surfaces. The 16 GB internal storage holds thousands of radiometric images, and the 4-hour battery life covers a full workday. The touchscreen interface simplifies menu navigation, and the Wi-Fi function enables wireless transfer of images to a smartphone or PC for reporting.

Full specifications

• Detector resolution: 160 x 120 pixels
• Temperature range: -20 to 550 °C
• Thermal sensitivity (NETD): <50 mK @25°C
• Frame rate: 25 Hz
• Display: 3.5" LCD touchscreen, 320 x 240 pixels
• Field of view: 37.2° x 28.1°
• Spatial resolution (IFOV): 4.1 mrad
• Accuracy: ±2°C or ±2% (whichever is greater)
• Emissivity: 0.01–1.00 adjustable
• Digital camera: 5 MP
• Connectivity: Wi-Fi, USB-C
• Internal storage: 16 GB eMMC
• Battery life: up to 4 hours
• IP rating: IP54
• Drop resistance: 2 m
• Laser pointer: Yes
• Focus: Fixed focus
• Spectral range: 8–14 µm

Final note

The WB-410 is a rugged, feature-rich thermal camera that bridges the gap between entry-level and professional tools, offering touchscreen convenience and wireless connectivity at a competitive price.
