Câmara térmica FLIR FOEDGE, 80×60 px, -20 a 120 °C, 8,7 Hz, NETD 70 mK, tamanho de pixel 12 µm

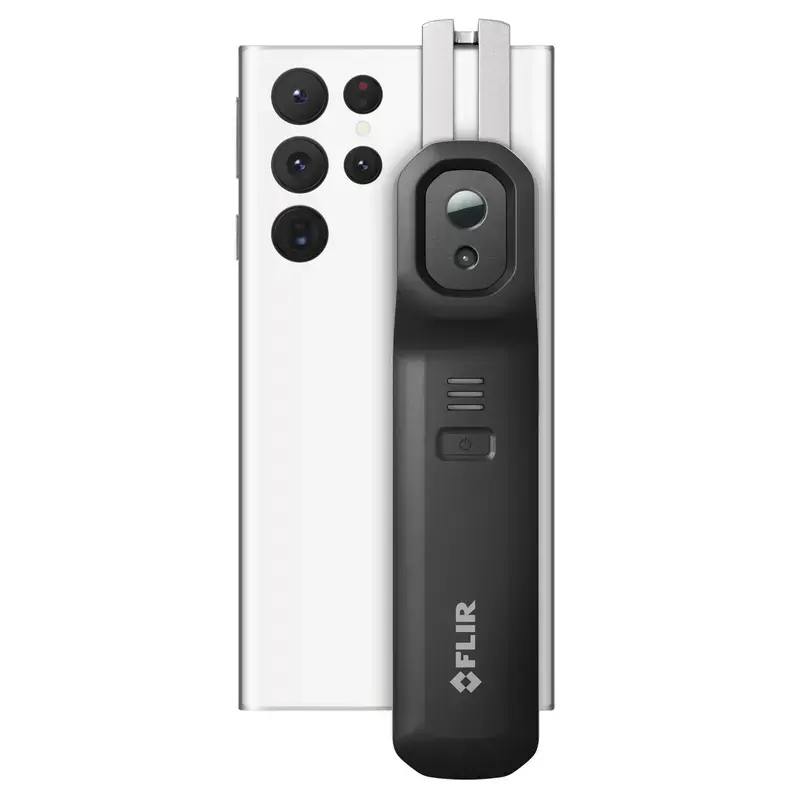

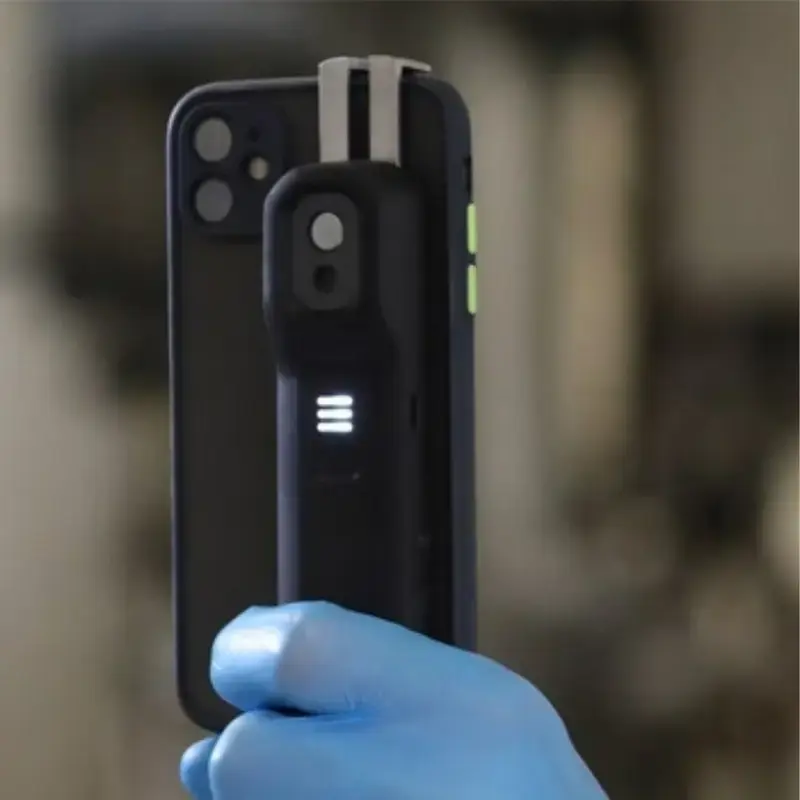

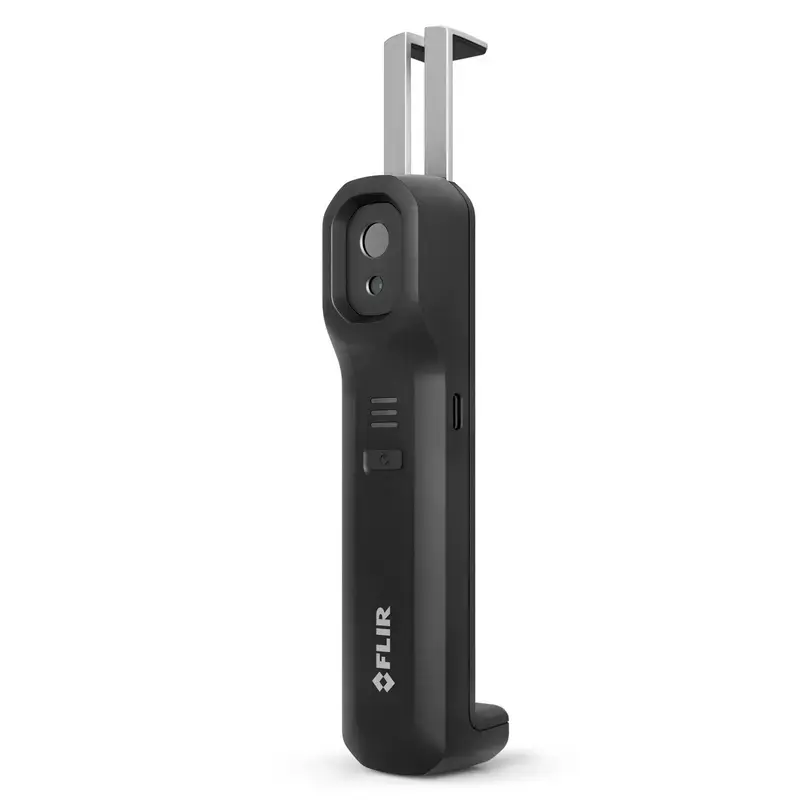

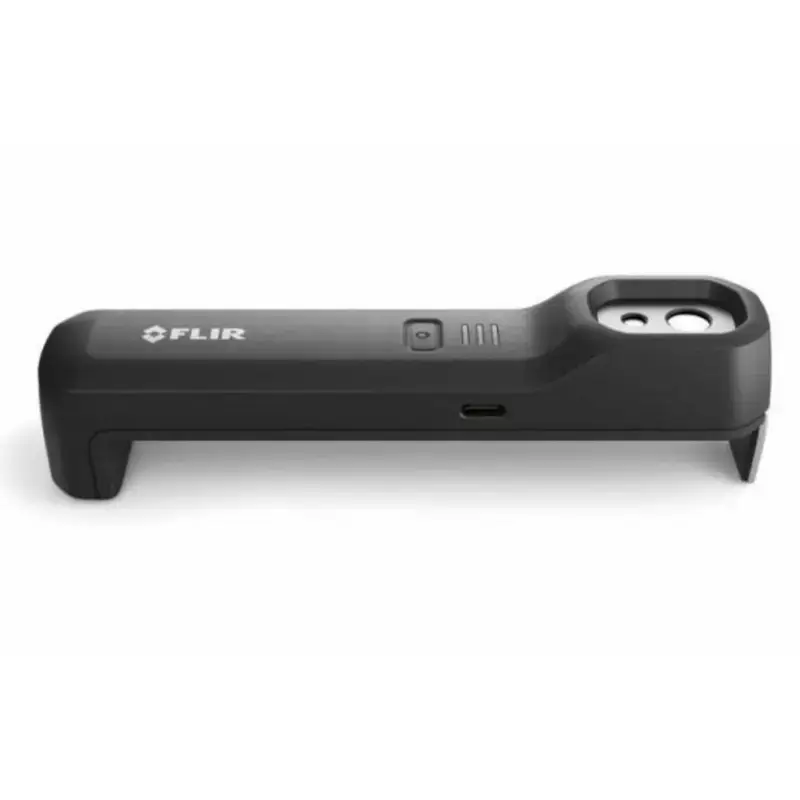

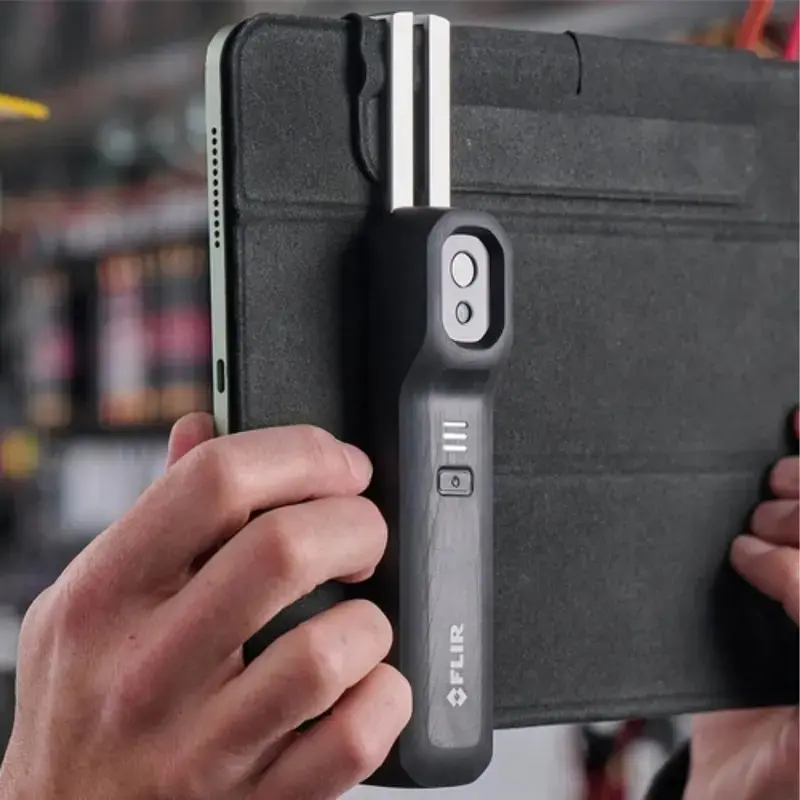

FLIR ONE Edge is a wireless thermal camera for iOS and Android smartphones and tablets that provides portable thermal imaging with an 80 × 60 (4,800 pixels) sensor and 12 μm pixel size. The device supports remote inspections up to 30 m (100 ft), can be clipped to a phone or tablet for one-handed operation, and uploads images and video to the FLIR Ignite cloud for editing, storage, and sharing. VividIR and FLIR MSX® image enhancement technologies improve detail and clarity, and the camera measures temperatures from -20 °C to 120 °C with specified accuracy.

Advantages

FLIR ONE Edge offers wireless connectivity that removes compatibility constraints with carriers or operating system updates, enabling continued use without replacing the camera. Image enhancement features such as VividIR and MSX increase visual detail for clearer diagnostics, while a rugged design, a 2.5‑hour approximate battery life and quick USB‑C charging support field work. The unit records radiometric JPG and video files, integrates with FLIR Ignite and FLIR Thermal Studio, and provides automatic or manual shutter control for reliable measurements.

Suitable for (tasks / use cases)

• Building inspections (insulation, moisture, thermal bridges)
• Electrical maintenance and troubleshooting
• HVAC diagnostics and system checks

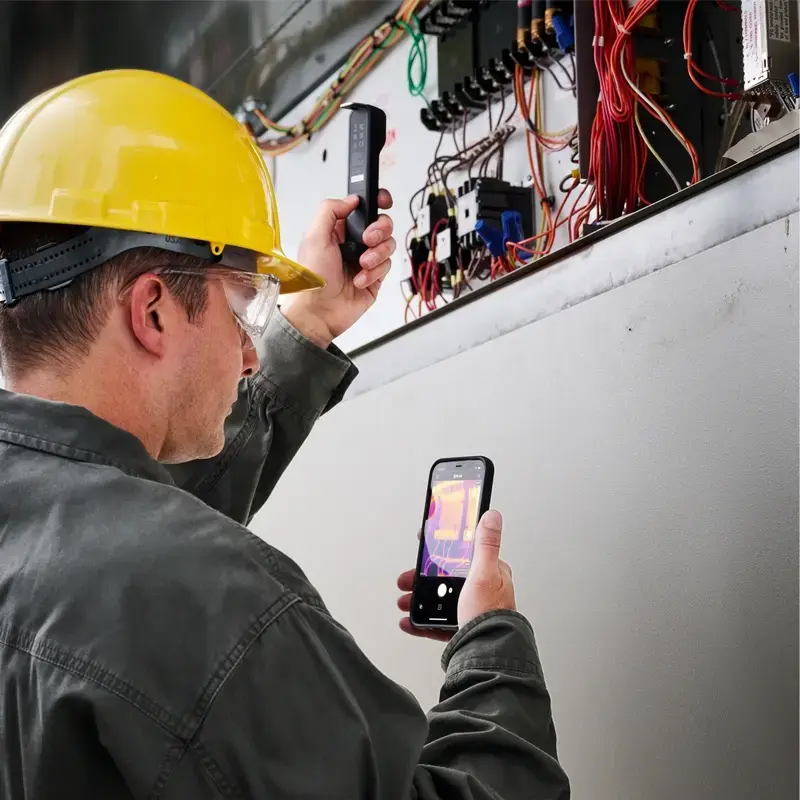

• Remote inspections of hard-to-reach or hazardous areas

Key specifications

• Thermal resolution: 80 × 60 (4,800 pixels)
• Thermal pixel size: 12 μm
• Thermal sensitivity: 70 mK
• Temperature range: -20 °C to 120 °C (-4 °F to 248 °F)
• Accuracy: ±3 °C or ±5% (conditions apply)
• Visual resolution: 640 × 480; MSX and VividIR image enhancement
• Field of view (HFOV / VFOV): 54° ±1° / 42° ±1°
• Refresh rate: 8.7 Hz
• Battery life: approx. 2 h 30 min; charging time 60–90 min; 15 min charge ≈ 40 min use
• Wireless: Wi‑Fi 802.11 a/ac/b/g/n (2.4 & 5 GHz), Bluetooth
• Remote control range: up to 30 m (100 ft)
• Size: 35 × 37.5 × 149 mm; weight: 153 g (with battery)
• Drop tested: 2 m; clamping width: 130–195 mm

How to use

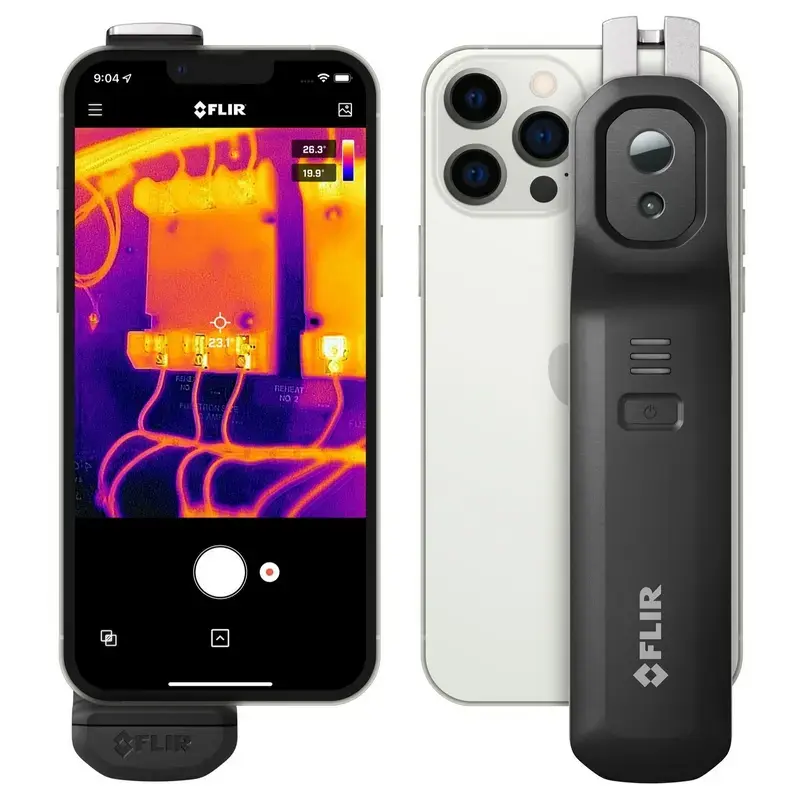

Attach the FLIR ONE Edge to your smartphone or tablet or hold it separately and connect via the device Wi‑Fi or the FLIR app. Use the FLIR mobile app to view live thermal images, apply MSX or VividIR enhancements, capture radiometric JPGs or video, and perform spot measurements (high, low, and 3‑point). For remote inspections, operate the camera wirelessly from up to 30 m away and monitor the live feed on your phone or tablet in real time.

Recommendations

For best measurement accuracy, allow the camera to stabilize for 60 seconds after startup with device temperature between 15 °C and 35 °C, and ensure scene temperature is within 5 °C to 120 °C. Use appropriate emissivity settings (matte, semi‑matte, semi‑gloss, gloss) and verify reflected apparent temperature for precise readings. Store and manage files using FLIR Ignite for organized cloud access.
