Câmara térmica FLIR FP3IC 160×120 px, 8,7 Hz, NETD 150 mK, -20–400 °C, USB‑C, caixa metálica

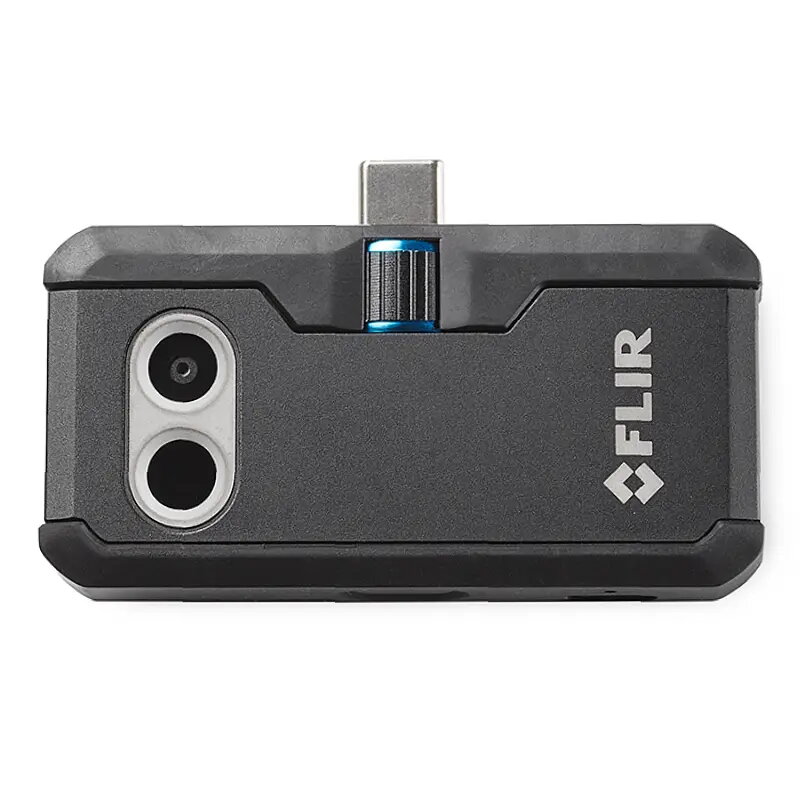

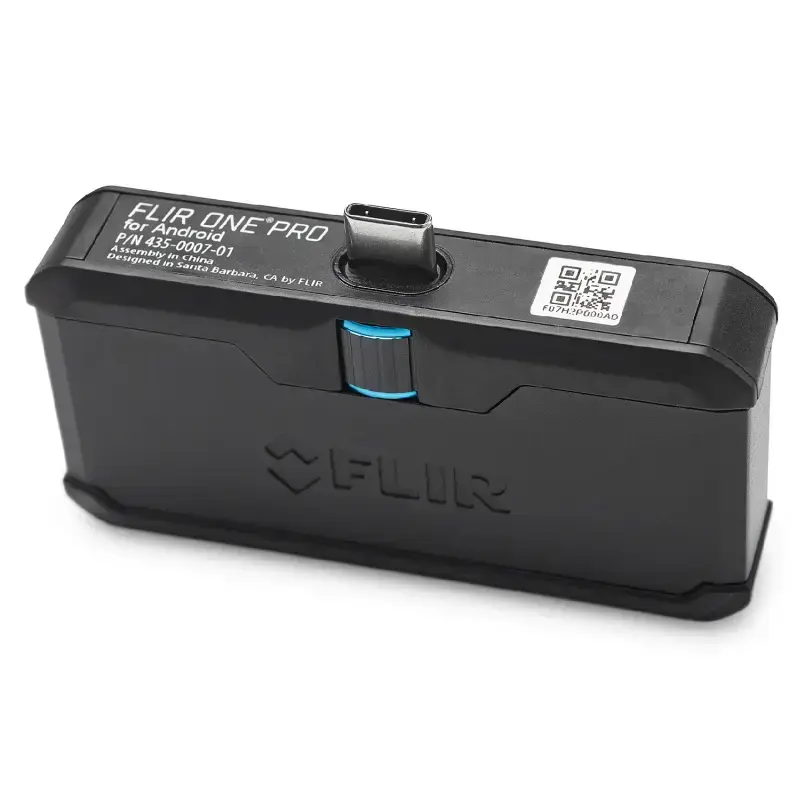

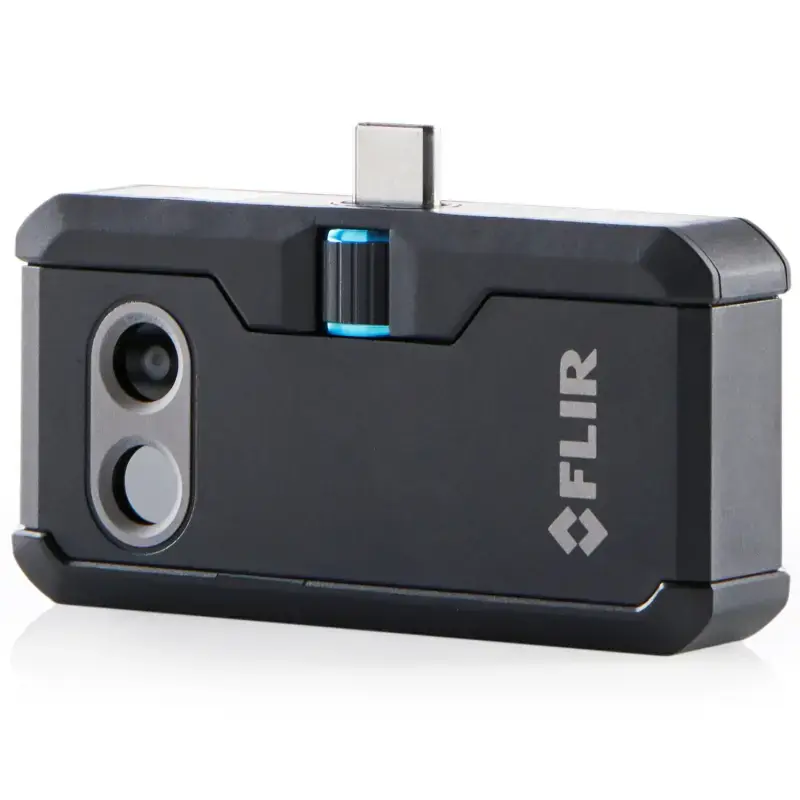

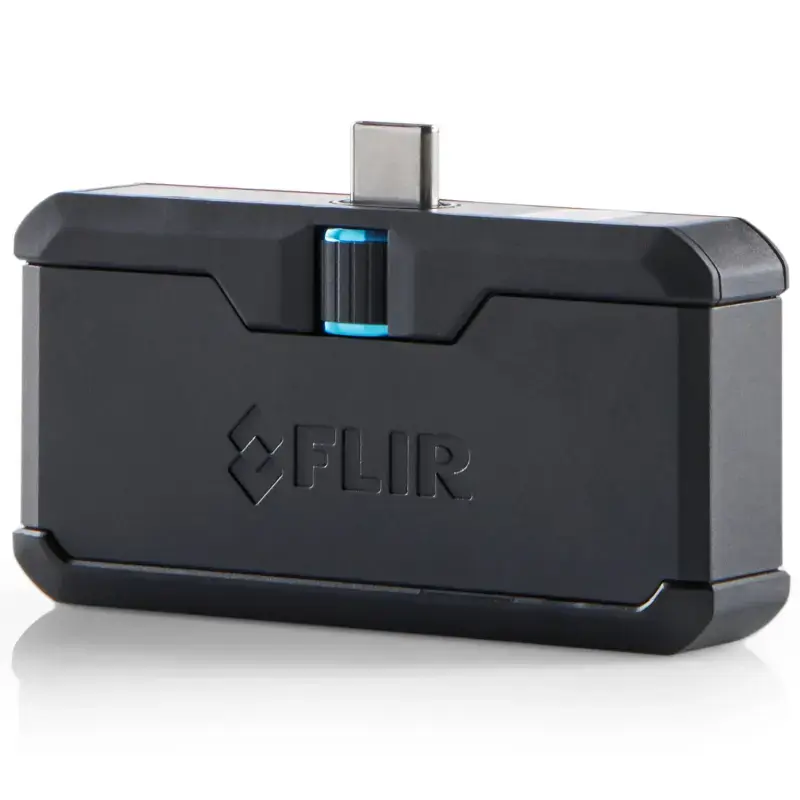

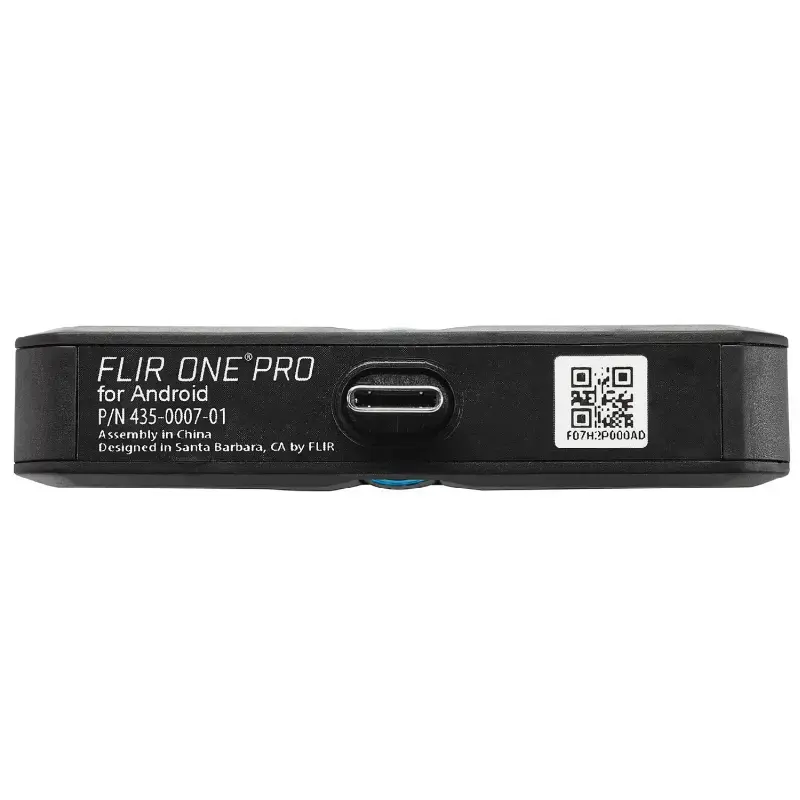

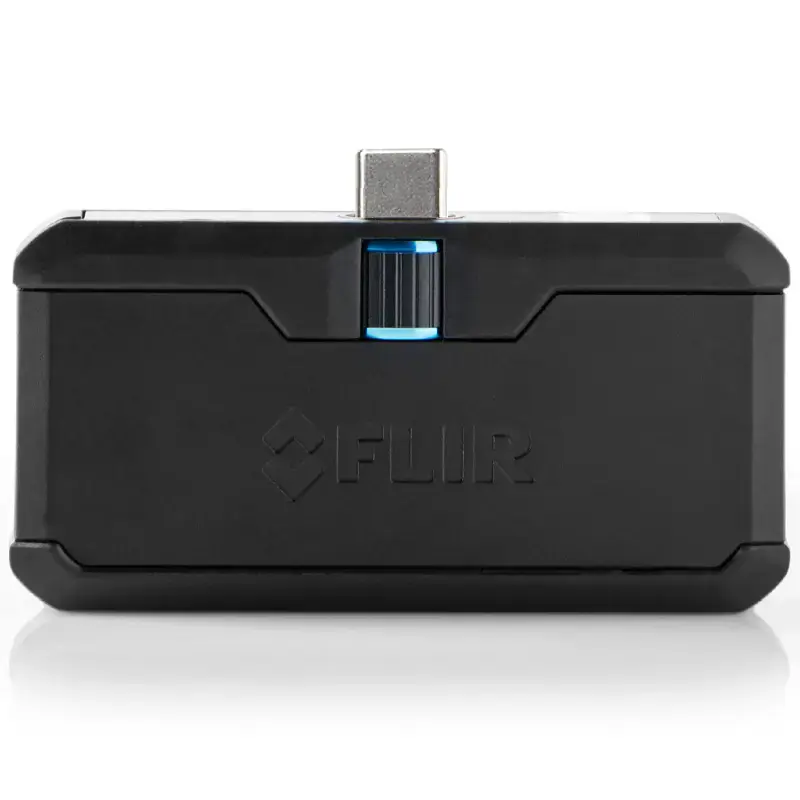

The FLIR FP3IC (FLIR ONE Pro) is a compact thermal imaging camera with a 160 × 120 thermal detector and an integrated high-resolution visible camera. It combines thermal and visible imagery with VividIR™ and MSX® processing to improve detail and measurement clarity. The device connects to iPhone or iPad with a USB‑C connector, features the OneFit™ adjustable connector to fit devices in protective cases, and is designed for field use with a durable metal housing and shock resistance up to 1.8 m.

Advantages

VividIR™ image processing and MSX® fusion increase image detail and effective thermal resolution, enabling safer distance work on electrical components and faster problem identification. The unit measures temperatures from -20 °C to 400 °C and supports multiple on-screen measurement points and area readings. OneFit™ and a USB‑C connection provide broad device compatibility, while the improved FLIR ONE app enables smartwatch visualization, pro features, and easy reporting integration.

Suitable for

• Inspection of electrical panels and components
• HVAC diagnostics and maintenance
• Detection and investigation of water damage and insulation issues
• On-site thermal documentation and reporting

Key specifications

• Thermal detector resolution: 160 × 120 pixels
• Visible camera resolution: 1440 × 1080 pixels
• Temperature range: -20 °C to 400 °C (-4 °F to 752 °F)
• Measurement precision: ±3 °C or ±5% (typical, see full spec)
• Thermal sensitivity (MRTD): 150 mK
• Refresh rate: 8.7 Hz
• Operating temperature: 0 °C to 35 °C
• Storage temperature: -20 °C to 60 °C
• Battery life: approx. 1 hour; charging time: approx. 40 minutes
• Dimensions: 68 × 34 × 14 mm; weight: 36.5 g
• Mechanical resistance: drop resistance < 1.8 m
• Connectors: USB‑C video and USB‑C charging (5V/1A)
• File formats: Radiometric JPEG for photos, MPEG‑4 (MOV) for video

How to use

Attach the FLIR FP3IC to a compatible iPhone or iPad using the OneFit™ connector; adjust the connector height to accommodate a protective case if needed. Launch the FLIR ONE app, select the desired measurement mode (photo, video, or time lapse), and use on-screen tools to place point or area measurements. Capture radiometric images or record video for later analysis and reporting. For smartwatch visualization, enable the app pairing option to send thermal images to a connected smartwatch.

Recommendations

Use the camera after it reached operating temperature (typical accuracy stated after 60 s when device ambient is between 15 °C and 35 °C). Select appropriate emissivity settings for the measured material and maintain recommended distance (MSX adjustment from 0.3 m) to ensure accurate results. Charge the device before extended inspections and store within recommended temperature limits.
