Weidmüller Borne de passagem, bege, 2,5 mm², 24 A, 50 unid.

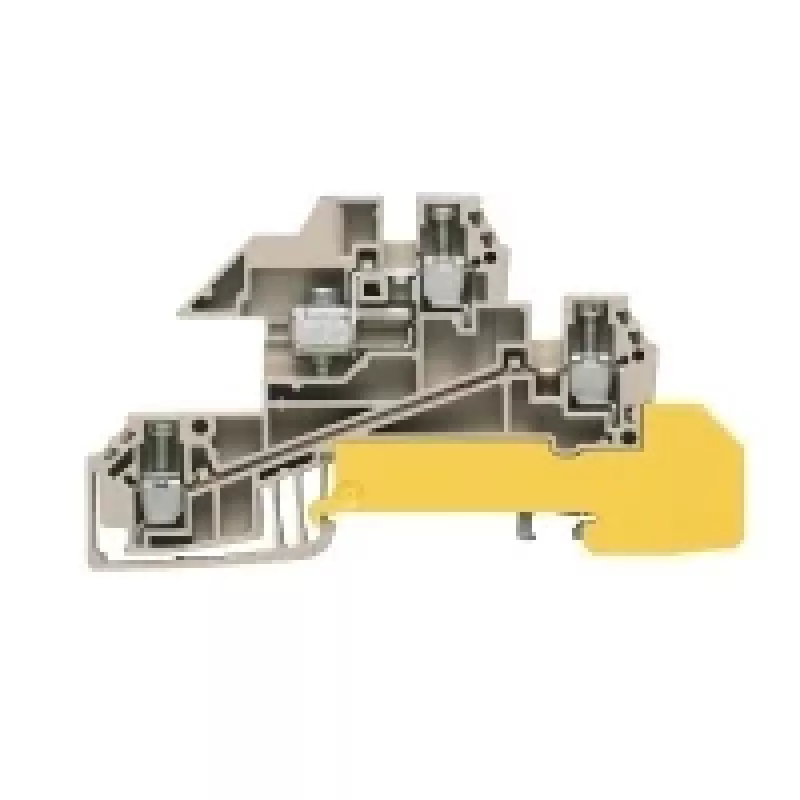

The Weidmüller 1030600000 is a high-quality feed-through terminal block designed for reliable electrical connections in industrial applications. With a nominal cross-section of 2.5 mm² and a rated current of 24 A, this terminal block ensures efficient power distribution. The beige color and compact dimensions make it suitable for various DIN rail mounting setups.

Advantages

This terminal block offers secure screw connections, easy installation on TS 35 DIN rails, and a wide operating temperature range from -50 to 120 °C. Its V-0 flammability rating ensures safety in demanding environments.

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution units
• Machine wiring

Key specifications

• Product Type: Feed-Through Terminal Block
• Nominal Cross-section: 2.5 mm²
• Rated Current (IEC): 24 A
• Rated Voltage (IEC): 800 V
• Color: Beige
• Number of Connections: 2
• Number of Potentials: 1
• Connection Technology: Screw Connection
• Mounting Type: DIN Rail (TS 35)
• Wire Size (Solid): 0.5 - 4 mm²
• Wire Size (Flexible): 0.5 - 2.5 mm²
• Stripping Length: 10 mm
• Insulation Material: Wemid (PA 66)
• Operating Temperature: -50 to 120 °C
• Pollution Degree: 3
• Flammability Rating (UL 94): V-0
• Torque (Max.): 0.6 Nm
• Quantity per Pack: 50 pieces
• Dimensions (Single Block L x W x H): 48.5 x 5.1 x 48.5 mm
• Weight (Single Block): 5.8 g

Recommendations

For optimal performance, use with appropriate DIN rail accessories and ensure proper torque settings. This terminal block is ideal for applications requiring reliable and compact wiring solutions.
