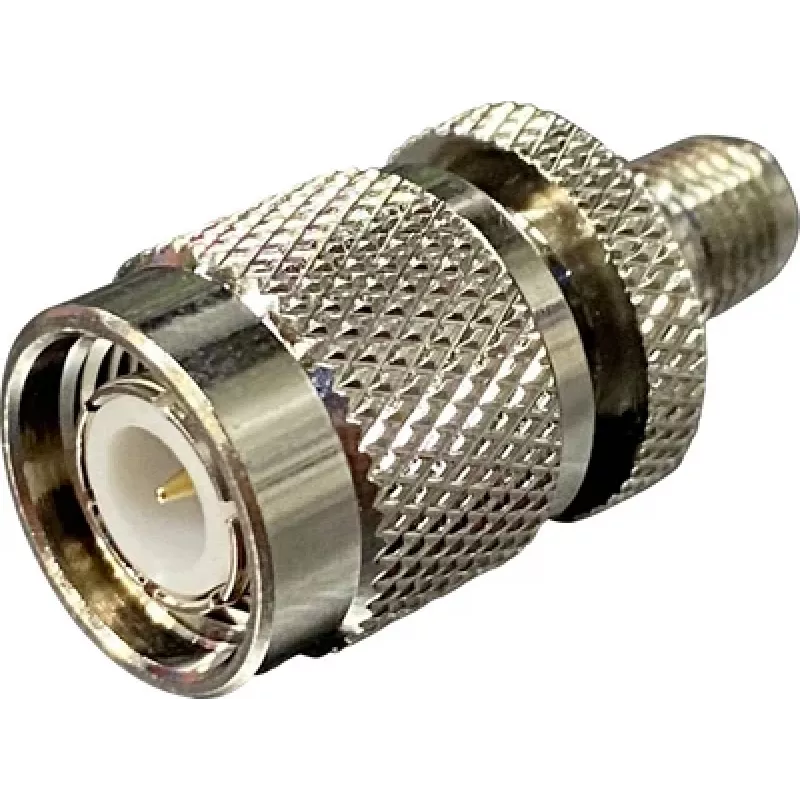

Wittenberg Antennen 102185 Adaptador metálico reto de ficha TNC para conector fêmea SMA

RF coaxial adapter with TNC male on one end and SMA female on the other, built for direct in-line connection in 50-ohm antenna and wireless systems. The straight metal body with nickel plating and gold-plated contacts ensures low signal loss up to 6 GHz.

Advantages

Solid brass construction with nickel plating resists corrosion and wear. PTFE insulation and gold-plated centre contacts maintain stable impedance and low VSWR across the frequency range.

Suitable for

• RF test and measurement setups
• Antenna feed lines and wireless communication equipment
• In-line adaptation between TNC and SMA interfaces

Key specifications

• Connector 1: TNC male
• Connector 2: SMA female
• Body style: straight
• Impedance: 50 Ω
• Frequency range: DC to 6 GHz
• VSWR: 1.2:1
• Body material: brass, nickel plated
• Contact plating: gold
• Insulator: PTFE
• Operating temperature: -40 °C to +85 °C
• Dielectric withstanding voltage: 1000 V RMS
• Insulation resistance: 5000 MΩ
• Durability: 500 mating cycles

Recommendations

For reliable RF connections where a TNC plug must be adapted to an SMA jack without changing cable orientation.
