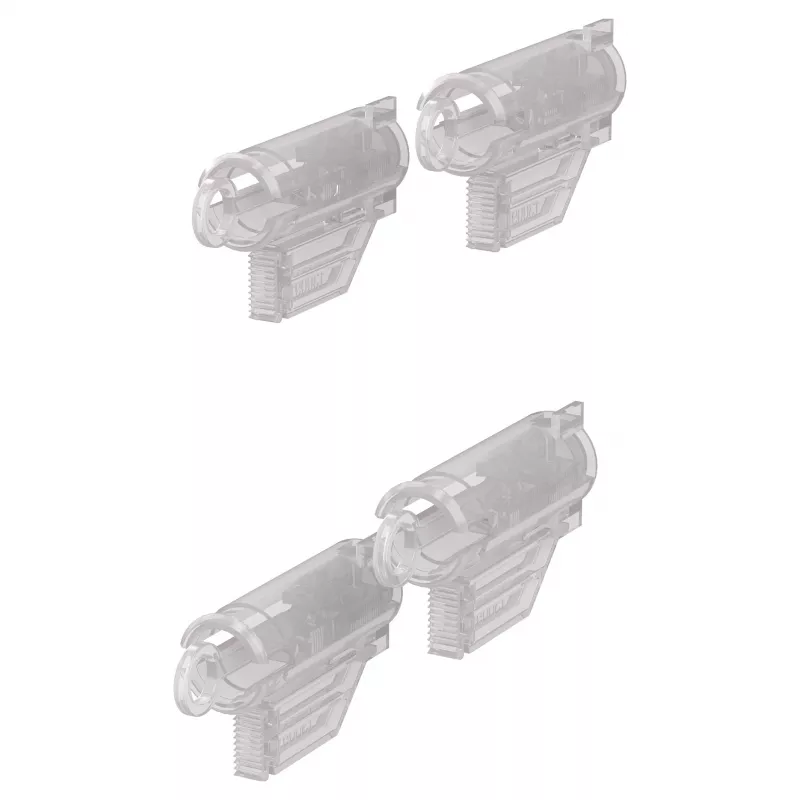

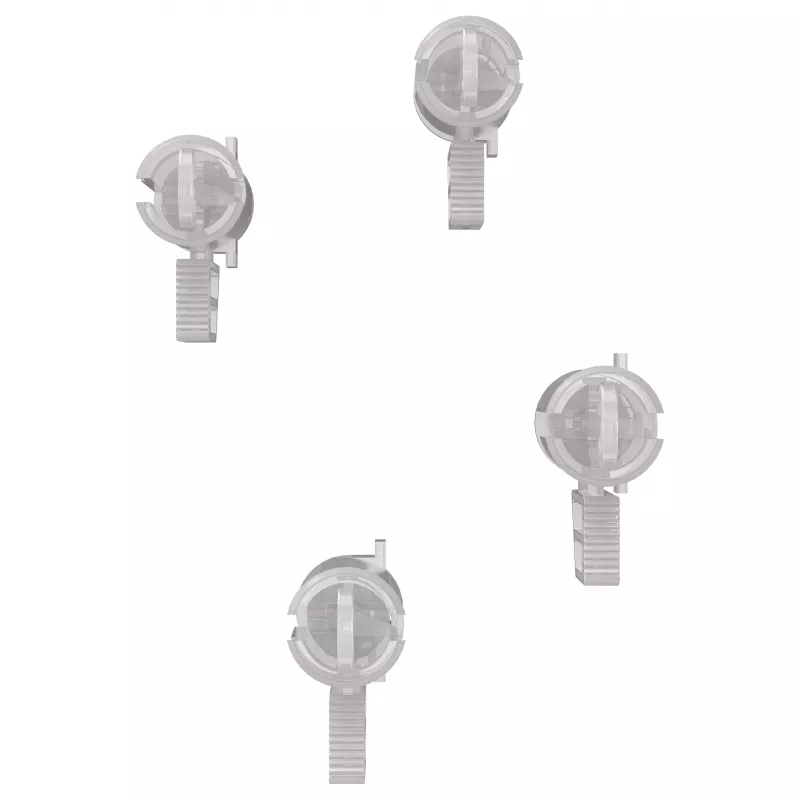

ABB 2CPX031434R9999 Conjunto de montagem em parede oca para caixa UK600, 3 filas, 36 unidades de módulo, branco (RAL 9010)

The ABB 2CPX031434R9999 Hollow Wall Set is a high-quality accessory designed for flush-mounting ABB UK600 enclosures in hollow walls. This set provides a professional and secure installation solution for residential, commercial, and light industrial applications. It supports up to 3 rows and 36 module units (PLE), making it suitable for a wide range of electrical distribution setups.

Advantages

Easy and secure flush-mounting in hollow walls; supports up to 36 module units for flexible configuration; halogen-free material ensures safety; complies with DIN VDE 0603-1 and DIN 43870-1 standards.

Suitable for

• Flush-mounting ABB UK600 enclosures in hollow walls
• Residential, commercial, and light industrial electrical installations
• Indoor environments with operating temperatures from -5 to +40 °C

Key specifications

• Accessory Type: Hollow Wall Set
• Compatible Enclosure Series: ABB UK600
• Number of Rows Supported: 3
• Module Units Supported (PLE): 36
• Ingress Protection (IP) Rating: IP30
• Mounting Type: Flush-mounted (for hollow walls)
• Material: High-quality plastic
• Color: White (RAL 9010)
• Recommended Wall Cutout: 595 x 320 x 90 mm (H x W x D)
• Operating Temperature Range: -5 to +40 °C
• Storage Temperature Range: -25 to +60 °C
• Halogen-free: Yes
• Glow Wire Test: 650 °C (IEC 60695-2-11)
• Standards Compliance: DIN VDE 0603-1, DIN 43870-1

Recommendations

Ensure the wall cutout dimensions match the recommended 595 x 320 x 90 mm for proper installation. This hollow wall set is designed for indoor use only.
