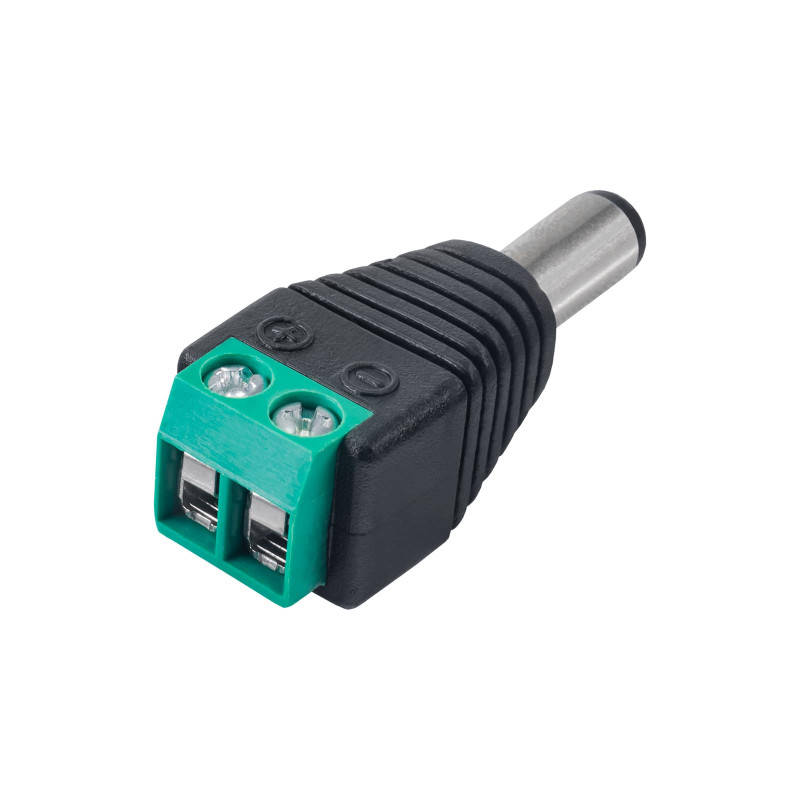

Akyga AK-SC-16 Ficha DC 5,5 x 2,1 mm com terminais de parafuso para cabo UTP, CCTV

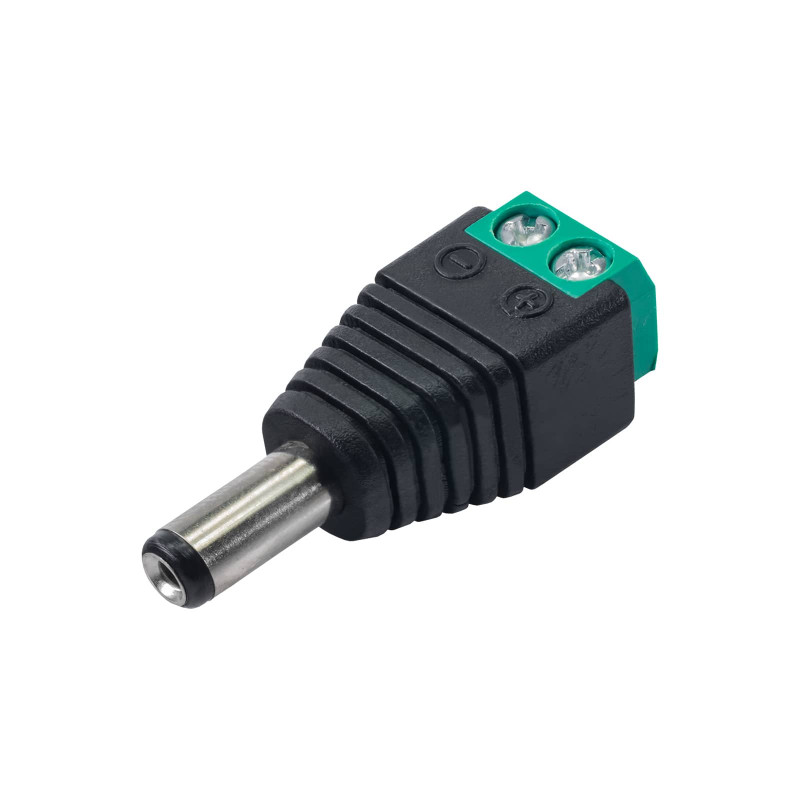

The Akyga AK-SC-16 is a quick coupler with a DC power plug measuring 5.5 mm x 2.1 mm and screw terminals, designed for quick and convenient connection of UTP cable. It allows extending a power cable without soldering. Insulated wires are placed in the terminals and tightened with a screwdriver; the screw connections are marked with "+" and "-" on the top of the insulating casing.

Key features

• Quick coupler with DC power plug 5.5 mm x 2.1 mm
• Screw terminals for UTP cable connection
• Enables power cable extension without soldering
• Polarity markings "+" and "-" on the insulating casing

Specifications

• Brand: Akyga
• MPN: AK-SC-16
• Product type: Connector
• Connector dimensions: 5.5 mm x 2.1 mm
• Product size (L x W x H): 40 x 13 x 13 mm
• Net weight: 10 g
