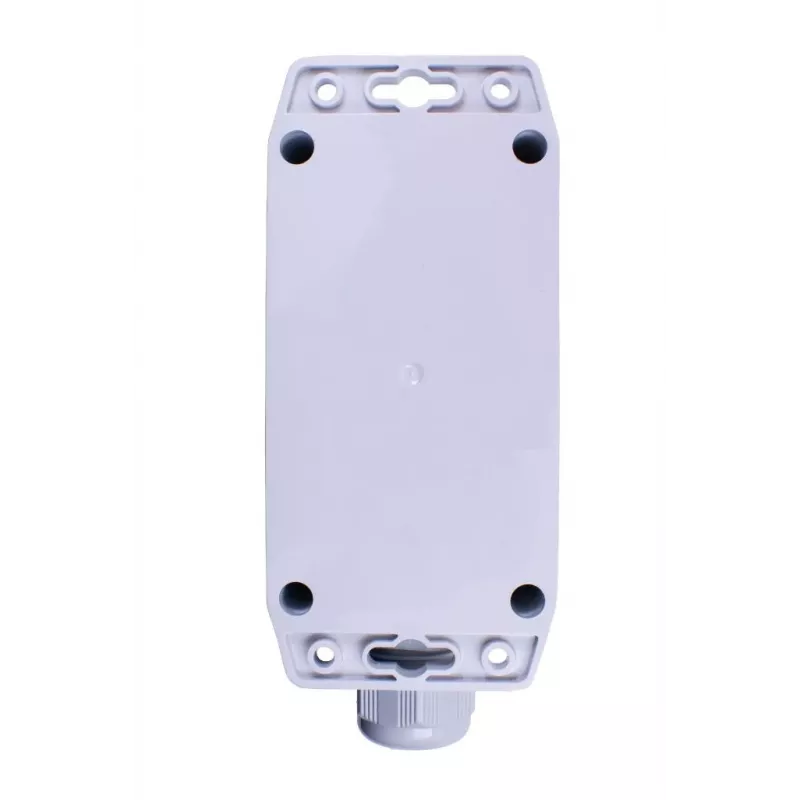

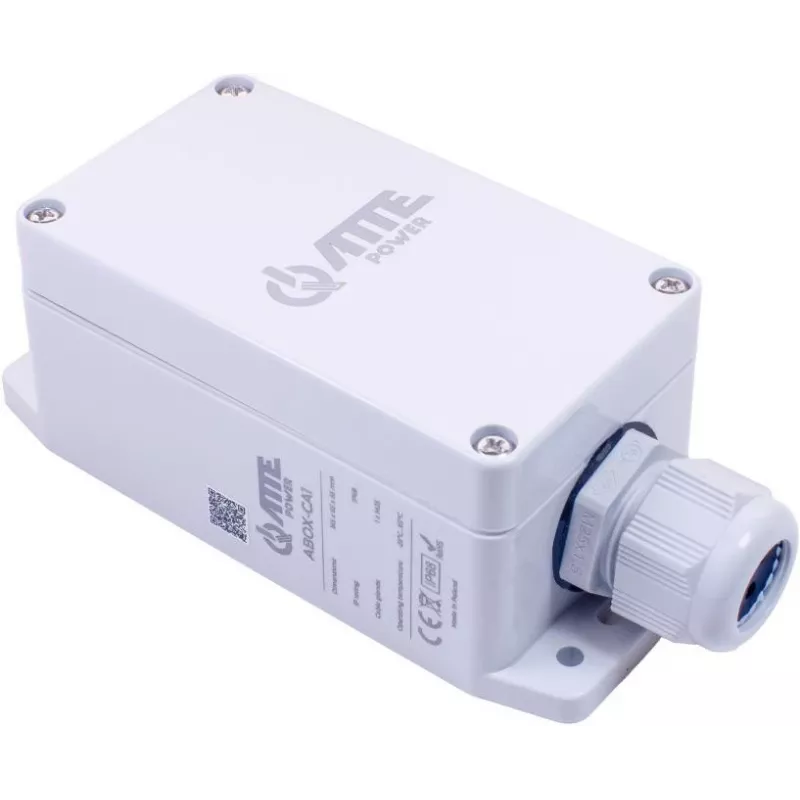

ATTE ABOX-CA1 Caixa de junção exterior IP68 IK08 ABS cinzento claro 120x120x58mm

The ATTE ABOX-CA1 is a robust outdoor junction box designed for demanding electrical, network, and industrial installations. With an IP68 rating and IK08 impact protection, it provides superior resistance against water, dust, and mechanical stress. Manufactured from high-quality ABS material in light gray (RAL 7035), this enclosure ensures long-lasting performance in harsh environments.

Advantages

This enclosure offers exceptional durability and protection, making it ideal for outdoor and industrial applications. Its UV-resistant and self-extinguishing material ensures safety and longevity. The screw-fastened opaque lid with four screws provides secure sealing, while the silicone gasket maintains IP68 integrity. Wall-mountable with external lugs, it supports up to four M20 cable glands for flexible wiring.

Suitable for

• Outdoor electrical junction boxes
• Network and data cable distribution
• Industrial control and automation enclosures
• Security and surveillance system connections
• Telecommunications infrastructure

Key specifications

• Ingress Protection: IP68
• Impact Protection: IK08
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Color: Light Gray (RAL 7035)
• External Dimensions (L x W x H): 120 x 120 x 58 mm
• Internal Dimensions (L x W x H): 110 x 110 x 50 mm
• Lid Type: Opaque, screw-fastened with 4 screws
• Operating Temperature: -25°C to +70°C
• UV Resistance: Yes
• Flame Retardancy: Self-extinguishing
• Mounting: Wall-mountable with external lugs
• Cable Gland Capacity: Up to 4 x M20
• Gasket Material: Silicone
• Certifications: CE, RoHS

Recommendations

For optimal performance, use appropriate cable glands and ensure proper sealing. Suitable for outdoor installations where protection against water and dust is critical. Always follow local electrical codes and regulations.
