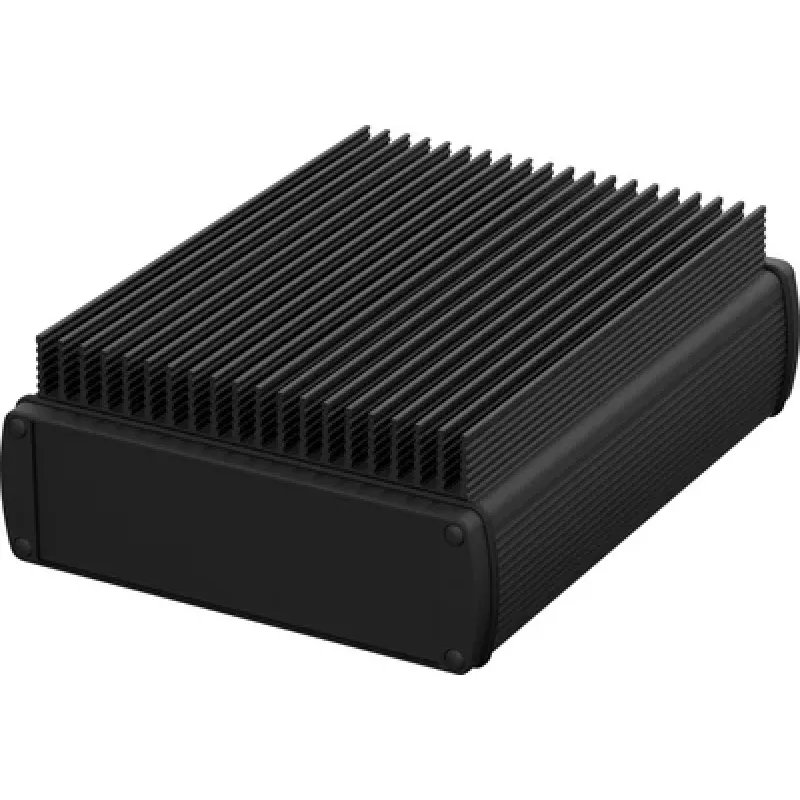

Bopla ALUBOS_SET ABPH 1600-0200 K caixa de perfil de alumínio 169 x 200 x 52 mm preto RAL 9005 84516200.HMT1

Industrial electronics designers and system integrators use the Bopla ALUBOS_SET ABPH 1600-0200 K to house control systems, measurement devices and general-purpose electronics. The enclosure combines an extruded aluminium profile with two end caps and fastening screws, ready for assembly.

Key specifications

• External dimensions: 169 mm width, 200 mm length, 52 mm height
• Material: Aluminium, powder-coated
• Colour: Black, RAL 9005
• Series: ALUBOS_SET
• Enclosure type: Profile enclosure
• Mounting: Internal grooves for PCB or component mounting
• Included components: Enclosure profile, 2 end caps, fastening screws

Why choose it

The aluminium construction provides robust mechanical protection and effective heat dissipation for enclosed electronics. Internal grooves allow flexible mounting of PCBs and components without additional brackets. The black powder-coated finish is durable and suitable for industrial environments.

Ideal use cases

• Industrial control units
• Measurement and instrumentation devices
• General-purpose electronics housing
• Prototyping and small series production

Good to know

One enclosure per pack. The ALUBOS_SET series offers a modular approach, enabling quick assembly and integration into larger systems.
