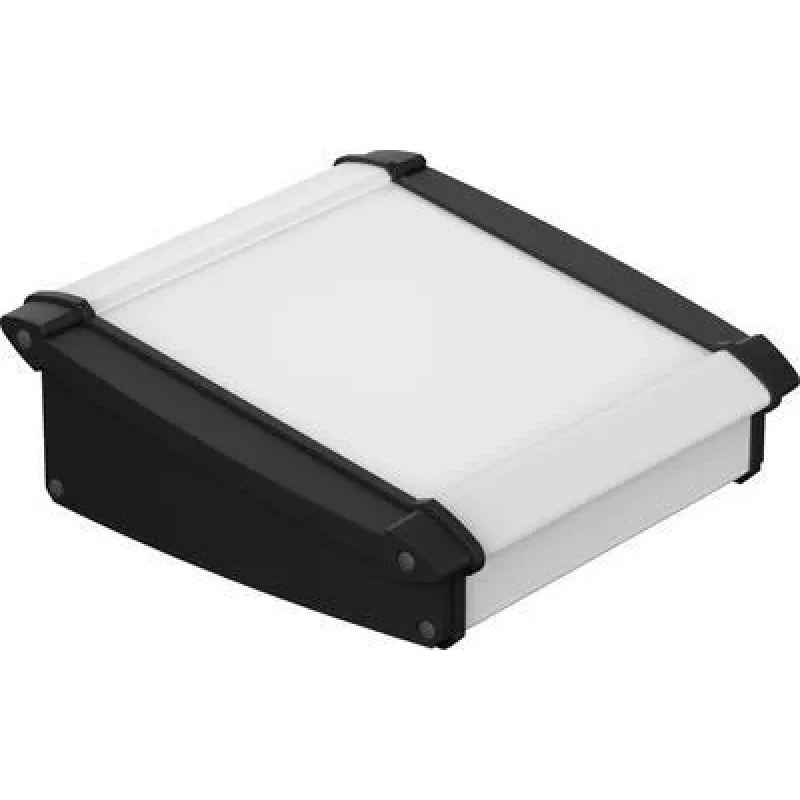

Bopla ATPH 1865-0150 ALU-TOPLINE_SET 92865150.HMT1 caixa de perfil 181,2 x 150 x 68,2 mm alumínio natural

Profile enclosure from the ALU-TOPLINE series, constructed from natural anodized aluminium. This enclosure offers a robust and modular housing solution for industrial electronics and control systems, with external dimensions of 181.2 x 150 x 68.2 mm and integrated grooves for PCB mounting.

Advantages

Natural anodized aluminium provides durability and a professional appearance. The modular design includes two die-cast end covers and EPDM gaskets, ensuring a secure fit. Integrated grooves simplify PCB installation, and the enclosure supports wall mounting or desktop use.

Suitable for

• Industrial electronics
• Control systems
• Measurement technology
• Network technology

Key specifications

• Material: Aluminium, natural anodized
• External dimensions: 181.2 mm (L) x 150 mm (W) x 68.2 mm (H)
• Profile wall thickness: 2.5 mm
• Operating temperature range: -40 °C to +80 °C
• Included components: Aluminium profile, 2 die-cast end covers, 2 EPDM gaskets, fixing screws

Recommendations

Choose this enclosure for applications requiring a sturdy, modular housing with easy PCB integration and flexible mounting options.
