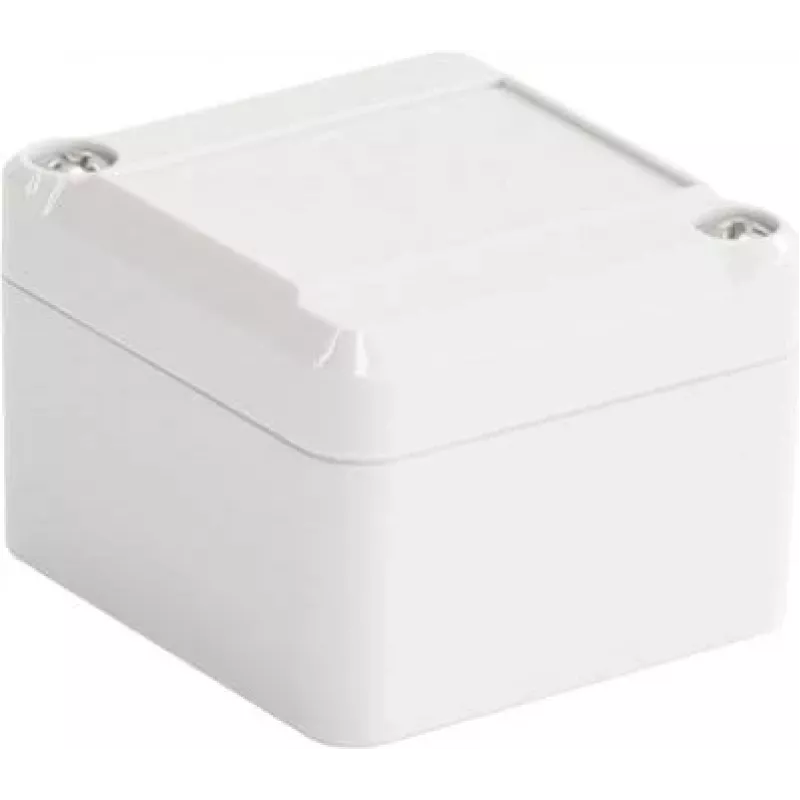

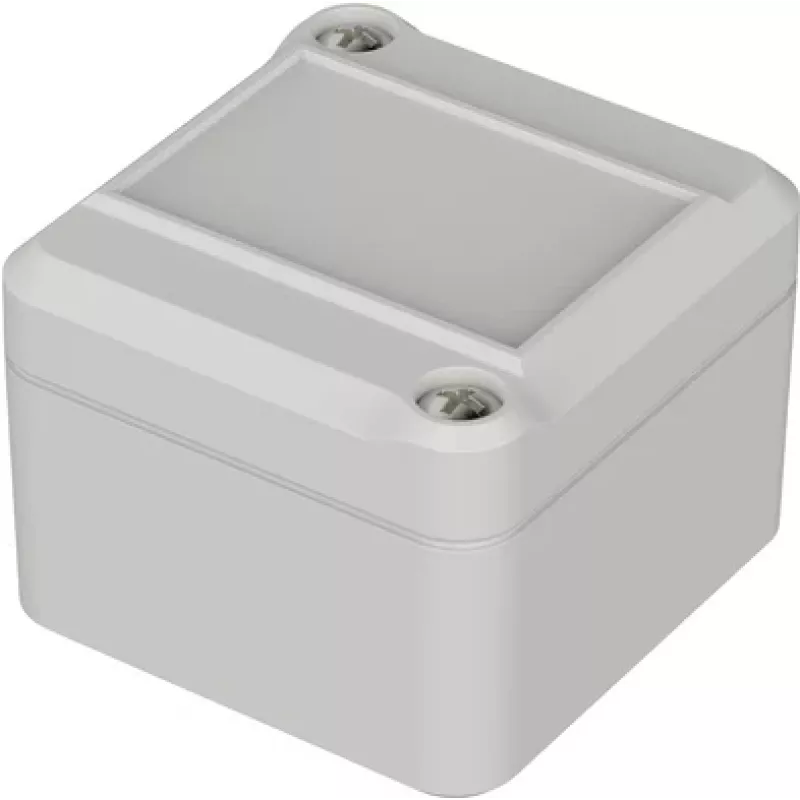

Bopla EUROMAS EM 205 F caixa universal, 52 x 50 x 37 mm, policarbonato, cinzento-claro 62205200

The Bopla EUROMAS EM 205 F stands out with its compact 52 x 50 x 37 mm footprint and rugged polycarbonate construction, offering a reliable housing for small electronic assemblies where space is at a premium. Unlike generic plastic boxes, this enclosure is built for demanding environments, combining high impact resistance with a secure screw-on lid.

Highlights

• Made from UV-stabilized, halogen-free polycarbonate (UL 94 V-0) for durability and safety
• Compact size: 52 mm length, 50 mm width, 37 mm height
• Light grey (RAL 7035) finish blends into industrial settings
• Stainless steel lid screws and PUR gasket ensure a tight, reliable seal
• Internal mounting bosses simplify PCB and component installation

In daily use

The EM 205 F is a practical choice for housing sensors, controllers, or IoT modules. Its polycarbonate body withstands knocks and harsh chemicals, while the light grey colour keeps a professional appearance. The included stainless steel screws allow repeated opening and closing without corrosion, and the polyurethane gasket maintains a consistent seal over time.

Full specifications

• Product type: Universal enclosure
• Series: EUROMAS
• External dimensions (L x W x H): 52 x 50 x 37 mm
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PUR)
• Mounting options: Internal mounting bosses for PCBs/components, optional wall mounting
• UV resistance: Yes (UV stabilized material)
• Halogen-free: Yes
• Operating temperature range: -40°C to +80°C
• Impact resistance: IK07
• Flammability rating: UL 94 V-0
• Protection class: IP65

Final note

With its robust build and thoughtful design, the Bopla EUROMAS EM 205 F is a dependable enclosure for industrial electronics that must endure tough conditions.
