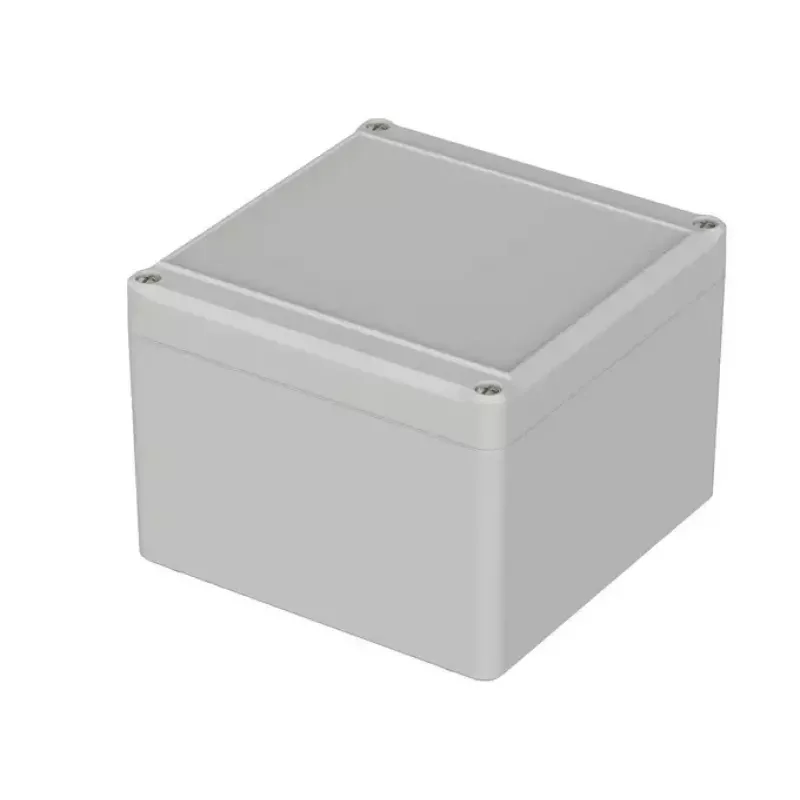

Bopla EUROMAS ET 227 F caixa universal 122 x 120 x 87 mm, cinzento-claro ABS, IP65 63227200

The EUROMAS ET 227 F from Bopla is a universal enclosure with external dimensions of 122 x 120 x 87 mm, made from light grey ABS (RAL 7035). Its screw-on lid with stainless steel screws and integrated PUR gasket provides reliable sealing for demanding environments.

Highlights

• Light grey ABS housing, halogen-free and RoHS compliant
• External dimensions: 122 mm length, 120 mm width, 87 mm height
• Integrated screw bosses for mounting PCBs or plates
• Stainless steel lid screws (V2A) and polyurethane gasket

In daily use

The enclosure offers ample space for electronics and is suitable for a wide operating temperature range from -40 °C to +80 °C. Its impact resistance of IK07 and flammability rating UL 94 HB make it a robust choice for industrial applications.

Full specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External dimensions: 122 x 120 x 87 mm
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 HB
• Operating temperature: -40 °C to +80 °C
• Lid fastening: Stainless steel screws (V2A)
• Gasket material: Polyurethane (PUR)
• Internal mounting: Integrated screw bosses
• Lid type: Screw-on lid
• RoHS compliance: Yes
• Halogen-free: Yes

Final note

The EUROMAS ET 227 F combines a compact footprint with a high level of protection, making it suitable for a variety of enclosure applications.
