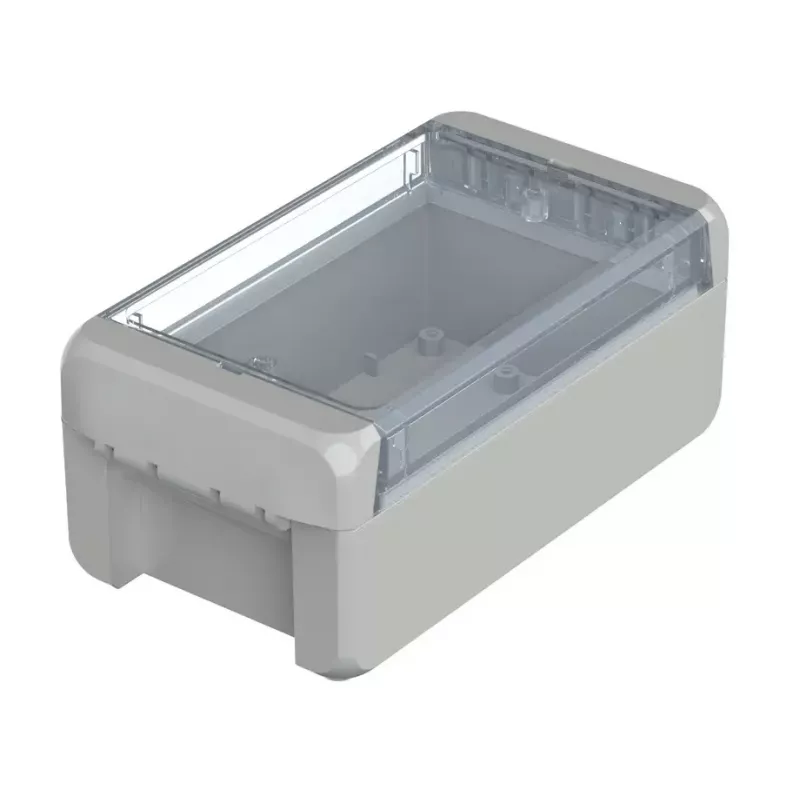

BOPLA Euromas II Caixa de parede, policarbonato, cinzento-claro (RAL 7035), 60 x 80 x 151 mm, IP65, IK07 96023125

Install the BOPLA Euromas II enclosure on a wall in an industrial control cabinet or on a machine frame to protect sensitive electronics from dust, water jets and mechanical impact. The light grey (RAL 7035) polycarbonate housing measures 60 x 80 x 151 mm and offers a clean, professional look for your control systems, measurement technology or industrial electronics.

Key specifications

• Material: Polycarbonate
• Colour: Light Grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Operating temperature range: -40 °C to +80 °C
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PU)
• Flammability rating: UL 94 V-2
• Mounting type: Wall-mount (via mounting holes or external brackets)
• Internal mounting: Mounting bosses for PCBs/mounting plates
• Series: Euromas II
• Halogen-free: Yes
• UV resistance: Good
• RoHS compliant: Yes

Why choose it

The enclosure combines a robust polycarbonate body with a secure screw-on lid and a polyurethane gasket to keep out moisture and dust. Its light grey colour blends into most industrial environments, and the halogen-free material meets modern environmental requirements.

Ideal use cases

• Industrial control systems
• Measurement and monitoring devices
• Machine-mounted electronics
• Outdoor installations with UV exposure

Good to know

The Euromas II series is designed for easy wall mounting and provides internal bosses for secure PCB or mounting plate installation. The enclosure is suitable for a wide temperature range, making it reliable in both cold and hot environments.
