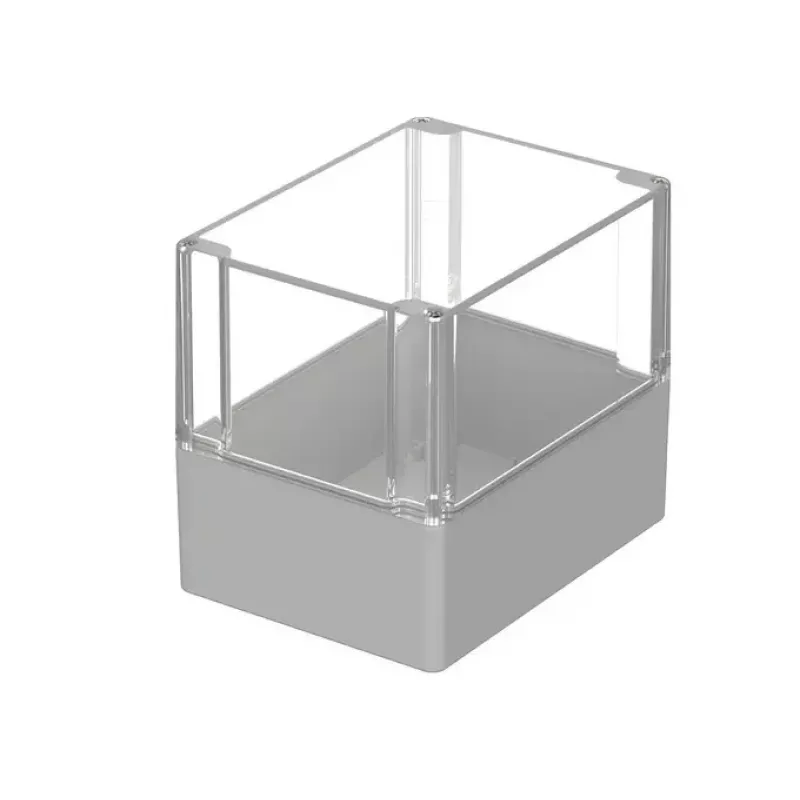

Bopla EUROMAS M 246 G caixa universal 160 x 120 x 140 mm policarbonato cinzento-claro 02246100

Universal enclosure crafted from polycarbonate in light grey (RAL 7035), offering a robust housing for electrical and electronic components. External dimensions of 160 x 120 x 140 mm provide ample space for DIN rail mounted devices, terminal blocks, and custom PCB assemblies.

Advantages

The polycarbonate body delivers high impact resistance (IK07) and a wide operating temperature range from -40 °C to +100 °C. The screwed lid with stainless steel V2A screws and a polyurethane gasket ensures a reliable seal, making the enclosure suitable for demanding industrial environments. Internal mounting bosses simplify component installation.

Suitable for

• Industrial control units and automation systems
• Electrical junction boxes and distribution boards
• Protection of sensitive electronics in harsh conditions

Key specifications

• Material: Polycarbonate (PC)
• Colour: Light Grey (RAL 7035)
• External dimensions: 160 mm (L) x 120 mm (W) x 140 mm (H)
• Lid fastening: Screwed, stainless steel V2A screws
• Gasket material: Polyurethane (PUR)
• Impact resistance: IK07
• Temperature range: -40 °C to +100 °C
• Flammability rating: UL 94 V-2

Recommendations

Ideal for engineers and panel builders seeking a durable, UV-resistant enclosure for indoor and outdoor applications. Pair with Bopla mounting accessories for wall installation.
