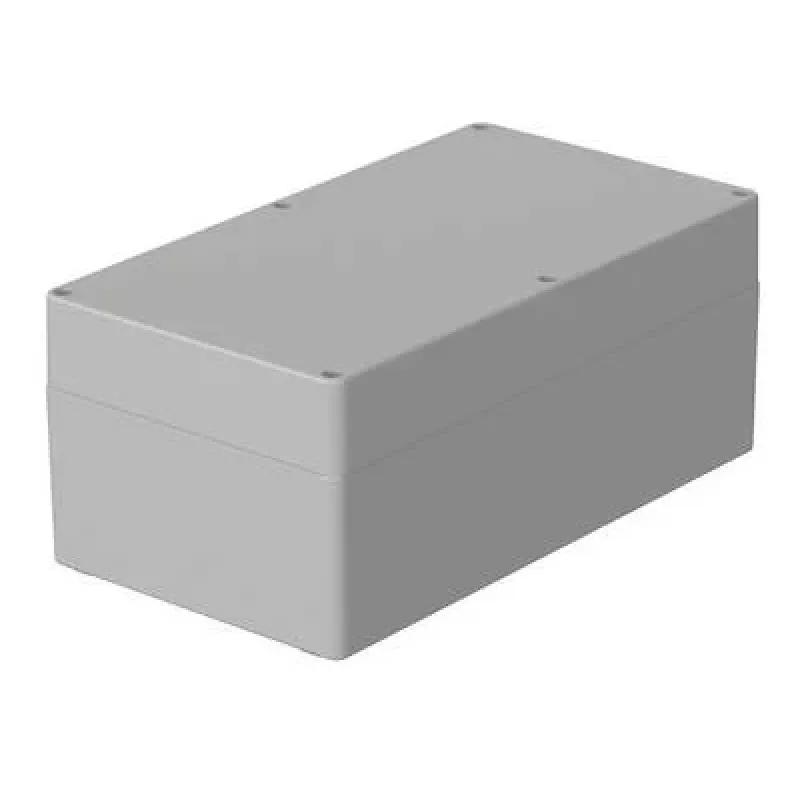

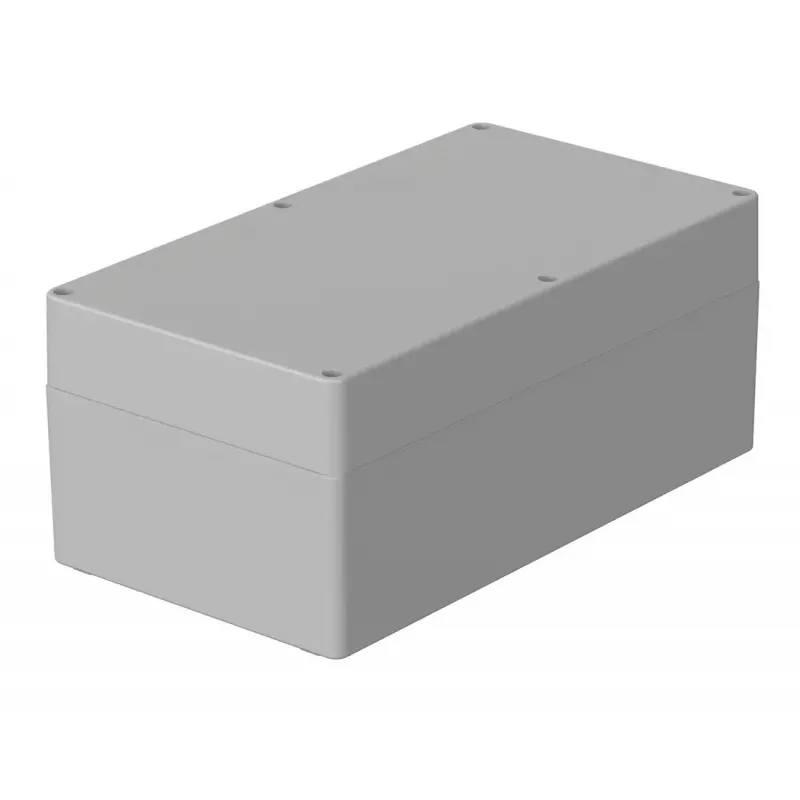

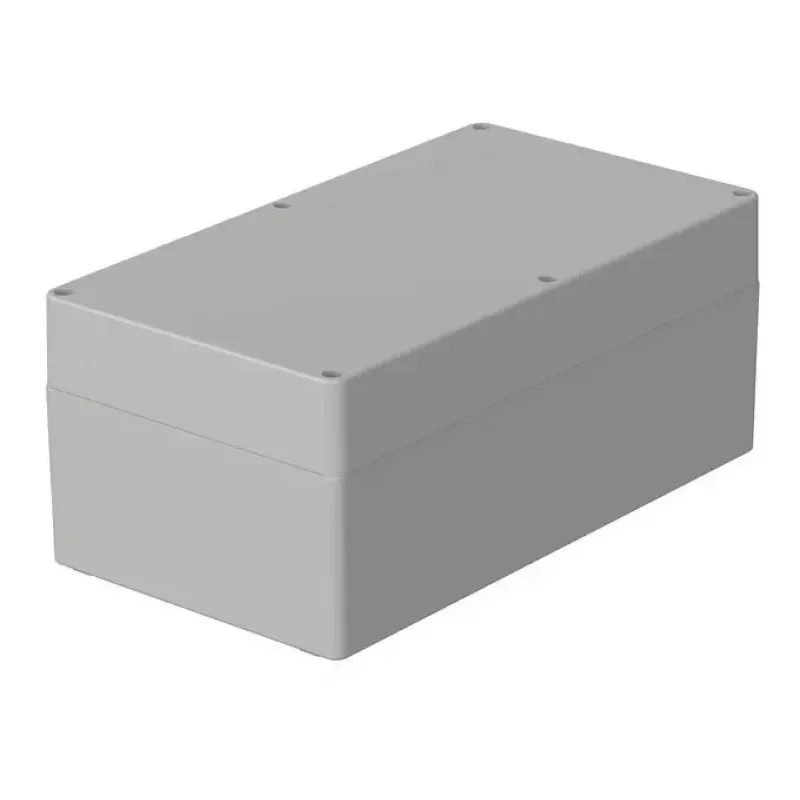

Bopla EUROMAS T 255 caixa universal 360 x 200 x 150 mm ABS cinzento-claro IP65 03255000

The EUROMAS T 255 stands out among universal enclosures with its generous 360 x 200 x 150 mm footprint and recessed lid, ready to accept membrane keypads or custom front panels without extra machining. Its light grey ABS body keeps weight low while the PUR gasket and four stainless steel lid screws maintain a clean, serviceable seal.

Highlights

• External dimensions: 360 mm length, 200 mm width, 150 mm height
• ABS housing in light grey (RAL 7035), halogen-free
• Recessed lid for membrane keypads or front panels
• Integrated mounting bosses for DIN rails or mounting plates
• Polyurethane gasket and stainless steel lid screws

In daily use

This enclosure suits industrial electronics, control systems, and measurement technology where a mid-size, wall-mount housing is required. The ABS material is impact resistant (IK07) and operates from -40 °C to +80 °C, while the IP65 rating protects against dust and water jets. The four stainless steel screws allow repeated access without corrosion concerns.

Full specifications

• Product type: Universal enclosure
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 360 x 200 x 150 mm
• Protection class: IP65
• Impact resistance: IK07
• Operating temperature: -40 °C to +80 °C
• Flammability rating: UL 94 HB
• Gasket material: Polyurethane (PUR)
• Lid screws: 4x stainless steel (1.4567)
• Internal mounting: Integrated bosses for DIN rails or mounting plates
• Design: Recessed lid for membrane keypads or front panels
• Halogen-free: Yes

Final note

A practical, roomy enclosure for projects that need a professional look and reliable protection without the weight of metal.
