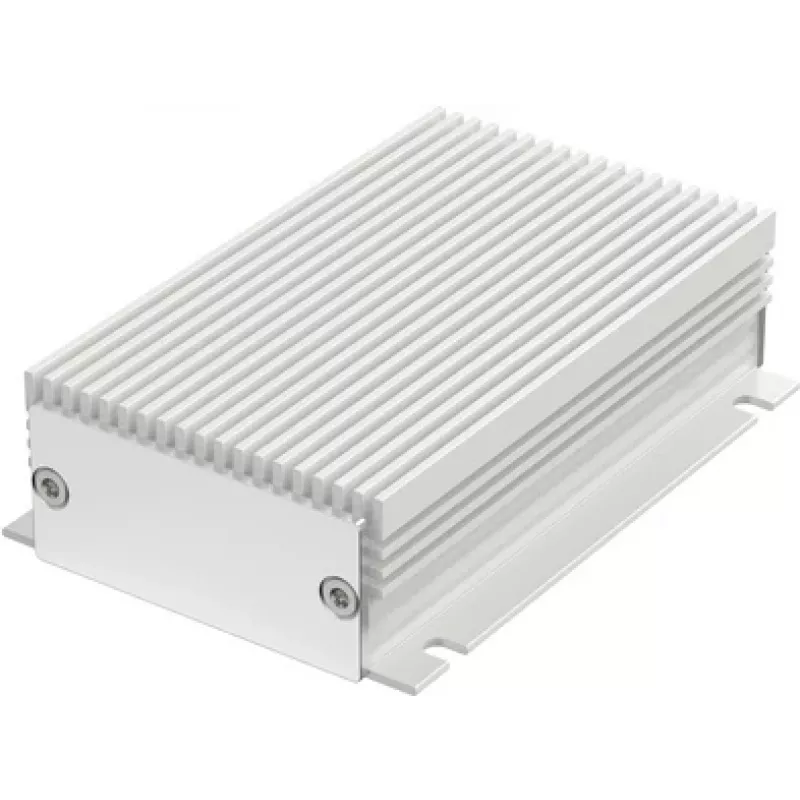

Bopla FILOTEC F 524-100 KWL caixa de perfil de alumínio 55,3 x 24,4 x 100 mm, anodizado 97453100.H

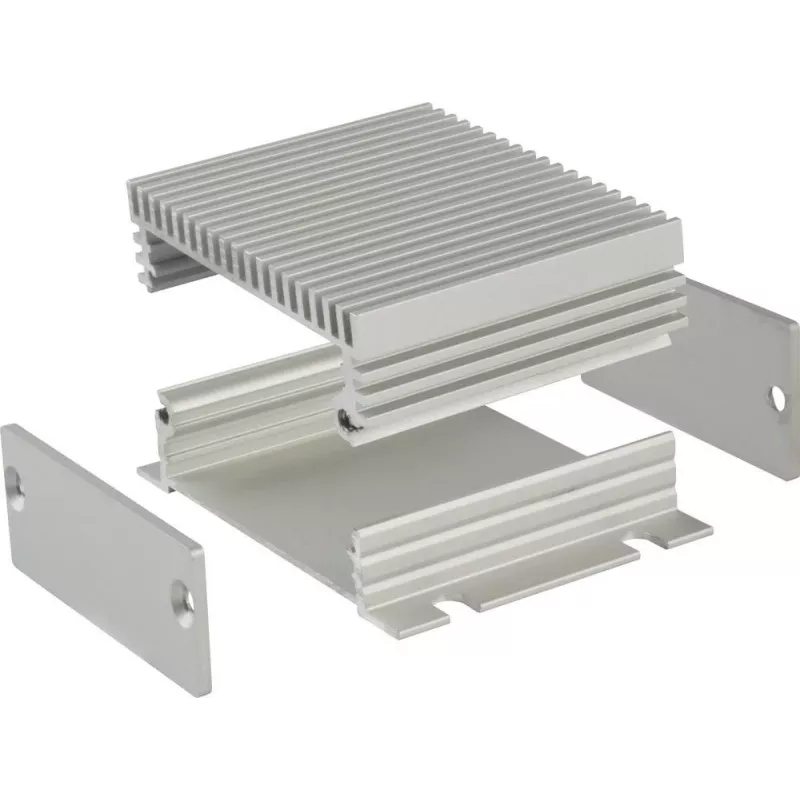

Aluminium profile enclosure with integrated PCB guide grooves, offering a robust housing for electronic components. The extruded aluminium body provides excellent mechanical stability and effective heat dissipation, while the anodized surface enhances corrosion resistance and gives a professional appearance. This enclosure is part of the FILOTEC series, designed for modular assembly with compatible end caps and accessories (sold separately).

Advantages

The extruded aluminium construction ensures high dimensional accuracy and allows for easy integration of PCBs. Integrated guide grooves enable secure and precise PCB mounting without additional hardware. The anodized finish protects against wear and environmental influences, extending the service life of the enclosure.

Suitable for

• Electronic device housings
• Industrial control units
• Sensor and measurement technology
• Prototyping and small series production

Key specifications

• External dimensions: 55.3 mm width, 24.4 mm height, 100 mm length
• Internal dimensions: 51.3 mm width, 20.4 mm height
• Material: Aluminium, anodized
• Series: FILOTEC
• Protection class: IP40
• Mounting: Screw (end caps not included)

Recommendations

Combine this profile enclosure with Bopla FILOTEC end caps and accessories to create a complete, application-ready housing. The modular design allows for flexible configuration to meet specific requirements.
