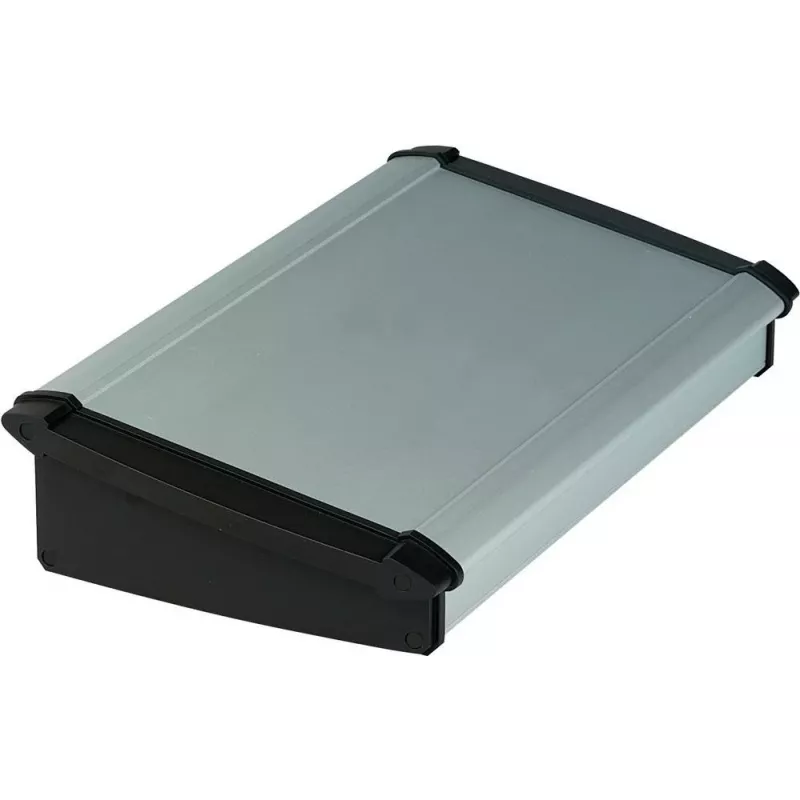

Bopla TOPLINE ATPH 1850-250 caixa de consola, 250 x 181 x 53 mm, alumínio fundido, cinzento grafite (RAL 7024) 92850250.MT1

Control panel designers and instrumentation engineers can house their electronics in this robust desktop console enclosure. The sloped profile provides a comfortable viewing and operating angle for displays, buttons, and controls.

Key specifications

• External dimensions: 250 x 181 x 53 mm
• Material: Die-cast aluminium, powder-coated
• Colour: Graphite grey (RAL 7024)
• Protection class: IP54
• Two-part construction with screw-fixed base and lid
• Internal mounting bosses for PCB assembly

Why choose it

The die-cast aluminium body offers excellent mechanical stability and EMI shielding. The powder-coated finish resists scratches and corrosion, while the IP54 rating protects against dust and water splashes. The console design with integrated mounting bosses simplifies assembly of control electronics.

Ideal use cases

• Industrial control panels
• Desktop measurement instruments
• Test and laboratory equipment
• Human-machine interface (HMI) housings

Good to know

Supplied as a single unit. The enclosure is part of the Bopla TOPLINE series, designed for professional electronics packaging.
