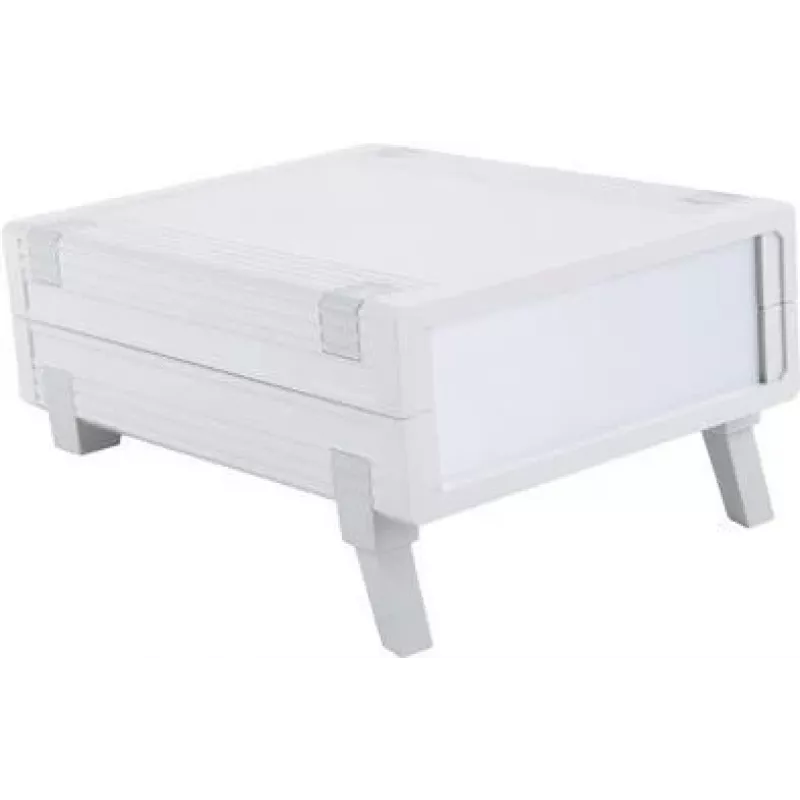

Bopla UM 32009 SET Caixa de consola 157,5 x 198,9 x 62,2 mm ABS cinzento-claro RAL 7035 55320000.MT10

Ergonomic sloping front panel console enclosure in light grey ABS (RAL 7035), part of the Bopla UM series, with external dimensions 157.5 x 198.9 x 62.2 mm and IP40 protection.

Overview

The Bopla UM 32009 SET is a desktop console enclosure crafted from ABS plastic in light grey (RAL 7035). It features a sloping front panel for comfortable operation of controls and displays. The enclosure is secured with screws and includes integrated bosses for mounting PCBs or components. Designed for control panels, measurement devices, desktop electronics, and IoT applications.

What stands out

• Ergonomic sloping front panel
• Light grey ABS housing (RAL 7035)
• IP40 protection rating
• UL 94 HB flammability rating
• Operating temperature range -20°C to +80°C
• Screw-on lid for secure closure

Technical details

• Enclosure type: Console / Desk Enclosure
• Material: ABS
• Colour: Light Grey (RAL 7035)
• External dimensions: 157.5 mm (W) x 198.9 mm (D) x 62.2 mm (H)
• Mounting type: Desktop / Surface
• Lid fastening: Screw-on
• Internal mounting: Integrated bosses for PCB/component mounting
• Protection class: IP40 (IEC 60529)
• Flammability rating: UL 94 HB
• Operating temperature range: -20°C to +80°C
• Included components: Enclosure base, lid, fastening screws
• Manufacturer series: Bopla UM Series
• Surface finish: Smooth

Our verdict

A reliable and ergonomic enclosure for desktop electronics, offering solid protection and convenient mounting features.
