Borne de passagem WAGO cinzento 0,08-2,5 mm² 280-833

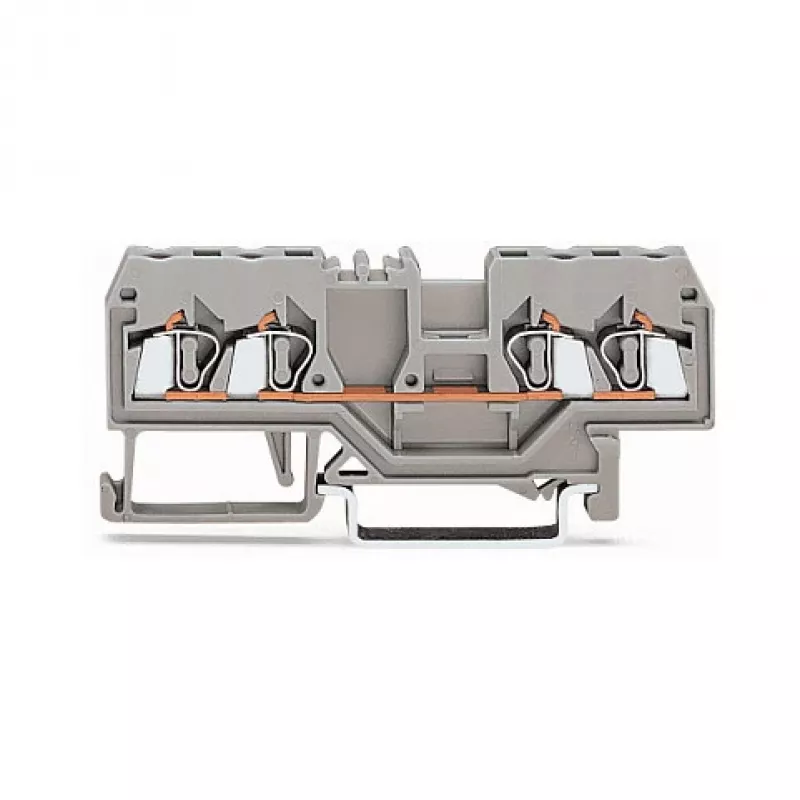

The WAGO 280-833 Through Terminal Block is a high-quality, compact DIN-rail mounted terminal block from the TOPJOB S 280 Series. Designed for reliable and maintenance-free wiring, it features the innovative CAGE CLAMP® Push-in connection technology for fast and secure conductor termination. This grey terminal block accommodates solid and fine-stranded conductors from 0.08 to 2.5 mm² (28-12 AWG) and is rated for 800 V and 24 A. Ideal for industrial control cabinets, building automation, and electrical installations, it offers a front-entry wiring design with a stripping length of 9-11 mm. The insulation material is polyamide (PA) with a flammability rating of UL94 V0, ensuring high safety standards. With 3 conductors and 1 potential, this through terminal block provides a simple and efficient solution for connecting and distributing electrical signals.

Advantages

• CAGE CLAMP® Push-in connection for tool-free, vibration-proof wiring
• Compact design saves space on DIN-35 rail
• Clear marking and color coding for easy identification
• High reliability and low maintenance

Suitable for

• Industrial control panels
• Building automation systems
• Electrical distribution and junction boxes
• Machine and plant engineering

Key specifications

• Connection Technology: CAGE CLAMP® Push-in
• Number of Conductors: 3
• Number of Potentials: 1
• Nominal Cross-Section: 2.5 mm²
• Solid Conductor Size: 0.08 - 2.5 mm² (28 - 12 AWG)
• Fine-Stranded Conductor Size: 0.08 - 2.5 mm² (28 - 12 AWG)
• Nominal Voltage (EN): 800 V
• Rated Surge Voltage (EN): 8 kV
• Nominal Current (EN): 24 A
• Mounting Type: DIN-35 Rail
• Color: Grey
• Insulation Material: Polyamide (PA)
• Stripping Length: 9 - 11 mm (0.35 - 0.43 inch)
• Wiring Type: Front-entry wiring
• Pollution Degree: 3
• Flammability Rating: UL94 V0
• Series: TOPJOB S 280 Series

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length and conductor insertion for secure connections.
