Borne push-in CAGE CLAMP WAGO 224-101 de 1 condutor dupla, 400 V, 24 A, 0,5-2,5 mm², transparente/cinzento

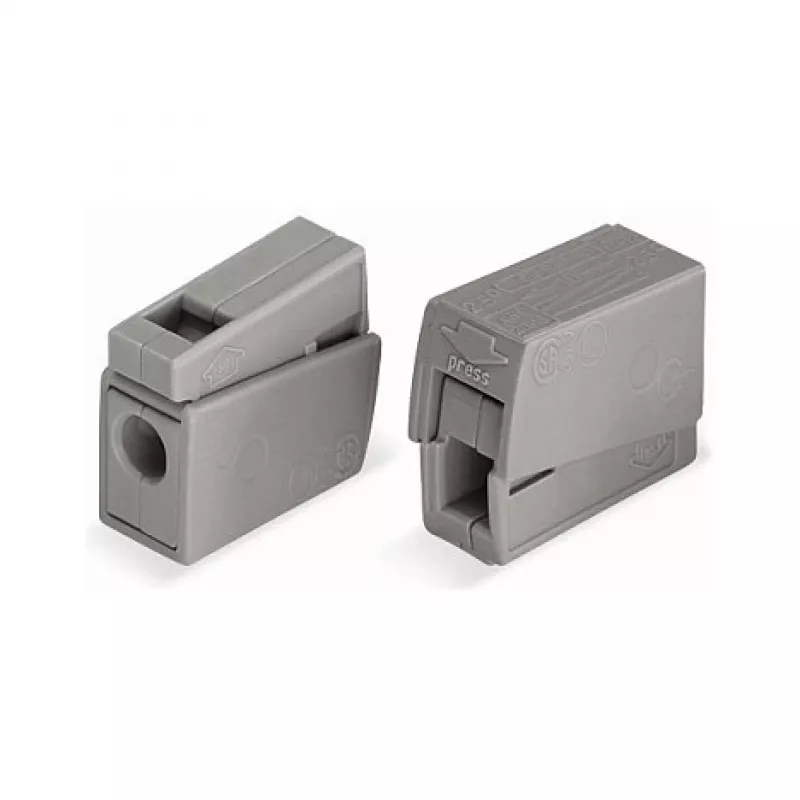

The WAGO 224-101 is a compact 1-conductor, 2-way push-in CAGE CLAMP terminal block designed for reliable and tool-free wiring in lighting and luminaire applications. With a rated voltage of 400 V and current of 24 A, it accommodates solid and fine-stranded conductors from 0.5 to 2.5 mm² (20-14 AWG). Its transparent/grey polycarbonate housing provides clear visual inspection of connections, while the chrome-nickel spring steel contact ensures long-term electrical performance.

Advantages

Tool-free push-in connection saves installation time; compact design for space-constrained applications; high-quality materials ensure durability and safety; transparent housing allows easy inspection of conductor insertion.

Suitable for

• Lighting and luminaire wiring
• Control cabinets and junction boxes
• General electrical installations requiring reliable push-in connections

Key specifications

• Number of Conductors: 1
• Number of Clamping Units: 2
• Connection Technology: Push-in CAGE CLAMP
• Rated Voltage (EN): 400 V
• Rated Current (EN): 24 A
• Rated Impulse Voltage: 4 kV
• Conductor Size (Solid): 0.5 - 2.5 mm² (20 - 14 AWG)
• Conductor Size (Fine-Stranded): 0.5 - 2.5 mm² (20 - 14 AWG)
• Stripping Length: 9 - 11 mm
• Color: Transparent / Grey
• Housing Material: Polycarbonate (PC)
• Contact Material: Chrome-nickel spring steel (CrNi)
• Flammability Class (UL94): V2
• Operating Temperature: -35 °C to +105 °C
• Pollution Degree: 2
• Mounting Type: Free Wiring
• Approvals: ENEC, UL, CSA

Recommendations

For optimal performance, use with WAGO operating tools and ensure proper stripping length. Suitable for solid and fine-stranded conductors only; not recommended for flexible conductors without ferrule.
