Caixa de cabos Axis 02336-001

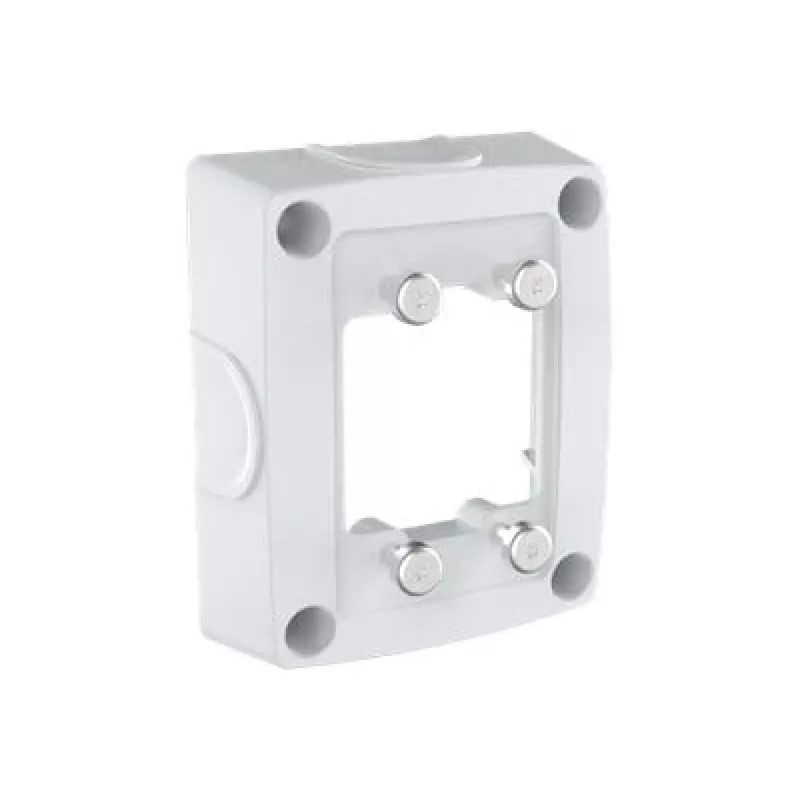

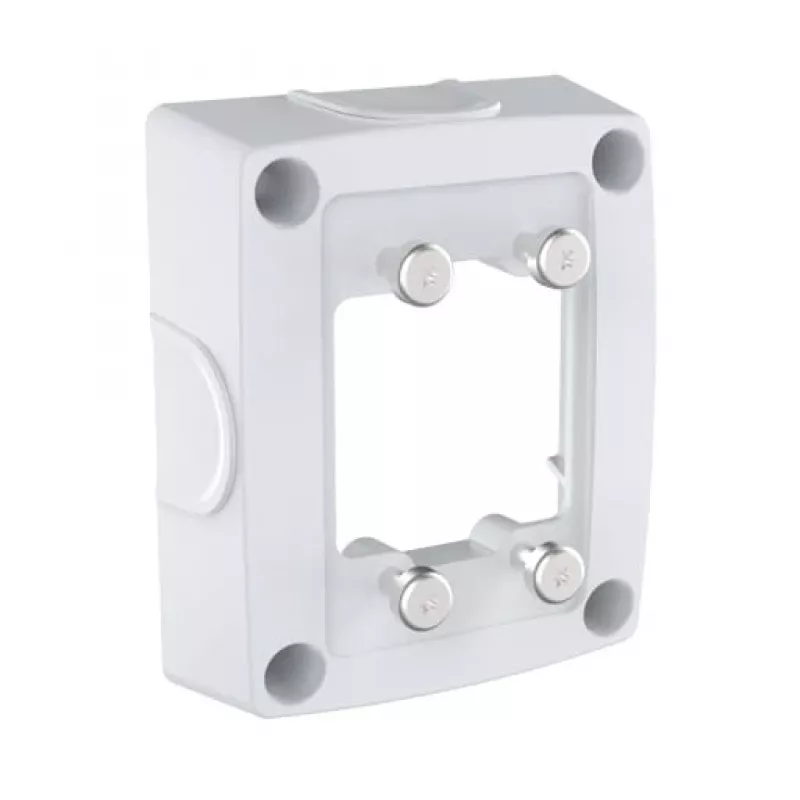

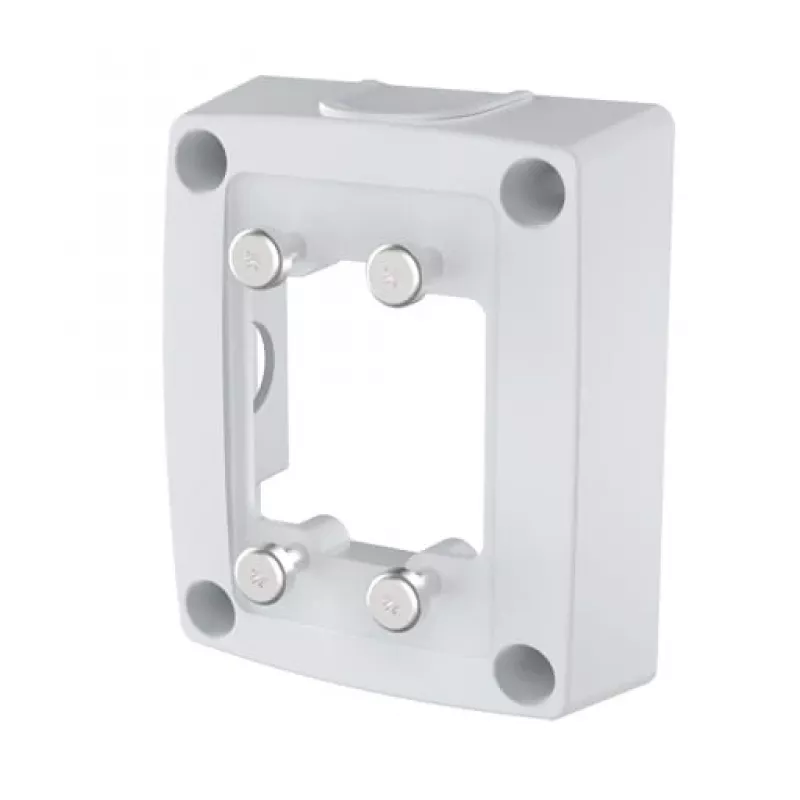

AXIS TQ1601-E Conduit Back Box is an aluminum mounting box with a corrosion-reducing coating. It is designed to simplify conduit installations and cable protection for Axis camera wall mounts, offering multiple entry points and compatibility with common conduit sizes and adapters.

Advantages

The aluminium construction with protective coating reduces corrosion risk, while long screws with a washer help dissipate vibrations. Multiple conduit entries on the top, bottom and side make routing cables flexible and installation faster. The unit is compatible with AXIS T94Q01A Wall Mount and can cover a single gang junction box when required.

Key specifications

• Material: aluminium with anti-corrosion coating
• Conduit entry locations: top, bottom and side
• Compatible conduit sizes: 3/4" and M25 cable protection products
• Compatible with: AXIS Conduit Interface (ACI) adapter range (NPS/U-shape)

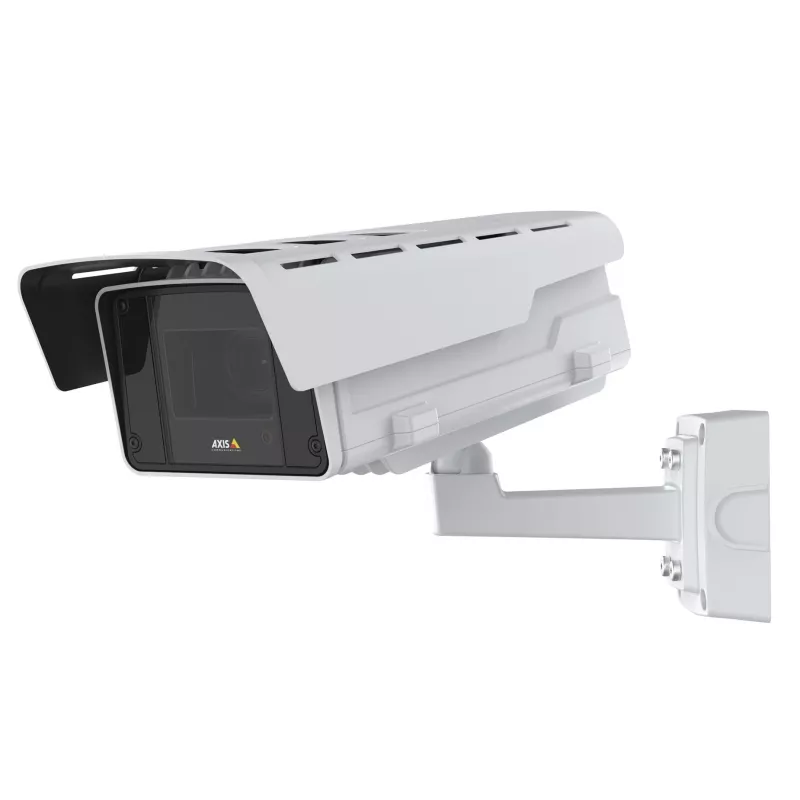

• Compatible wall mount: AXIS T94Q01A
• Also suitable to cover: single gang junction box

How to use

Mount the AXIS TQ1601-E to the wall or surface and, when used with AXIS T94Q01A Wall Mount, route the Ethernet cable through or along the wall from the left or right. Use the top, bottom or side conduit entries to connect 3/4" conduits, M25 cable protection products or ACI adapters. Secure with the provided long screws and washer to reduce vibration transfer.

Recommendations

Verify compatible conduit and adapter types before installation and use appropriate sealing and cable protection to maintain weather resistance. When covering a junction box, confirm internal clearances for cabling and connectors.
