Caixa de consola Bopla TOPLINE ATPH 1865-250 250 x 181 x 68 mm alumínio cinzento-grafite RAL 7024 92865250.MT 1

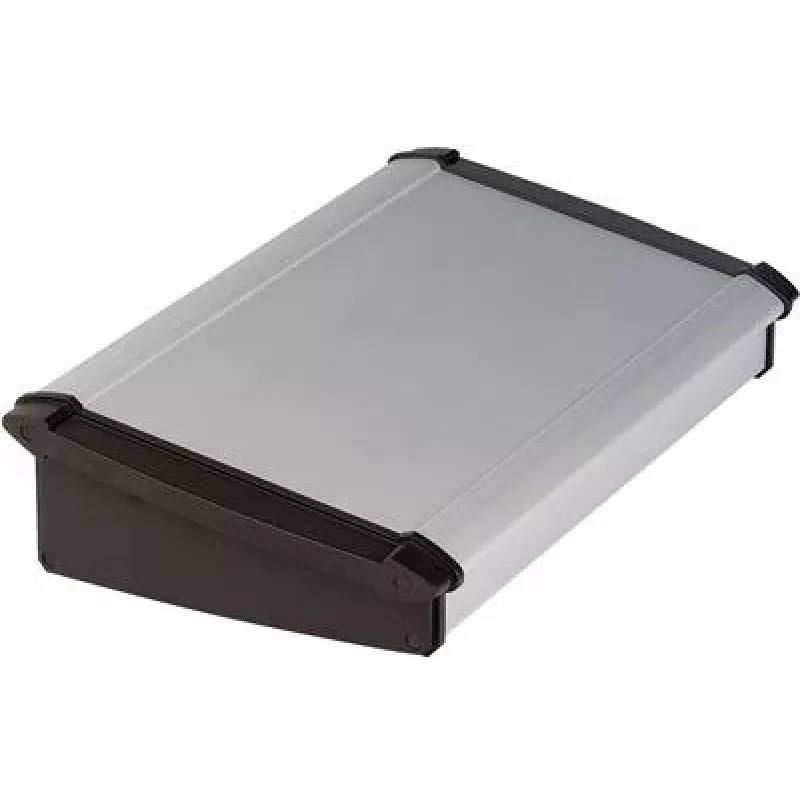

The Bopla TOPLINE ATPH 1865-250 console enclosure stands out with its sloping front panel, offering an ergonomic angle for controls and displays in desktop applications. Its aluminium construction with a graphite grey powder coating provides a robust yet refined housing for electronics.

Highlights

• Console enclosure with sloping front panel for comfortable operation
• Aluminium body with graphite grey powder coating (RAL 7024)
• External dimensions: 250 x 181 x 68 mm
• Two-part design: base and flat lid
• IP40 protection against solid objects over 1 mm
• Operating temperature range: -40 to +80 °C
• RoHS compliant
• Includes screws for assembly

In daily use

This enclosure is suited for desktop control units, measurement devices, or interface panels where a sloped front improves visibility and access. The aluminium body provides durability and effective heat dissipation, while the powder coating resists wear and corrosion.

Full specifications

• Series: TOPLINE ATPH
• Enclosure type: Console enclosure
• Material: Aluminium
• Colour: Graphite grey (RAL 7024)
• External dimensions: 250 x 181 x 68 mm
• Protection class: IP40
• Mounting type: Desktop
• Number of parts: 2 (base and lid)
• Surface finish: Powder-coated
• Lid design: Flat
• Base design: Sloping front panel
• Operating temperature range: -40 to +80 °C
• RoHS compliant: Yes
• Included accessories: Screws for assembly

Final note

A solid choice for custom control panels requiring a sloped interface and durable aluminium construction.
