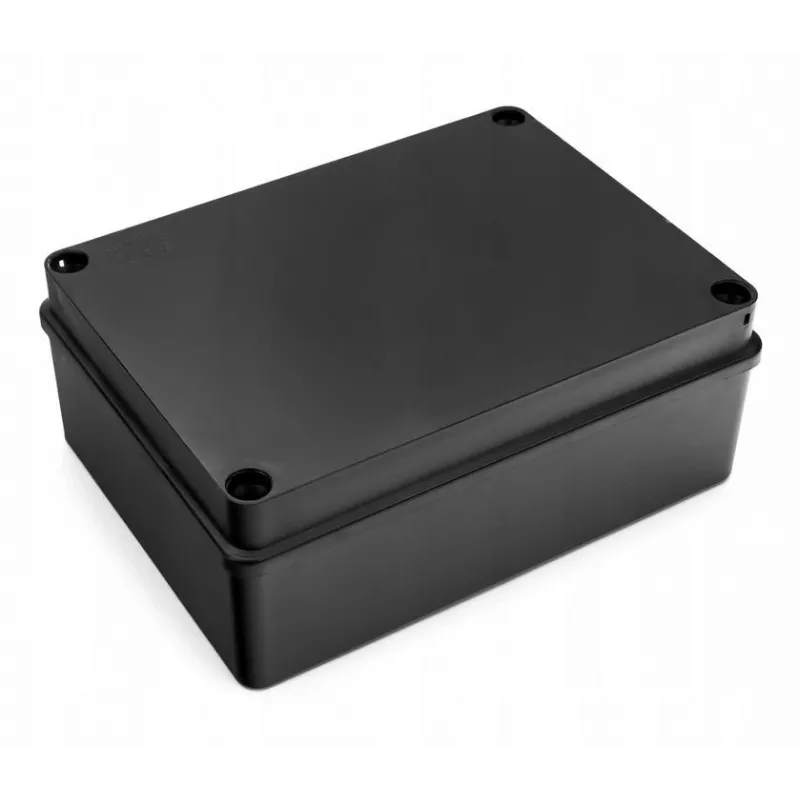

Caixa de derivação hermética 190 x 140 x 70 mm sem prensa-cabos IP65 sem halogéneos preto PAWBOL S-B416C

The PAWBOL S-B416C hermetic junction box is a robust and reliable solution for indoor and outdoor electrical installations. With dimensions of 190 x 140 x 70 mm, this IP65-rated box provides excellent protection against dust and water jets, making it suitable for demanding environments. Manufactured from halogen-free ABS plastic, it ensures safety and environmental compliance. The box comes without pre-drilled cable entries, allowing flexible customization with cable glands as needed.

Advantages

This junction box offers high ingress protection (IP65) for reliable performance in harsh conditions. Its halogen-free material reduces toxic emissions in case of fire, enhancing safety. The UV-resistant and impact-resistant (IK07) construction ensures long-lasting durability outdoors. The screwed lid provides secure closure, while the surface-mount design simplifies installation.

Suitable for

• Electrical junction and connection points in industrial, commercial, and residential settings
• Outdoor lighting, security systems, and telecommunications
• Applications requiring halogen-free materials for fire safety
• Custom cable entry configurations using separate cable glands

Key specifications

• Brand: PAWBOL
• Model: S-B416C
• Product Type: Hermetic Junction Box
• External Dimensions: 190 x 140 x 70 mm (Length x Width x Height)
• Ingress Protection: IP65
• Material: ABS Plastic, Halogen-Free
• Colour: Black
• Lid Type: Opaque, Screwed
• Mounting: Surface Mount
• Impact Resistance: IK07
• UV Resistance: Yes
• Flammability Rating: UL94-V2
• Operating Temperature: -25°C to +60°C
• Standards: EN 60670-1, EN 60670-22

Recommendations

For optimal protection, use appropriate cable glands (not included) to maintain the IP65 rating. Ensure the mounting surface is clean and dry before installation. This box is ideal for custom wiring projects where flexibility in cable entry is required.
