Caixa de parede BOPLA EUROMAS II, policarbonato, cinzento-claro (RAL 7035), 113 x 80 x 60 mm, IP65, IK07, UL 94 V-0 96022125

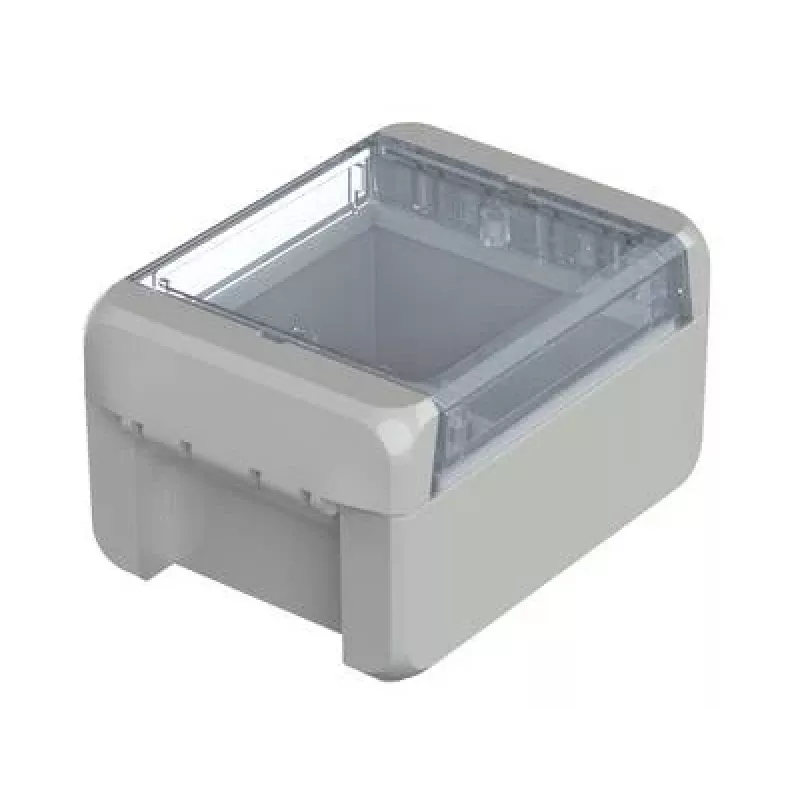

Installers and panel builders use the BOPLA EUROMAS II enclosure to house electronics in industrial and outdoor locations where dust, water jets, and mechanical impact are daily risks. The light grey polycarbonate body measures 113 mm long, 80 mm wide, and 60 mm high, giving enough internal space for small controllers, sensors, or terminal blocks.

Key specifications

• Material: Polycarbonate (PC), flame retardant grade PC-V0
• Colour: Light grey, RAL 7035
• External dimensions: 113 x 80 x 60 mm (L x W x H)
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-0
• Operating temperature range: -40 to +80 °C
• Gasket material: Polyurethane (PU) foam
• Lid screws material: Stainless steel
• Mounting type: Wall mountable
• Lid type: Opaque
• Internal mounting: Bosses for PCBs or mounting plates
• Compliance: RoHS

Why choose it

The polycarbonate construction resists impact and UV exposure, while the PU foam gasket keeps the IP65 seal reliable over time. Stainless steel lid screws prevent corrosion, and the flame-retardant material allows use near electrical equipment.

Ideal use cases

• Outdoor sensor housings
• Industrial control boxes
• Junction boxes in dusty or wet environments
• Wall-mounted electronics in public areas

Good to know

The enclosure is part of the EUROMAS II series and is RoHS compliant. Internal bosses simplify mounting of PCBs or plates without additional drilling.
