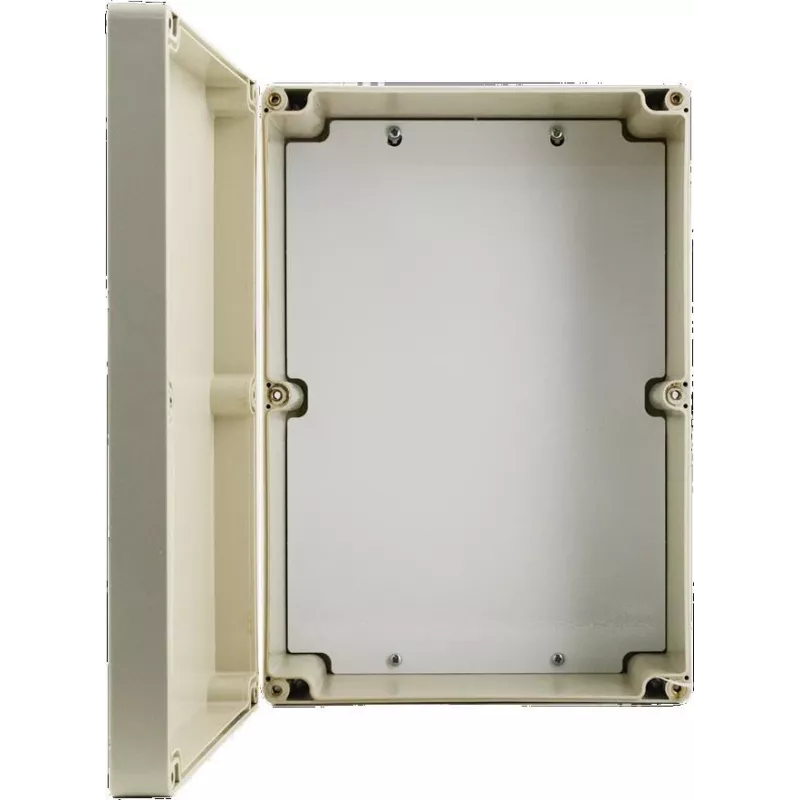

Caixa universal ABS Pulsar AWO604

The Pulsar AWO604 is a universal ABS enclosure designed for a wide range of electronic applications, including alarm systems, access control, CCTV, and general electronics. Its robust construction and tamper protection make it a reliable choice for secure installations.

Advantages

This enclosure offers a durable ABS plastic housing with a sleek white finish (RAL 9003). It features a tamper microswitch for added security, pre-marked knockouts for easy cable entry, and internal standoffs for PCB mounting. The design allows for surface or wall mounting, providing flexibility in installation.

Suitable for

• Alarm systems
• Access control systems
• CCTV equipment
• General electronic projects

Key specifications

• Material: ABS Plastic
• Colour: White (RAL 9003)
• External dimensions (L x W x H): 200 x 200 x 60 mm
• Internal dimensions (L x W x H): 195 x 195 x 55 mm
• Protection class: IP20
• Tamper protection: Yes (microswitch)
• Max. battery capacity: 7 Ah / 12 V
• Operating temperature: -10°C to +40°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Lid fastening: Screws
• Number of PCB standoffs: 4
• Cable entry: Pre-marked knockouts
• Certifications: CE

Recommendations

For optimal performance, ensure proper ventilation if used with heat-generating components. The enclosure is suitable for indoor use only.
