Pulsar AWO000PU Caixa metálica universal, branco (RAL 9003), montagem na parede, suporte para bateria 17Ah

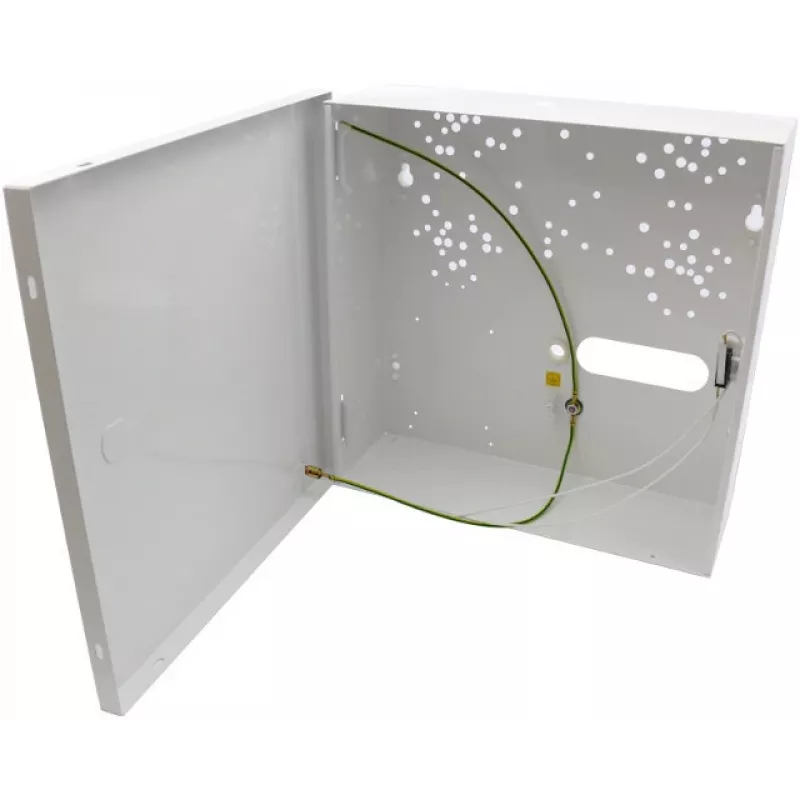

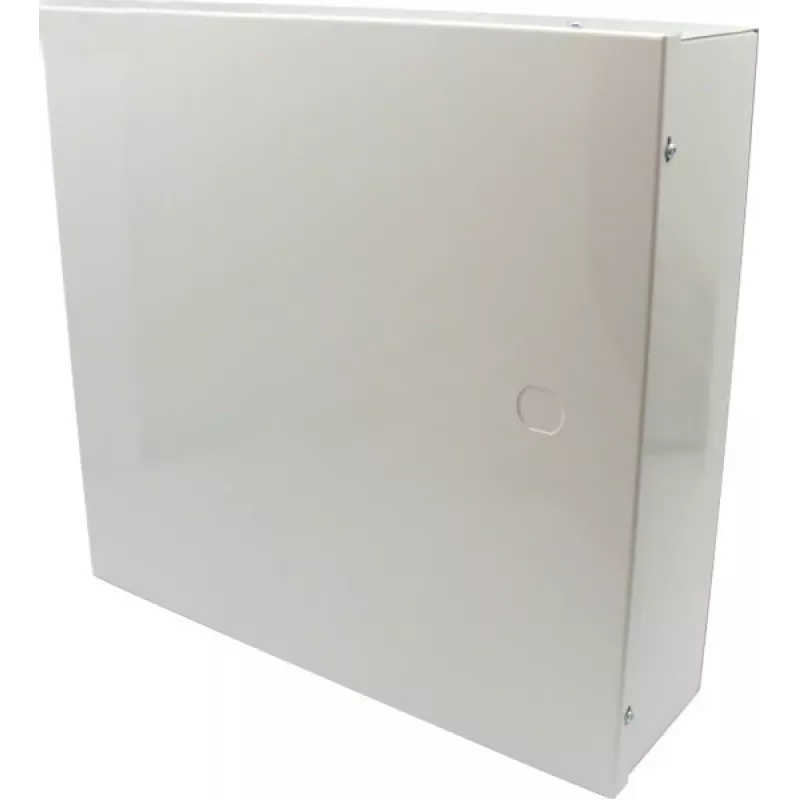

The Pulsar AWO000PU is a robust universal metal enclosure designed for alarm systems, access control, CCTV, and intercom applications. Manufactured from 0.8 mm steel with a white RAL 9003 finish, this wall-mounted enclosure provides secure housing for electronic components. It features a key lock cylinder, tamper protection via NC microswitch, and supports batteries up to 17Ah/12V. Compatible with TS 16/20/40/60VA transformers, it offers multiple cable entries and ventilation for reliable operation in temperatures from -10°C to +40°C.

Advantages

Durable steel construction with tamper protection ensures security. The white finish blends with most interiors, and the key lock prevents unauthorized access. Ventilation maintains optimal internal temperature, while multiple cable entries simplify installation.

Suitable for

• Alarm system control panels
• Access control units
• CCTV equipment housing
• Intercom system enclosures

Key specifications

• Material: Steel (0.8 mm thickness)
• Colour: White (RAL 9003)
• Mounting: Wall-mounted
• Lock: Key lock (cylinder)
• Tamper protection: 1x NC microswitch
• Battery support: Up to 17Ah/12V
• Transformer compatibility: TS 16/20/40/60VA
• Protection class: IP20
• Operating temperature: -10°C to +40°C
• Humidity: 20% to 90% (non-condensing)
• Ventilation: Yes
• Cable entries: Multiple (top, bottom, rear)

Recommendations

For optimal performance, use with Pulsar power supplies and batteries. Ensure proper grounding and follow local electrical codes during installation.
