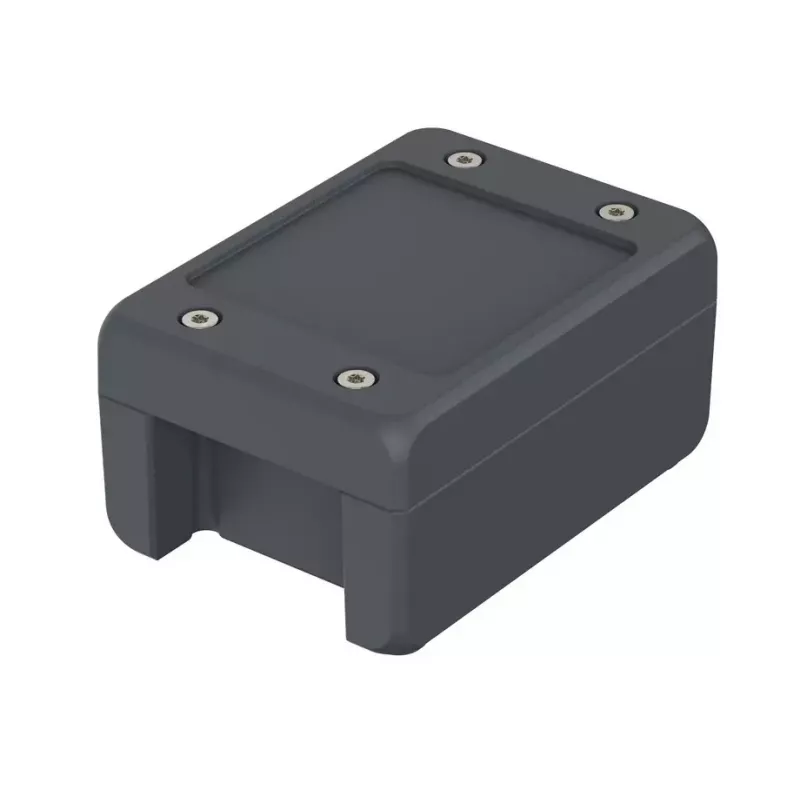

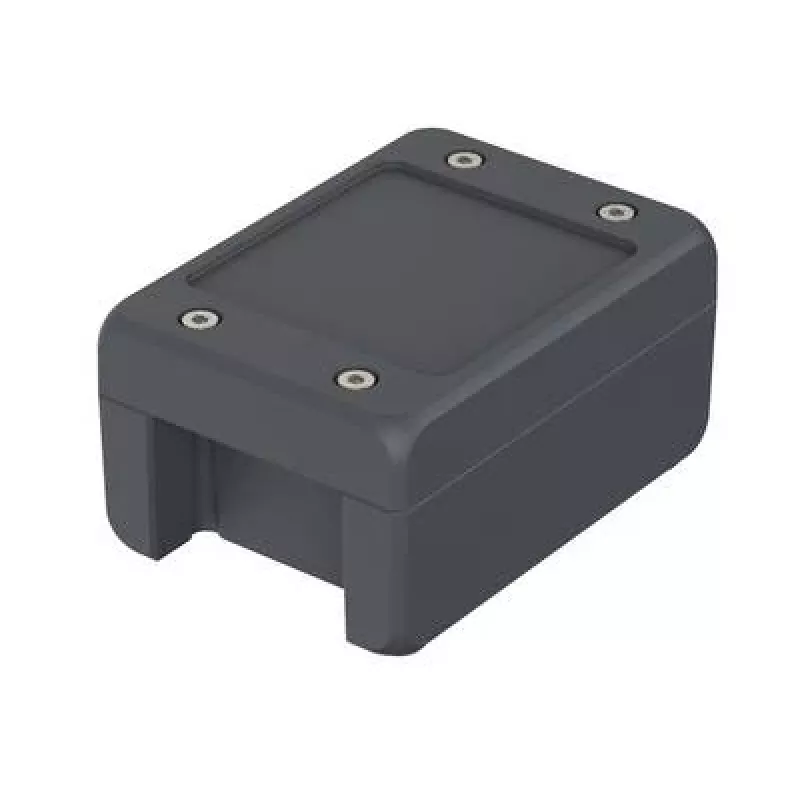

Caixa universal Bopla BA-S 100806 F Bocube Alu 121 x 86 x 60 mm alumínio cinzento grafite RAL 7024 00162124

Protect sensitive electronics from dust, moisture, and mechanical impact with the Bopla BA-S 100806 F Bocube Alu enclosure. This universal aluminium housing provides a robust, IP66-rated solution for industrial control systems, electronic components, and other demanding applications. Its hinged lid with quick-release fasteners allows easy access during installation and maintenance, while the graphite grey powder-coated finish (RAL 7024) offers a professional appearance and corrosion resistance.

Who is it for

Engineers and technicians who need a durable, weatherproof enclosure for PCBs, terminal blocks, or small control units in industrial environments. Ideal for machine building, automation, and outdoor installations where protection against dust and water jets is required.

Main features

• External dimensions: 121 mm length, 86 mm width, 60 mm height
• Material: aluminium with powder-coated graphite grey finish (RAL 7024)
• Hinged lid with quick-release fasteners for convenient access
• Protection class IP66: dust-tight and protected against powerful water jets
• Impact resistance IK08
• Internal mounting bosses for PCBs or mounting plates
• Silicone gasket for reliable sealing
• Operating temperature range: -35°C to +80°C

Specifications

• Series: Bocube Alu
• Product type: Universal enclosure
• External length: 121 mm
• External width: 86 mm
• External height: 60 mm
• Material: Aluminium
• Colour: Graphite grey (RAL 7024)
• Surface finish: Powder-coated
• Lid type: Hinged
• Lid fastening: Quick-release fasteners
• Protection class: IP66
• Impact resistance: IK08
• Gasket material: Silicone
• Temperature range: -35°C to +80°C
• Internal mounting: Mounting bosses for PCBs/mounting plates

Tips

When installing, ensure the gasket is clean and properly seated to maintain the IP66 seal. For outdoor use, consider additional UV protection if the enclosure will be exposed to direct sunlight for extended periods.
