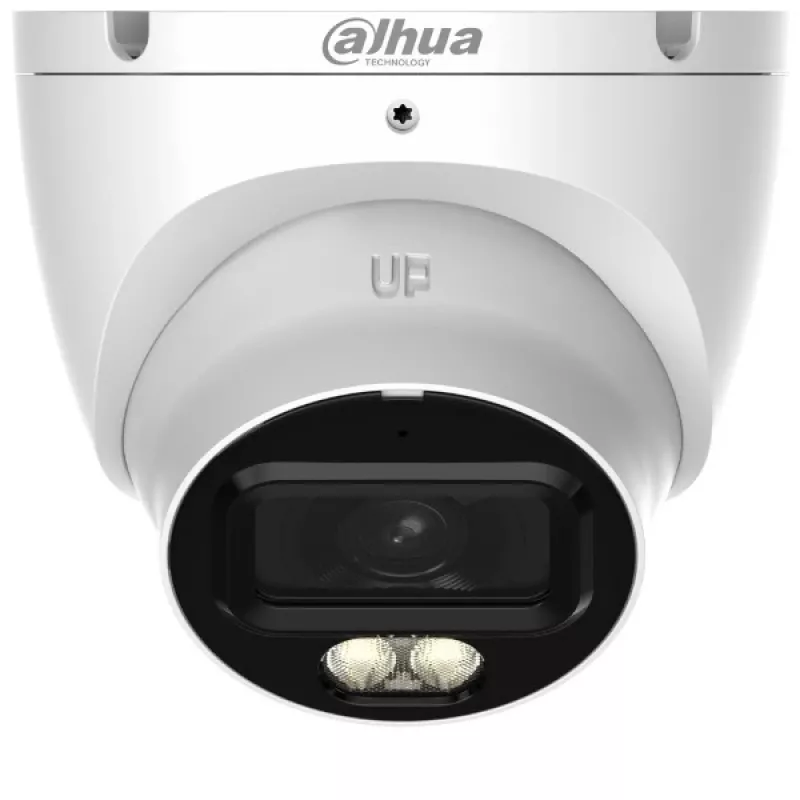

Câmara DAHUA HAC-HDW1801TLM-IL-A-0280B-S3-DIP Smart Dual Light 8MP 4K UHD 2,8mm AHD HD-CVI HD-TVI

The DAHUA HAC-HDW1801TLM-IL-A-0280B-S3-DIP is a high-performance 8 Megapixel (4K UHD) analog security camera featuring Smart Dual Light technology. It delivers exceptional image quality with 3840x2160 resolution and supports multiple video formats (CVI/TVI/AHD/CVBS) for flexible integration. Equipped with a 2.8mm fixed lens, it provides a 106° horizontal field of view, ideal for wide-area surveillance. The Smart Dual Light system combines IR and white light LEDs for clear night vision up to 30 meters, with intelligent switching based on scene analysis. Built with a metal front cover and plastic body, it is IP67-rated for outdoor use and operates in extreme temperatures from -40°C to +60°C. The camera includes a built-in microphone for audio capture and features Digital WDR and 2D NR for enhanced image quality in challenging lighting conditions.

Advantages

This camera offers a cost-effective solution for upgrading existing analog systems to 4K resolution without replacing cabling. The Smart Dual Light technology reduces false alarms by intelligently switching between IR and white light, providing color night vision when needed. Its rugged IP67 design ensures reliable performance in harsh weather, and the wide voltage tolerance (12V DC ±30%) simplifies power installation.

Suitable for

• Retail stores and shops requiring high-detail surveillance
• Office buildings and commercial premises
• Residential outdoor monitoring (driveways, gardens)
• Warehouses and logistics centers
• Parking lots and perimeter security

Key specifications

• Image Sensor: 1/2.7" CMOS
• Max Resolution: 8MP (3840x2160)
• Frame Rate: 8MP@15fps; 5MP@20fps; 4MP@25/30fps; 1080P@25/30fps
• Lens: 2.8mm fixed focal
• Angle of View: 106° (H)
• Video Output: CVI/TVI/AHD/CVBS switchable
• Illumination: Smart Dual Light (IR + White Light), up to 30m each
• Audio: Built-in microphone
• WDR: Digital WDR (DWDR)
• Noise Reduction: 2D NR
• Ingress Protection: IP67
• Power Supply: 12V DC ±30%, max 4.9W
• Operating Temperature: -40°C to +60°C
• Housing: Metal front cover + Plastic main body

Recommendations

For optimal performance, use a high-quality 12V DC power supply and ensure proper cable connections. This camera is compatible with DAHUA XVR series recorders and other analog DVRs supporting CVI/TVI/AHD/CVBS. Consider using a surge protector for outdoor installations.
