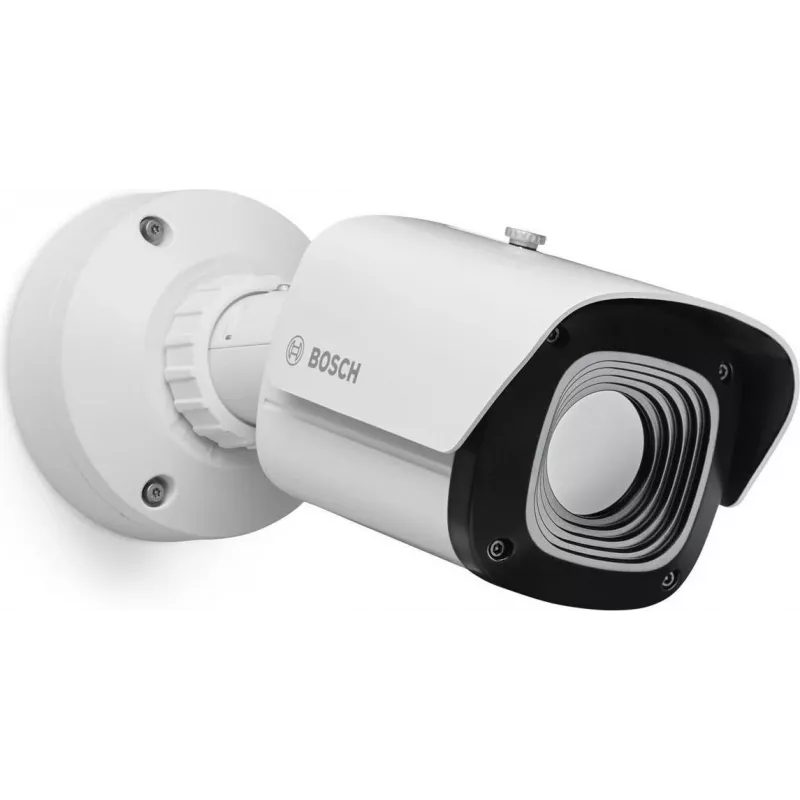

Câmara de rede térmica bullet Bosch VGA 69° 30Hz IP66/IP67 PoE+ (NBT-8701-F06VF)

With a thermal sensitivity of less than 50 mK, the Bosch NBT-8701-F06VF bullet camera reveals temperature differences as subtle as 0.05°C, turning darkness, smoke, and fog into clear surveillance opportunities. Its uncooled VOx microbolometer captures 640 x 480 thermal video at a fluid 30 fps, while the 6.9 mm lens delivers a wide 69° horizontal field of view for expansive area coverage.

Overview

Engineered for relentless outdoor security, this bullet camera combines thermal imaging with intelligent video analytics. It detects intruders by heat signature, ignoring visual distractions like shadows or headlights. The rugged housing withstands harsh weather (IP66/IP67) and vandalism (IK10), operating from -40°C to +60°C. Power options include PoE+ (802.3at), 24 VAC, or 12 VDC for flexible installation. Video streams in H.264 or M-JPEG, with local storage on a microSDXC card up to 2 TB.

What stands out

• Exceptional thermal sensitivity (<50 mK NETD) for precise detection
• High-resolution 640 x 480 VGA thermal imaging at 30 fps
• Wide 69° horizontal field of view reduces camera count
• Built-in Intelligent Video Analytics (IVA) for smart alerts
• Rugged IP66/IP67 and IK10 rating for any environment
• Flexible power: PoE+, 24 VAC, or 12 VDC
• ONVIF Profile S, G, T for easy integration

Technical details

• Sensor: Uncooled VOx microbolometer
• Resolution: 640 x 480 (VGA)
• Frame rate: 30 fps (NTSC) / 25 fps (PAL)
• Focal length: 6.9 mm
• Field of view: 69° horizontal, 56° vertical
• Thermal sensitivity: <50 mK NETD
• Video compression: H.264, M-JPEG
• Power: PoE+ (IEEE 802.3at Type 2), 24 VAC, 12 VDC
• Ingress protection: IP66, IP67
• Vandal resistance: IK10
• Operating temperature: -40°C to +60°C
• Storage: microSDXC slot (up to 2 TB)
• Analytics: Built-in Intelligent Video Analytics (IVA)
• ONVIF: Profile S, G, T
• Ethernet: 1x RJ45 10/100 Base-T
• Alarm I/O: 2 inputs, 1 output
• Audio: 1x line-in, 1x line-out
• Colour palettes: White Hot, Black Hot, Rainbow, Iron, and more
• Mounting: Wall, ceiling, pole (with optional accessories)

Our verdict

The Bosch NBT-8701-F06VF is a top-tier thermal bullet camera for perimeter protection and critical infrastructure. Its superb sensitivity and wide view, combined with robust analytics and durable build, make it a reliable choice for 24/7 surveillance in challenging conditions.
