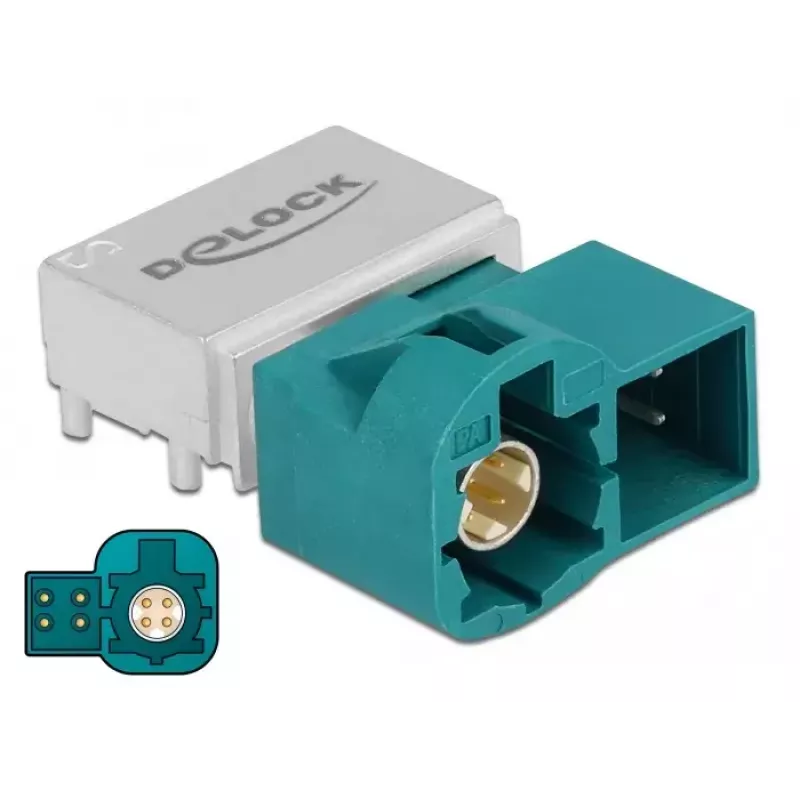

Conector coaxial DeLOCK 90359

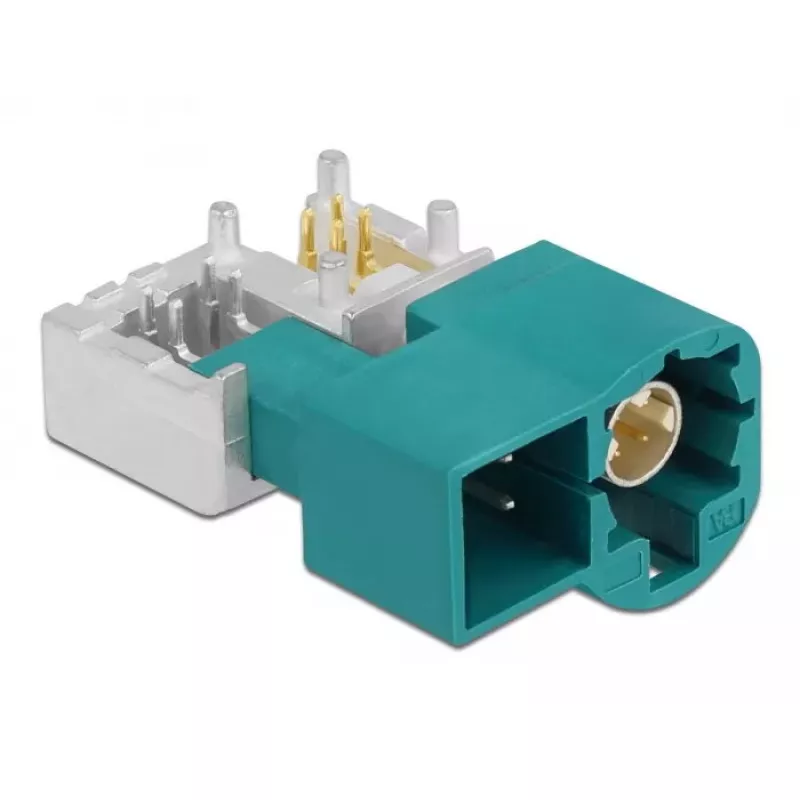

The DeLOCK 90359 coaxial connector is a male HSD Z connector with a 90° angle designed for electrical and electronic component connections in vehicles and other compact installations. It includes four additional power pins implementing Power over HSD (PoH), a Rosenberger concept that transmits power on separate conductors alongside the data signal to supply cameras, displays or similar terminal devices. The connector is compact (21 mm width, 28 mm depth, 14 mm height) and supplied as a single unit in a polybag.

Advantages

The angled HSD Z male connector saves space in confined assemblies and enables reliable coaxial signal transmission. Built-in +4 power pins support PoH for remote powering of peripheral devices without separate power cabling. Its compact dimensions and industry-standard form factor simplify integration into vehicle electronics and compact equipment.

Suitable for

Key specifications

How to use

Align the male HSD Z connector with the corresponding female HSD receptacle and insert at the correct angle until the connector seats fully. Ensure mating connectors are compatible with PoH if remote powering is required. Secure the connector and any cable strain relief according to the installation environment and vehicle manufacturer guidelines. Observe standard wiring and grounding practices when integrating data and power conductors.

Recommendations

Use the connector with compatible HSD receptacles and devices designed for Power over HSD. Verify voltage and current requirements of the terminal device before enabling PoH. Avoid excessive mechanical stress and protect the connection from contaminants and moisture where necessary.
