Conector coaxial DeLOCK 90525

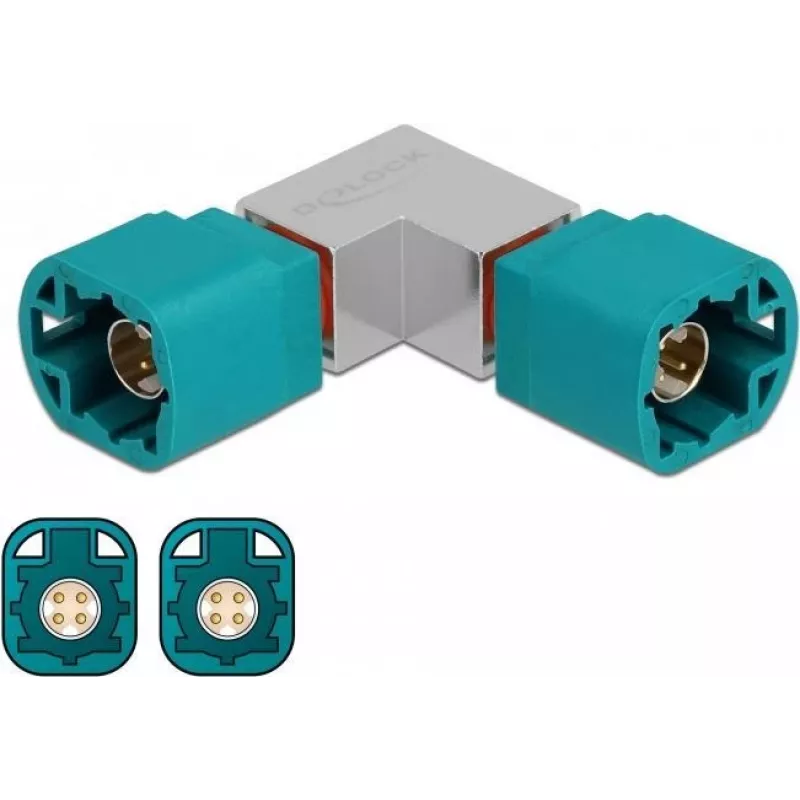

The DeLOCK 90525 coaxial connector is designed for reliable signal transfer in electronic systems, particularly in vehicle applications. It features HSD Z connectors on both ends with a male gender and compact dimensions of 30 mm x 30 mm x 12 mm. The connector is supplied in a polybag and has a blue housing, making it suitable for tight installations and equipment where space is limited.

Advantages

The coaxial connector provides a standardized HSD Z interface for consistent electrical performance and secure mating. Its small size supports installation in confined spaces typical of automotive and electronic equipment. Supplied in a polybag, the product is protected during storage and transport and the blue colour allows easy visual identification.

Suitable for

Key specifications

How to use

Align the HSD Z male connector with the corresponding female HSD Z socket and insert it straight without applying excessive force. Ensure proper mating by verifying that the connector seats fully and that any locking features (if present in the mating part) engage. Use in accordance with the device manufacturer's instructions and observe standard ESD precautions when handling electronic components.

Recommendations

For optimal performance, use the DeLOCK 90525 with compatible HSD Z female connectors and in installations that match the stated dimensions; avoid bending or stressing the connector beyond normal handling to maintain reliable signal transmission.
