Conector compacto WAGO 221-412 2 condutores 0,2-4 mm² transparente (100 unid.)

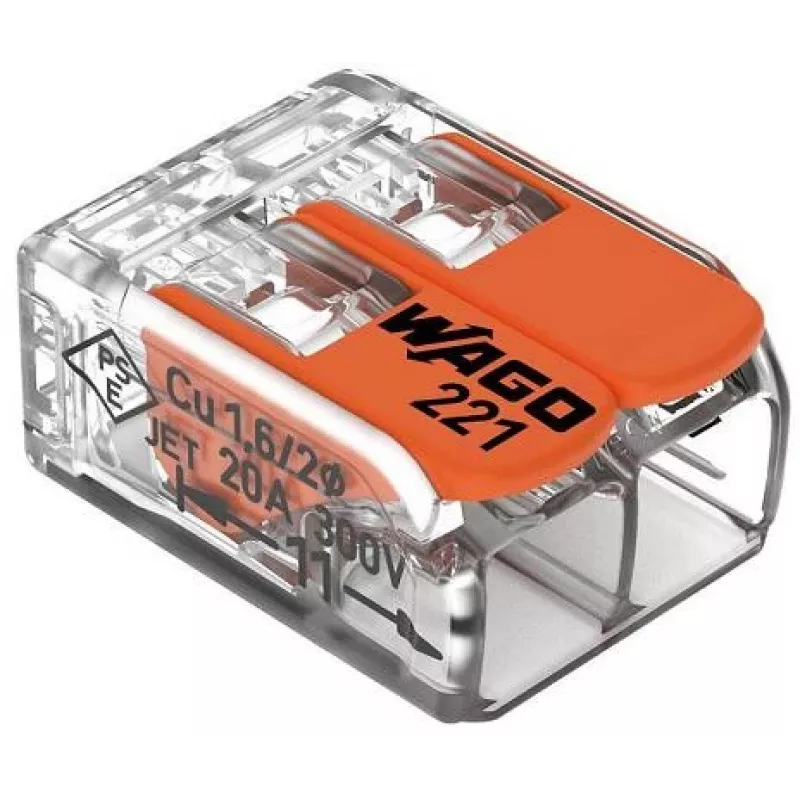

The WAGO 221-412 is a compact splicing connector from the renowned WAGO 221 Series, designed for fast and reliable wire connections. This lever-operated CAGE CLAMP® connector accommodates 2 conductors with cross-sections from 0.2 to 4 mm² (24-12 AWG) for solid, stranded, and fine-stranded wires. The transparent housing allows easy inspection of the connection, while the orange levers provide clear actuation status. Supplied in a pack of 100 pieces, it is ideal for electrical installations, junction boxes, and lighting applications.

Advantages

Lever-operated design enables tool-free, quick, and secure wire termination. Transparent housing permits visual inspection of conductor insertion. Compact size saves space in junction boxes. High reliability with rated voltage up to 450 V and rated current up to 32 A. Suitable for solid, stranded, and fine-stranded wires, offering versatility across various applications.

Suitable for

• Electrical installations in residential and commercial buildings
• Junction boxes and distribution boards
• Lighting and luminaire connections
• Control cabinets and industrial automation
• DIY and professional wiring projects

Key specifications

• Product Type: Compact Splicing Connector
• Series: WAGO 221 Series
• Number of Conductors: 2
• Connection Technology: Lever-operated CAGE CLAMP®
• Wire Type Compatibility: Solid, Stranded, Fine-stranded
• Nominal Cross Section (Solid/Stranded): 0.2 - 4 mm² (24 - 12 AWG)
• Nominal Cross Section (Fine-Stranded): 0.14 - 4 mm² (24 - 12 AWG)
• Rated Voltage (EN): 450 V
• Rated Current (EN): 32 A
• Rated Impulse Voltage: 4 kV
• Pollution Degree: 2
• Stripping Length: 9 - 10 mm (0.35 - 0.39 inch)
• Housing Material: Polycarbonate (PC)
• Contact Material: Electrolytic Copper
• Flammability Rating: UL 94 V-2
• Operating Temperature: -20 to +85 °C
• Max. Continuous Operating Temperature: 105 °C
• Color: Transparent (Housing), Orange (Levers)
• Approvals: ENEC, UL, CSA, KEMA-KEUR, PSE, RCM, EAC, CQC
• Quantity per Pack: 100 pieces

Recommendations

For optimal performance, use with WAGO 221 Series accessories and ensure proper stripping length. Always follow local electrical codes and regulations.
