Conector compacto WAGO 221-425 5 condutores com alavancas, transparente/laranja

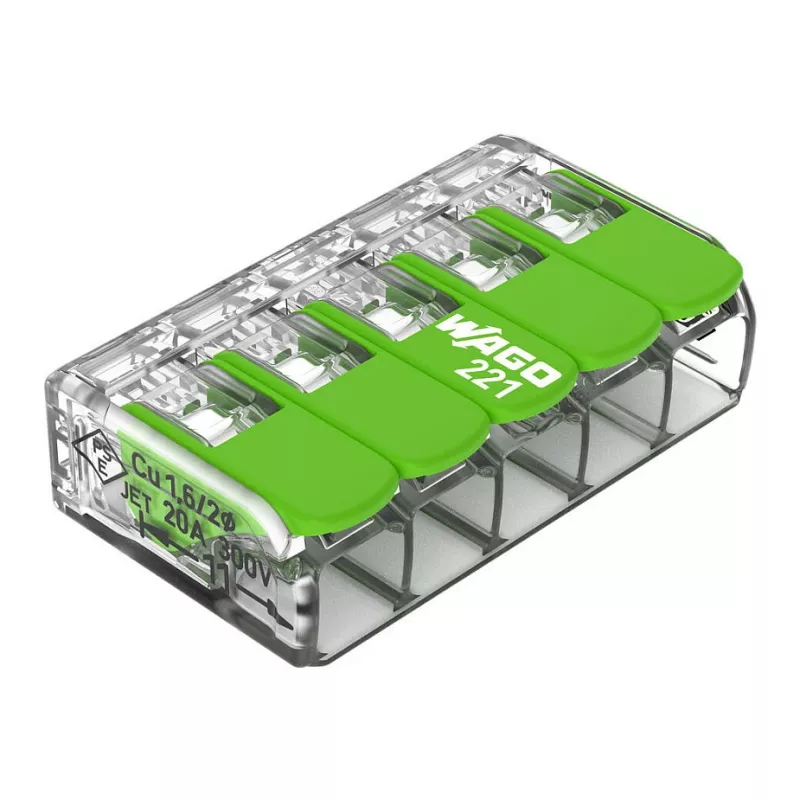

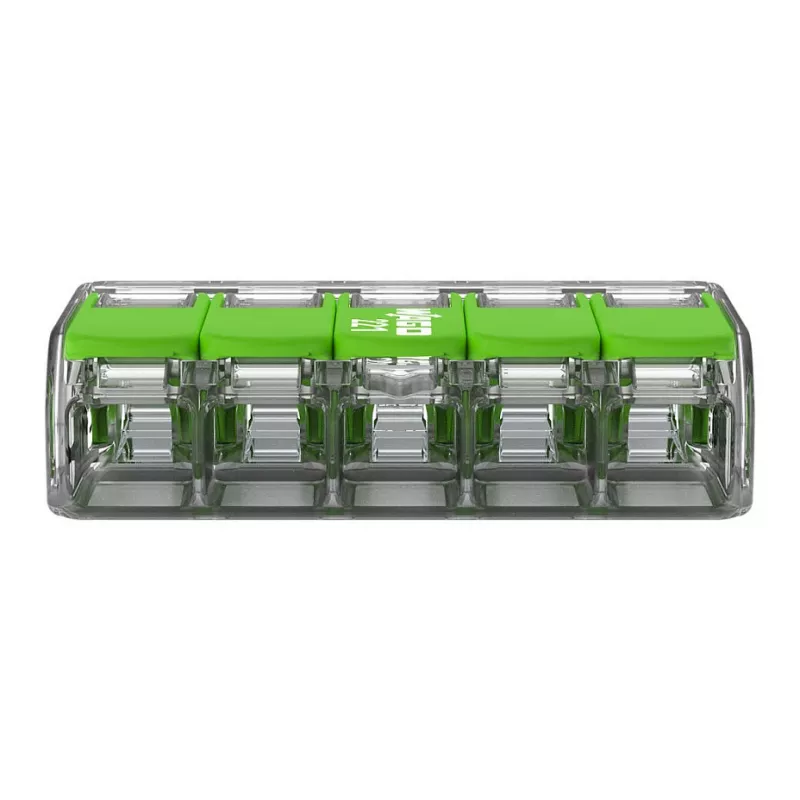

The WAGO 221-425 is a compact 5-conductor splicing connector with levers, part of the renowned WAGO 221 series. Designed for fast, tool-free wiring, this connector is ideal for junction boxes, lighting fixtures, and electrical installations. Its transparent housing allows for easy visual inspection of conductor insertion, while the orange levers provide clear actuation status.

Advantages

Tool-free lever actuation for quick and easy wiring; compact design saves space; transparent housing for visual inspection; reliable CAGE CLAMP® connection technology; suitable for solid, stranded, and fine-stranded copper conductors.

Suitable for

• Junction boxes and distribution boxes
• Lighting and luminaire connections
• Electrical installations in residential and commercial buildings
• Industrial control cabinets

Key specifications

• Number of connection points: 5
• Connection technology: CAGE CLAMP®

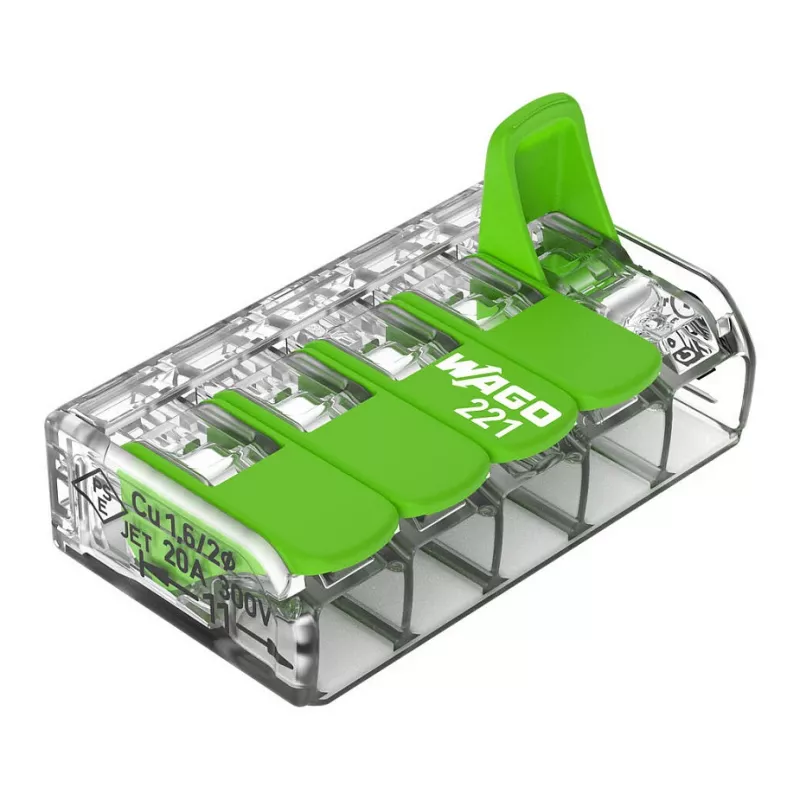

• Actuation type: Lever
• Solid conductor cross-section: 0.2 - 4 mm² (24 - 12 AWG)
• Stranded conductor cross-section: 0.2 - 4 mm² (24 - 12 AWG)
• Fine-stranded conductor cross-section: 0.14 - 4 mm² (24 - 12 AWG)
• Rated voltage (II/2): 450 V
• Rated impulse voltage (II/2): 4 kV
• Rated current: 32 A
• Stripping length: 11 mm / 0.43 inch
• Color: Transparent / Orange (levers)
• Housing material: Polycarbonate (PC)
• Contact material: Electrolytic copper (ECu), tin-plated
• Operating temperature: -20 to +85 °C
• Pollution degree: 2
• Approvals: VDE, UL, CSA, ENEC, KEMA-KEUR, PSE, RCM, CCC

Recommendations

For optimal performance, use with copper conductors only and ensure proper stripping length. Suitable for a wide range of applications requiring reliable and reusable connections.
