Conector F/FAKRA Z DeLOCK 89526

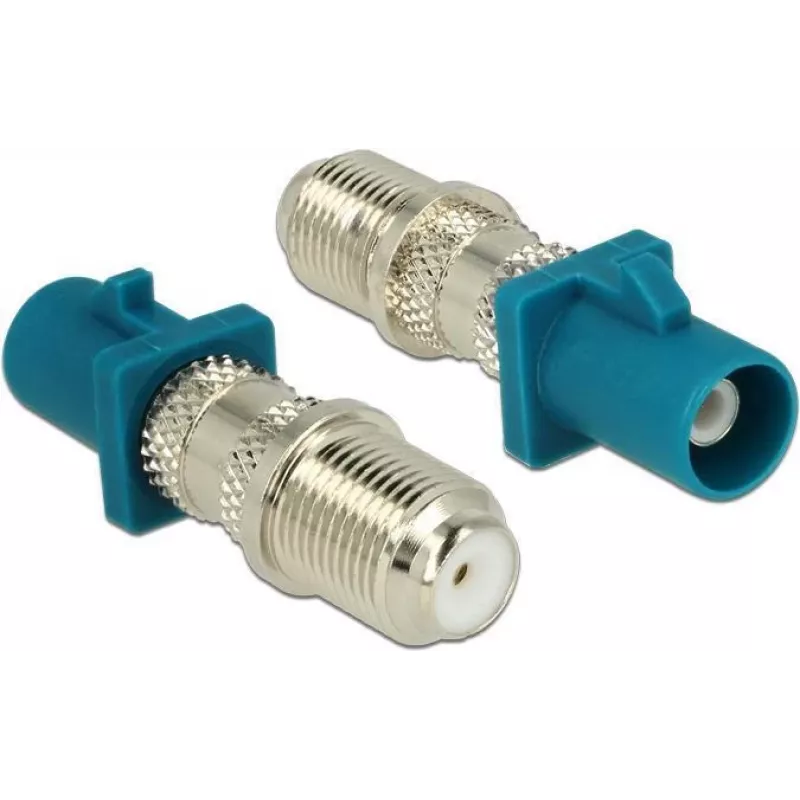

The DeLOCK Connector F/FAKRA Z (model 89526) is an adapter that joins a female F coaxial interface to a female FAKRA Z automotive-style RF connector. It features nickel/gold plated contacts and is available in blue and silver finishes. The adapter is designed for reliable signal transmission in automotive and telecommunications environments and is compact and easy to fit.

Advantages

The adapter provides a secure mechanical and electrical connection between standard F coaxial cables and FAKRA Z interfaces. Nickel/gold plated contacts improve corrosion resistance and signal integrity. Its compact design and colour coding (blue and silver) simplify identification and installation in vehicle or equipment harnesses.

Suitable for

Key specifications

How to use

Align the female F connector with the corresponding male F cable and screw or push it into place according to the cable type. Insert the FAKRA Z female end onto the matching male FAKRA Z plug until it engages. Ensure both connections are secure and that cable routing prevents strain on the adapter. No special tools are typically required beyond those used for the connected cables.

Recommendations

Use the adapter in dry, protected environments or suitably sealed vehicle installations; avoid exposure to prolonged moisture or corrosive conditions to preserve contact plating and signal quality.
