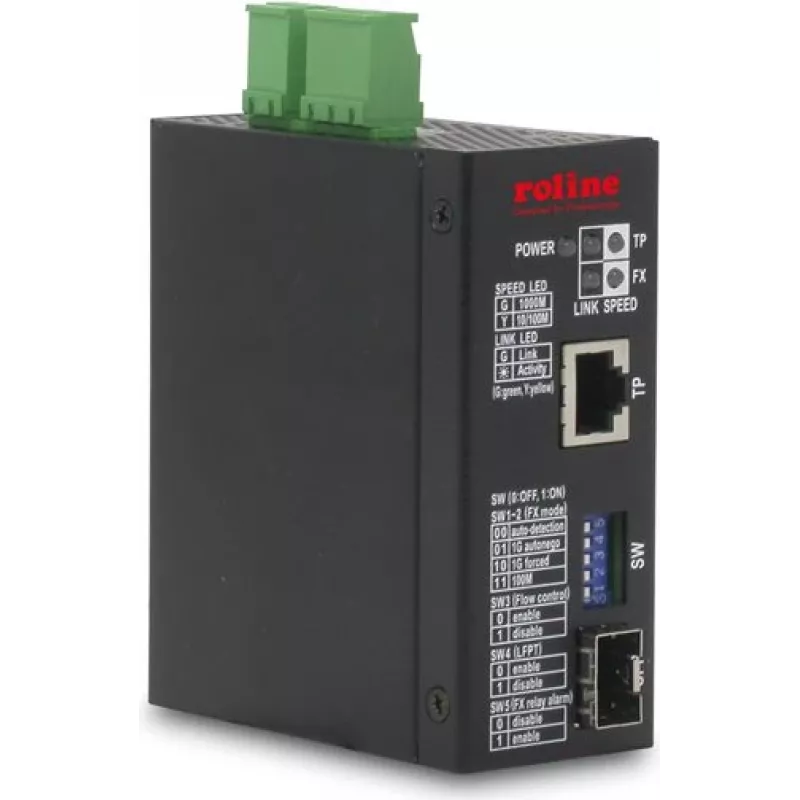

Conversor de media ROLINE Industrial Gigabit Ethernet 10/100/1000Base-T para 100/1000Base-X SFP, DIN-Rail, -40°C a 75°C

The ROLINE Industrial Converter is a robust Gigabit Ethernet media converter designed for demanding industrial environments. It seamlessly connects 10/100/1000Base-T copper networks to 100/1000Base-X fiber optic networks via an SFP slot, ensuring reliable data transmission over long distances. With a rugged IP30 metal housing, wide operating temperature range, and redundant power input, this converter is ideal for factory automation, surveillance, and outdoor installations.

Advantages

Reliable and durable design with IP30 metal housing, wide temperature range (-40°C to 75°C), and redundant DC power input (12-48V) for maximum uptime. Supports jumbo frames up to 9K bytes and features auto MDI/MDI-X for easy installation.

Suitable for

• Industrial Ethernet networks requiring fiber optic extension
• Factory automation and process control
• IP surveillance systems
• Outdoor and harsh environment deployments

Key specifications

• 1x 10/100/1000Base-T RJ-45 port
• 1x 100/1000Base-X SFP slot (mini-GBIC)
• Data rates: 10/100/1000 Mbps (copper), 100/1000 Mbps (fiber)
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x
• Jumbo frame support: up to 9K bytes
• LED indicators: Power, Link/Act (RJ-45), Link/Act (SFP)
• Power input: DC 12-48V (redundant)
• Power consumption: < 3W
• Operating temperature: -40°C to 75°C
• Storage temperature: -40°C to 85°C
• Humidity: 5% to 95% (non-condensing)
• Housing: IP30 metal, DIN-rail and wall-mount support
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use a compatible SFP module (sold separately). Ensure proper grounding and power supply within the specified voltage range.
