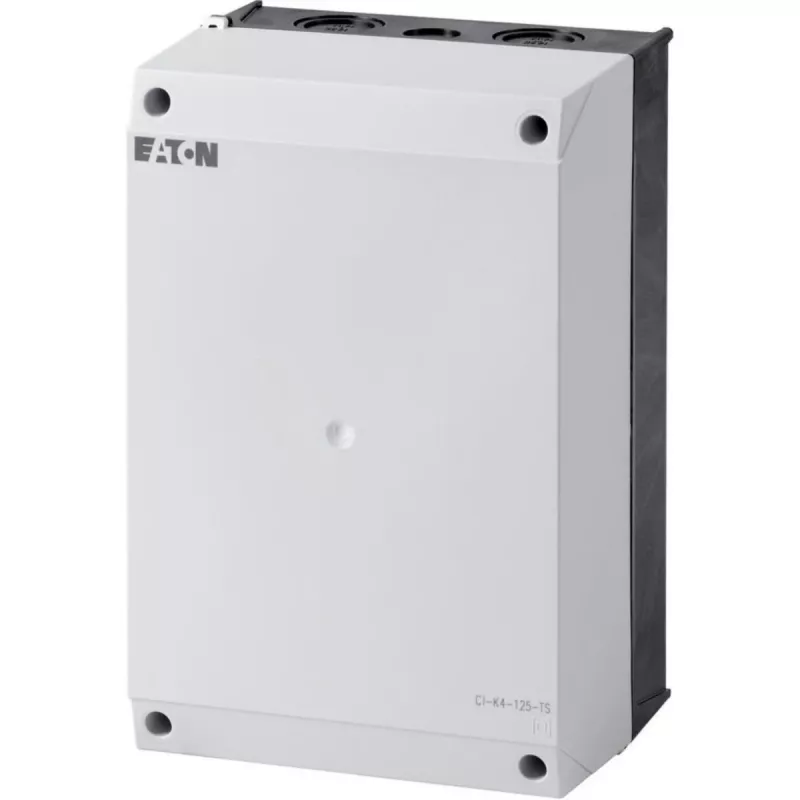

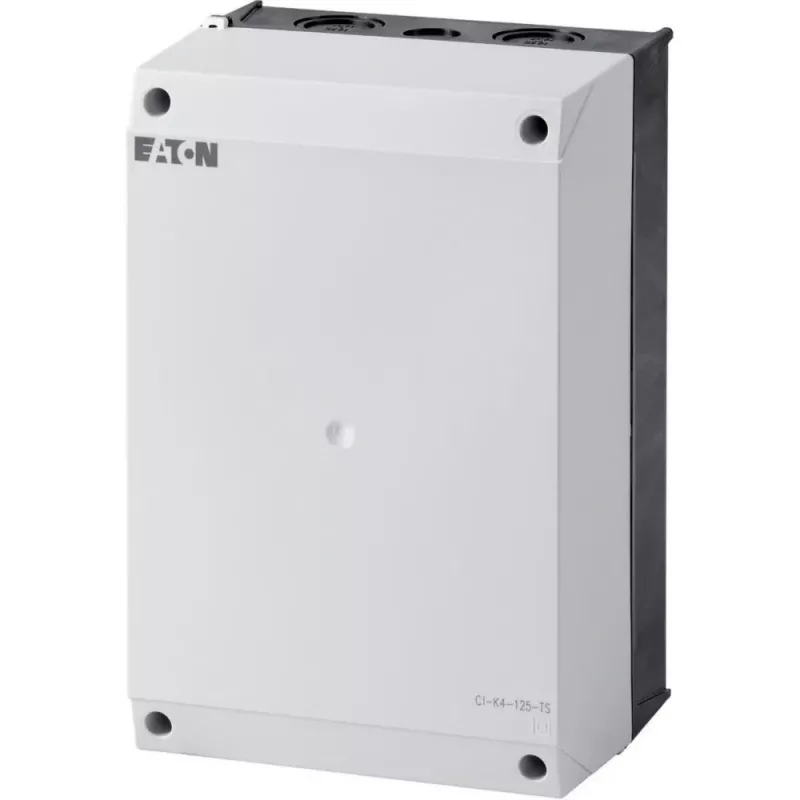

Eaton Caixa de flange inferior preta/superior branca 160 x 240 mm PC IP65 com calha DIN (CI-K 4-125-TS)

Electrical installers and panel builders use this flange enclosure to house DIN rail mounted components in industrial and building automation environments. The enclosure measures 160 x 240 x 125 mm and combines a black base with a white cover, both made from polycarbonate. It includes a DIN rail for direct component mounting and is rated IP65, making it suitable for dusty or wet locations.

Key specifications

• Material: Polycarbonate (PC)
• Colour: Black bottom, white top
• External dimensions: 160 x 240 x 125 mm
• Ingress protection: IP65
• Impact resistance: IK08
• Operating temperature: -40 to +80 °C
• Flame retardancy: UL 94 V-0
• Halogen-free: Yes
• UV resistant: Yes
• Rated insulation voltage: 1000 V AC / 1500 V DC
• Usable depth: 110 mm
• Cover fasteners: Stainless steel screws
• Seal material: Polyurethane (PU) gasket
• Included accessories: DIN rail

Why choose it

The polycarbonate housing offers high impact strength and UV stability, ensuring long-term durability in demanding environments. The IP65 rating protects against dust and water jets, while the included DIN rail simplifies installation of modular devices. The black base and white cover provide a clear visual contrast, aiding in quick identification of components.

Ideal use cases

• Industrial control panels
• Building automation systems
• Outdoor electrical installations
• Machine building

Good to know

The enclosure is halogen-free and flame retardant to UL 94 V-0, meeting strict safety requirements. The polyurethane gasket ensures a reliable seal, and the stainless steel screws resist corrosion. The enclosure complies with IEC/EN 62208 and IEC/EN 61439-1 standards.
