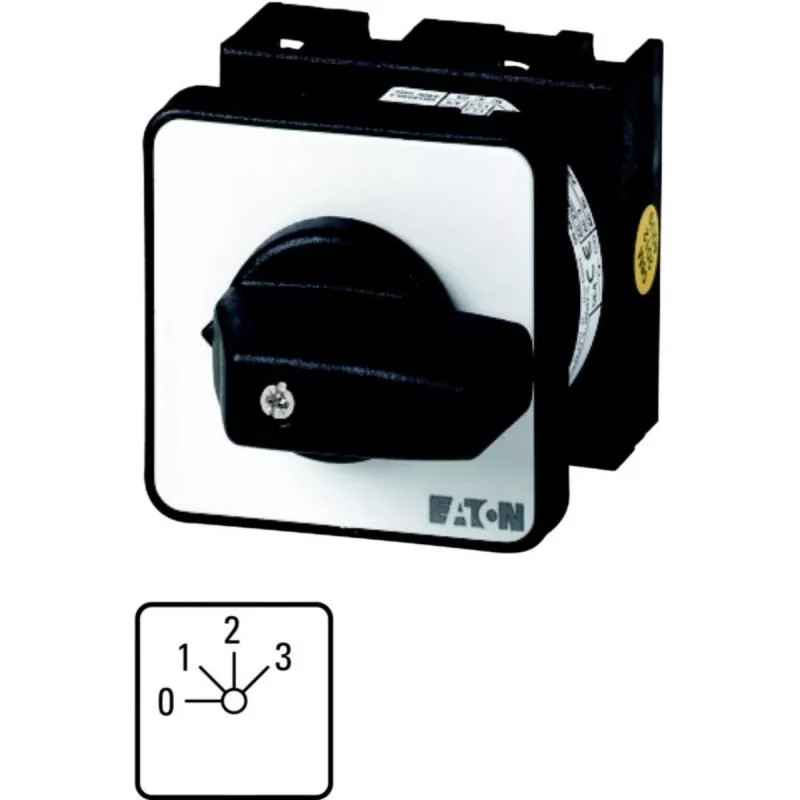

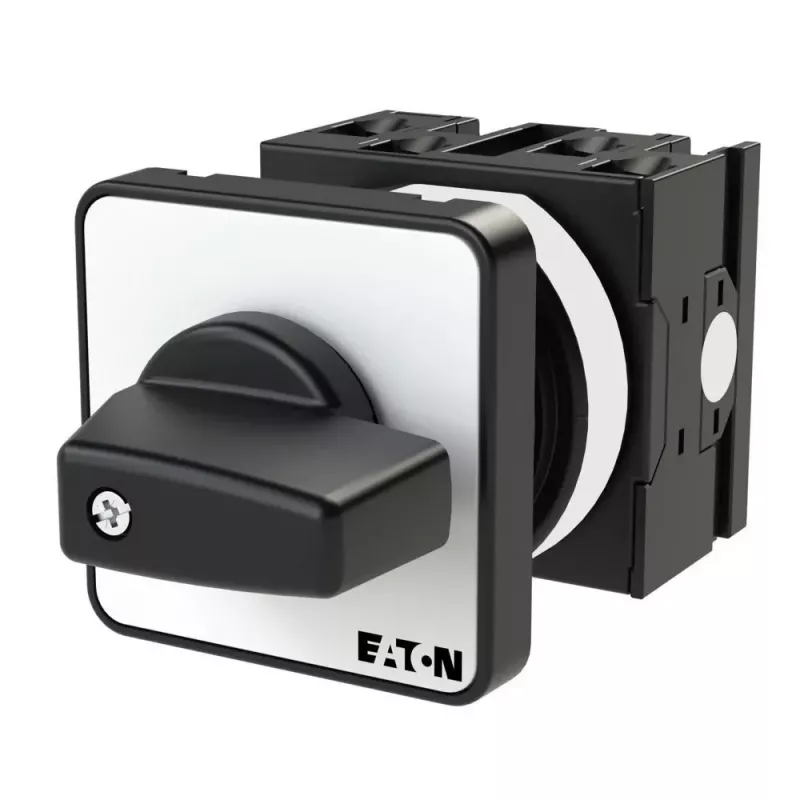

Eaton T0-2-8241/E interruptor de nível, 1P, com fios, preto/prateado, IP65, UL 60947-4-1, CSA C22.2 No. 60947-4-1-14, CSA-C22.2 No. 94, IEC/EN 60947-3, CE 050716

The Eaton T0-2-8241/E level switch stands out with its robust IP65-rated enclosure and dual certification for both IEC and North American standards, making it a reliable choice for demanding industrial control applications. Its cable-connected design and front/central mounting options simplify installation in control panels and machinery.

Highlights

• Rated uninterrupted current of 20 A and operational voltage up to 690 V AC
• IP65 protection against dust and water jets
• Complies with IEC/EN 60947-3, UL 60947-4-1, and CSA C22.2 No. 60947-4-1-14
• Black handle and silver front plate for clear visual identification

In daily use

With a 90° switching angle and two positions (ON/OFF), this switch provides straightforward control for main and maintenance switching tasks. Screw terminals ensure secure wiring, while the compact design fits standard panel cutouts.

Full specifications

• Number of poles: 3-pole
• Switching function: ON/OFF, main switch, maintenance switch
• Rated uninterrupted current (Iu): 20 A
• Rated operational voltage (Ue): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-time withstand current (Icw): 320 A (1 s)
• Rated operational power (AC-23A, 400 V): 5.5 kW
• Rated operational power (AC-3, 400 V): 3 kW
• Degree of protection: IP65
• Mounting type: front mounting, central mounting
• Connection type: screw terminals
• Switching angle: 90°
• Number of switching positions: 2 (ON/OFF)
• Colour: black handle, silver front plate
• Standards: IEC/EN 60947-3, UL 60947-4-1, CSA C22.2 No. 60947-4-1-14, CE

Final note

This level switch combines international compliance with rugged construction, ensuring dependable performance in industrial environments.
