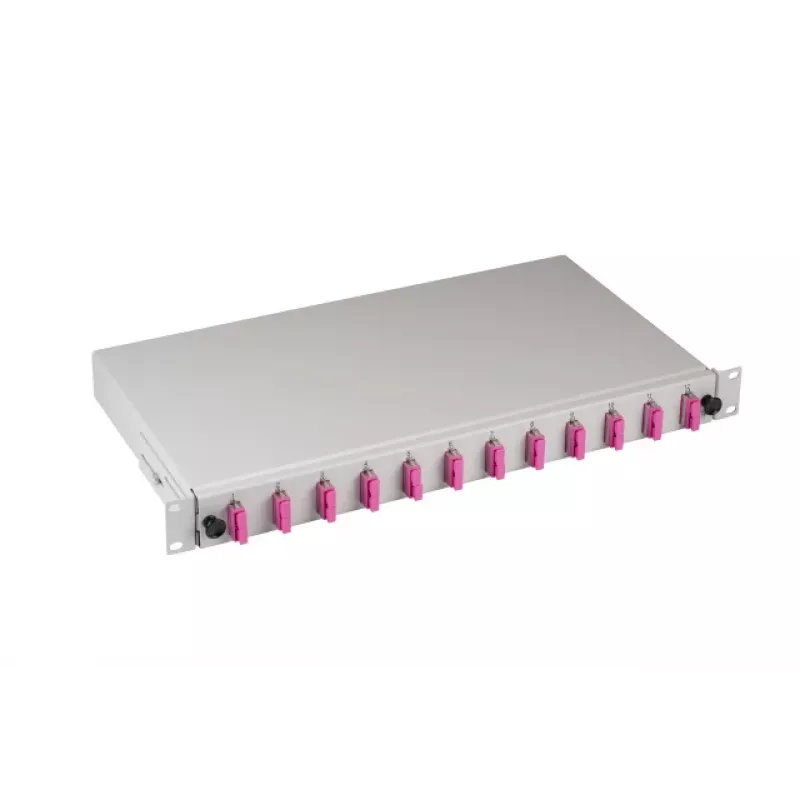

EFB Elektronik B71203L24OM4 caixa de fusão de fibra ótica SC 50/125µm OM4 extraível, 24 pigtails / 12 adaptadores

The EFB Elektronik B71203L24OM4 is a high-quality fiber optic splice box designed for efficient cable termination and management. Pre-assembled with 24 SC pigtails and 12 SC duplex adapters, this sliding/extractable unit supports OM4 multimode fibers with a 50/125 µm core/cladding diameter. Its robust metal housing ensures durability in rack-mount installations.

Advantages

Sliding design allows easy access for splicing and maintenance. Pre-terminated pigtails and adapters save installation time. OM4 grade supports high-bandwidth applications up to 100 GbE.

Suitable for

• Data center fiber optic distribution
• Telecommunications network termination
• LAN and SAN fiber management

Key specifications

• Product Type: Fiber Optic Splice Box
• Fiber Type: Multimode OM4
• Core/Cladding: 50/125 µm
• Pigtail Connector: SC
• Adapter Connector: SC Duplex
• Number of Pigtails: 24
• Number of Adapters: 12
• Total Fiber Capacity: 24
• Design: Sliding / Extractable
• Mounting: Rack Mount
• Housing Material: Metal
• Colour: Grey / Violet
• Dimensions: 483 mm width

Recommendations

For optimal performance, use with OM4 patch cables and ensure proper fiber cleaning before connection. This splice box is ideal for high-density fiber environments.
