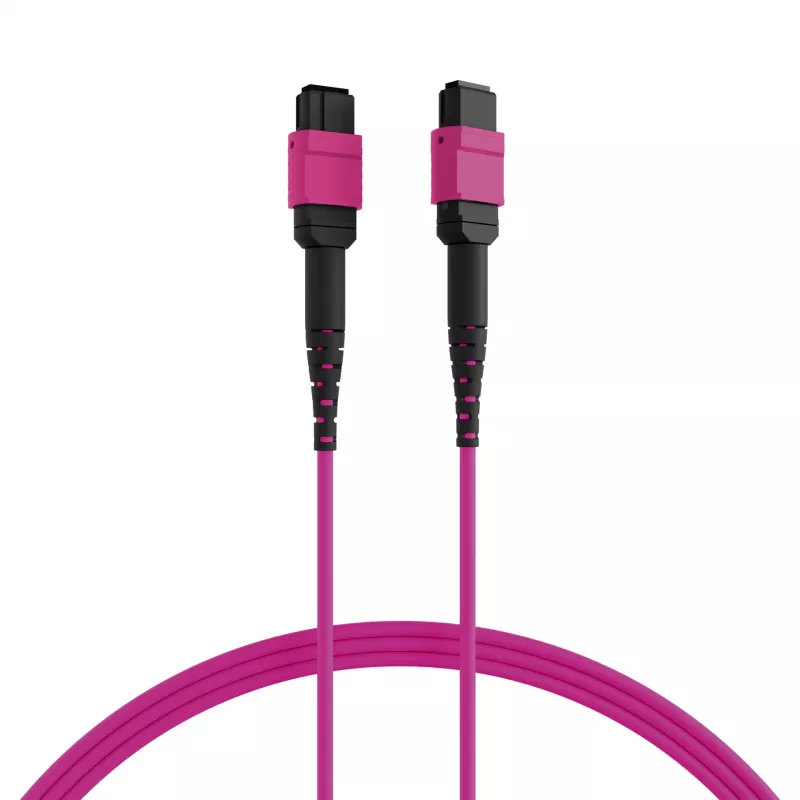

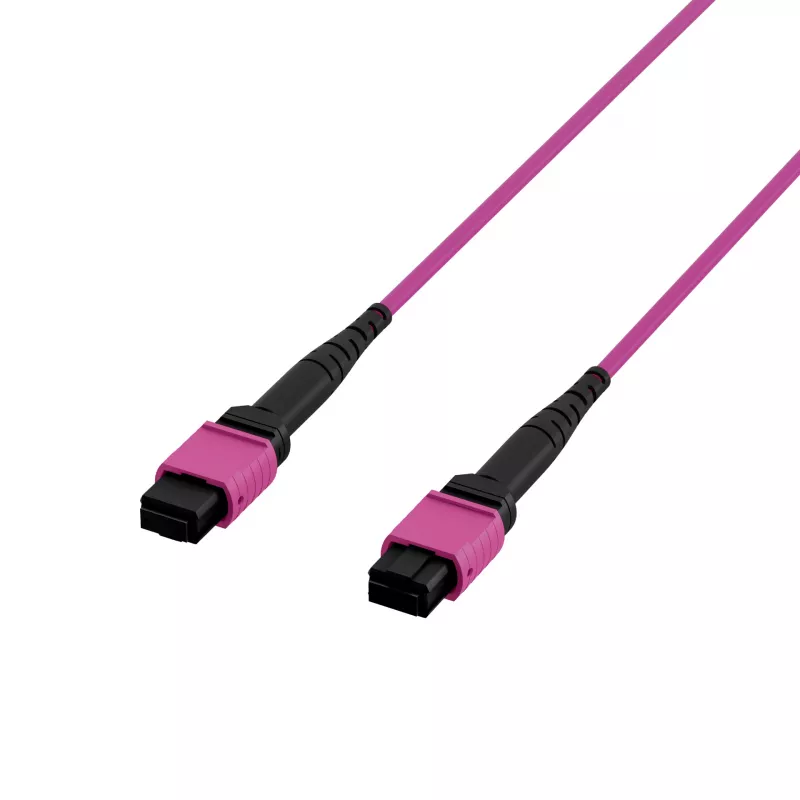

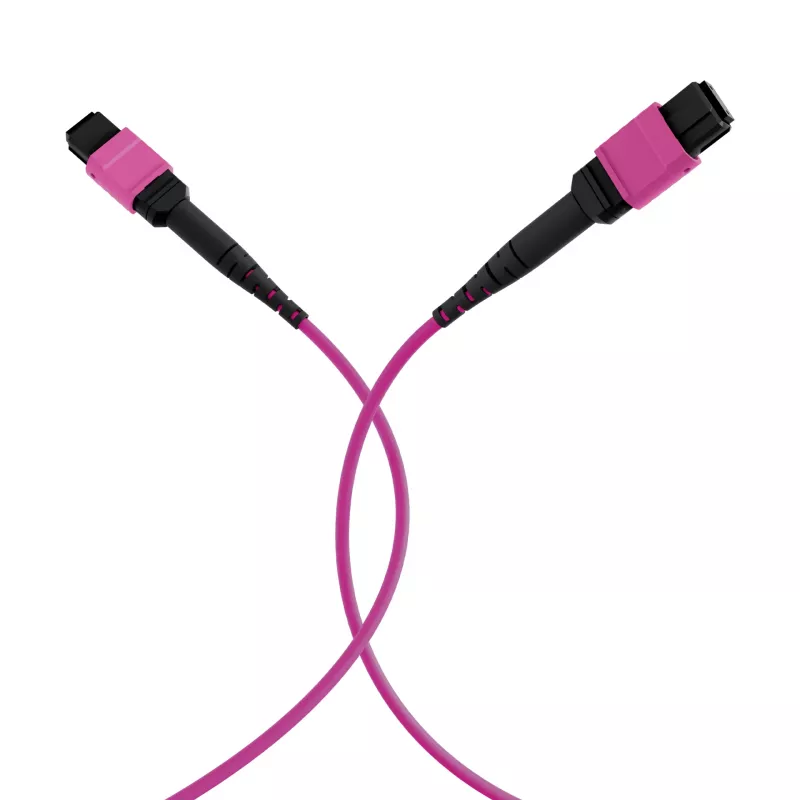

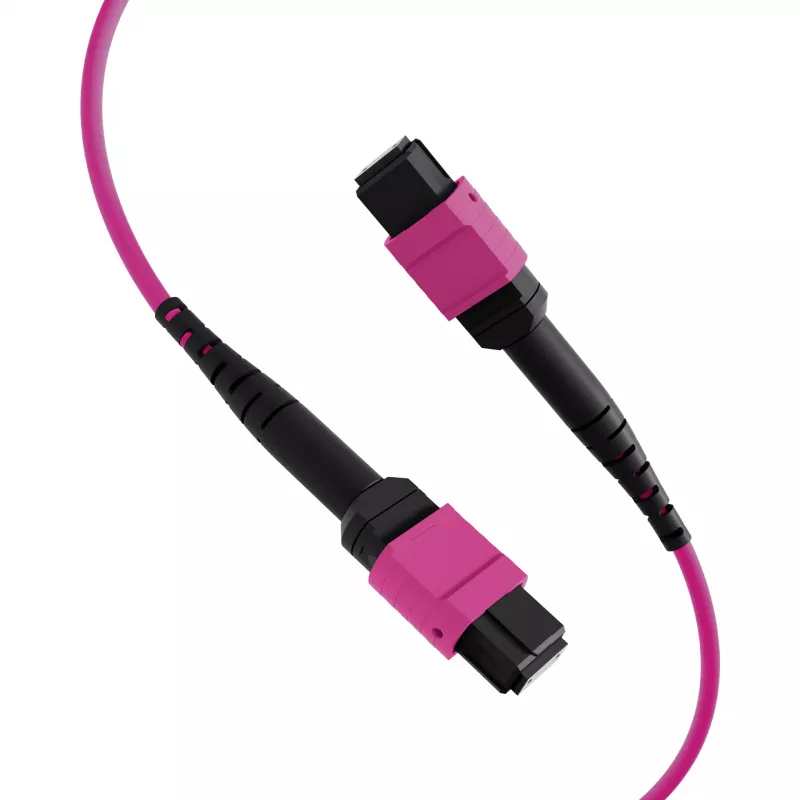

EFB Elektronik Cabo patch MPO-PLUS OM4 8 fibras tipo B LSZH, violeta erika, 3 m MPOF8MPOFOM4-3

Engineered for high-density 40/100 Gigabit Ethernet links, this EFB Elektronik MPO-PLUS patch cable delivers OM4 multimode performance across 8 fibers with a low 0.35 dB maximum insertion loss. The Type B polarity and female MPO-PLUS connectors on both ends ensure seamless integration into parallel optic transceivers and data center interconnects.

Overview

The MPOF8MPOFOM4-3 is a 3-meter fiber optic patch cable featuring MPO-PLUS female connectors and 8 OM4 multimode fibers in a Type B polarity configuration. The LSZH jacket in Erika-violet provides low smoke and halogen-free safety, while the 3.0 mm diameter and 7.5 mm minimum bend radius allow for flexible routing in dense patching areas.

What stands out

• OM4 multimode fiber supports 40GBASE-SR4 and 100GBASE-SR4 applications.
• MPO-PLUS connectors with zirconia ceramic ferrules for precise alignment.
• LSZH jacket meets IEC 60332-1 flammability rating.
• Operating temperature range from -20°C to 70°C.

Technical details

• Cable length: 3 m
• Fiber type: Multimode OM4
• Connector A: MPO-PLUS female
• Connector B: MPO-PLUS female
• Number of fibers: 8
• Polarity: Type B
• Insertion loss (max): 0.35 dB
• Return loss (min): 20 dB
• Jacket material: LSZH
• Cable color: Erika-violet
• Cable diameter: 3.0 mm
• Minimum bend radius: 7.5 mm
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Standards: TIA/EIA-568-C.3, IEC 61754-7

Our verdict

A reliable and high-performance MPO patch cable for modern data centers, offering OM4 bandwidth, low insertion loss, and a safe LSZH jacket in a distinctive Erika-violet color.
