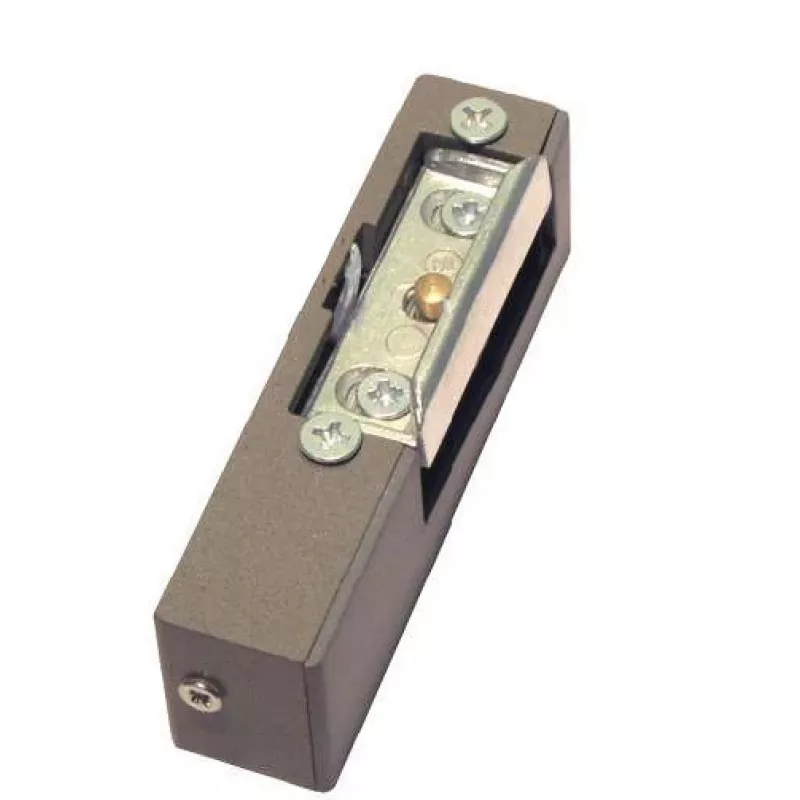

ELEKTRA-PLUS R3 trinco elétrico direito com memória e bloqueio

The ELEKTRA-PLUS R3 Right Electric Strike with Memory and Blocking is designed for controlled door access. It features an adjustable latch and operates on a nominal voltage of 10 ± 2V.

Key features

• Right-handed electric strike
• Memory and blocking function
• Adjustable latch with 3 mm adjustment range
• Allows use of a bell transformer

Specifications

• Brand: Elektra-Plus
• MPN: R3-12.40P

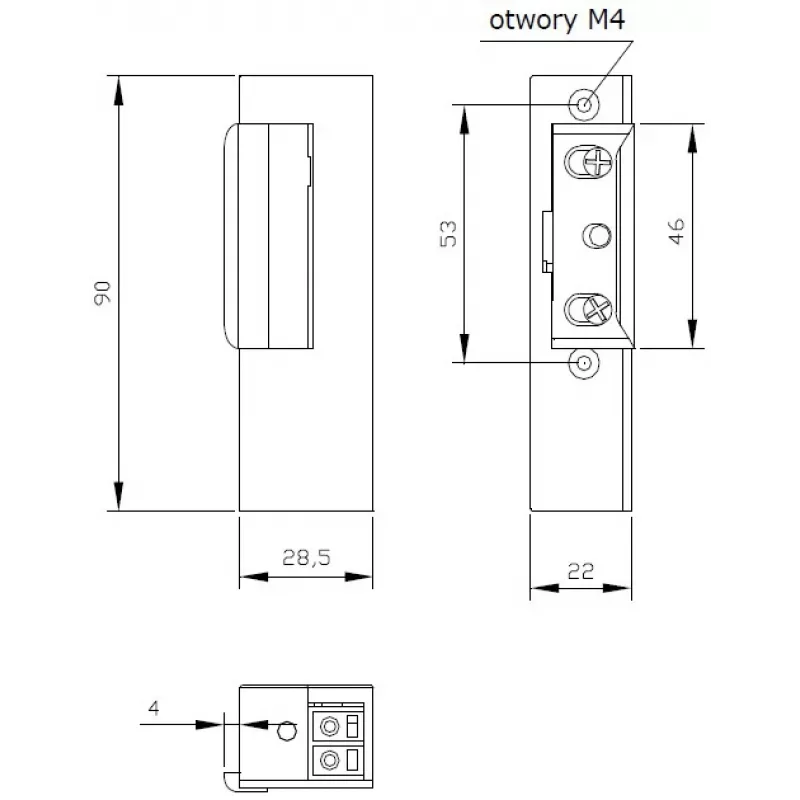

• External housing dimensions: 22 x 28 x 90 mm
• Weight: 0.20 kg
• Maximum weight of strike with faceplate: 0.40 kg
• Permissible pressure on door during latch release: 30N (3 kG)
• Permissible door load acting on strike: 3000 N (300 kG)
• Nominal voltage U: 10 ± 2V
• Current I: AC 270-420mA, DC 420-650mA
• Permissible continuous operation time: 30 min
