ELEKTRA-PLUS R5 trinco elétrico simétrico estreito 16,5mm sem bloqueio

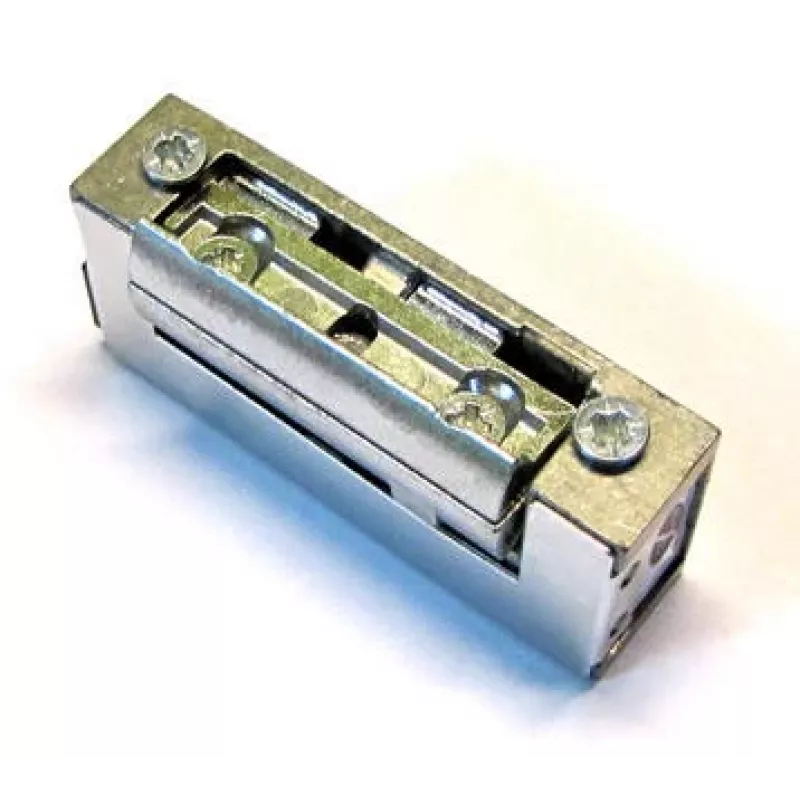

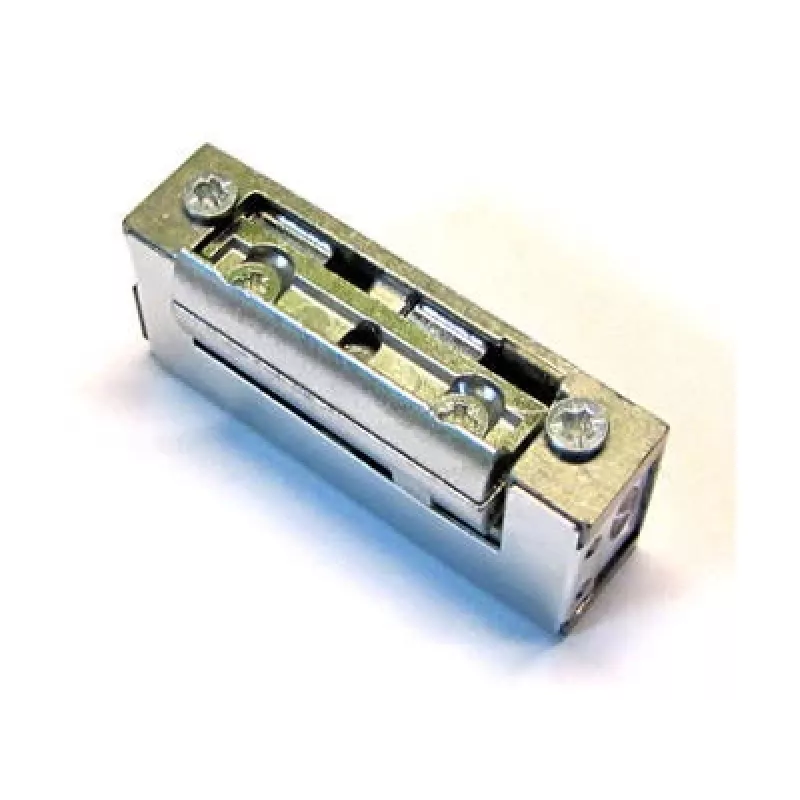

The ELEKTRA-PLUS R5 is a symmetrical narrow electric strike designed for use with aluminium and PVC profile doors. It can be used on both left and right doors, and its special latch design allows installation with a smaller frame cut-out.

Key features

• Symmetrical design – one model fits left and right doors

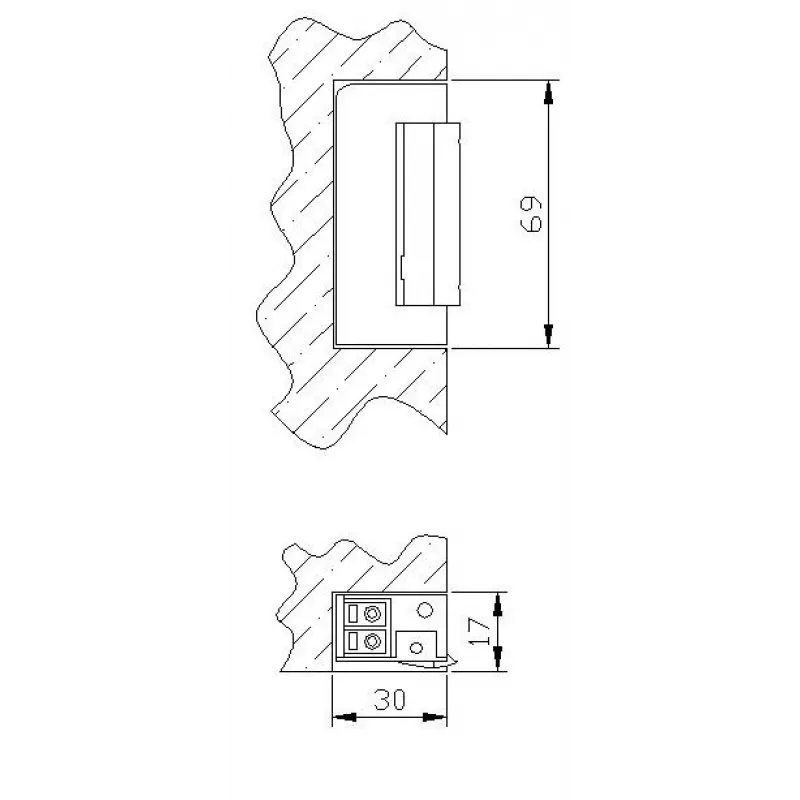

• Special latch construction enables mounting with reduced frame cut-out
• Suitable for remote opening of single and double doors and gates
• Works with latch or latch-and-bolt locks
• Latch adjustable within 3 mm for play adjustment

Specifications

• Brand: Elektra-Plus
• MPN: R5-12.10

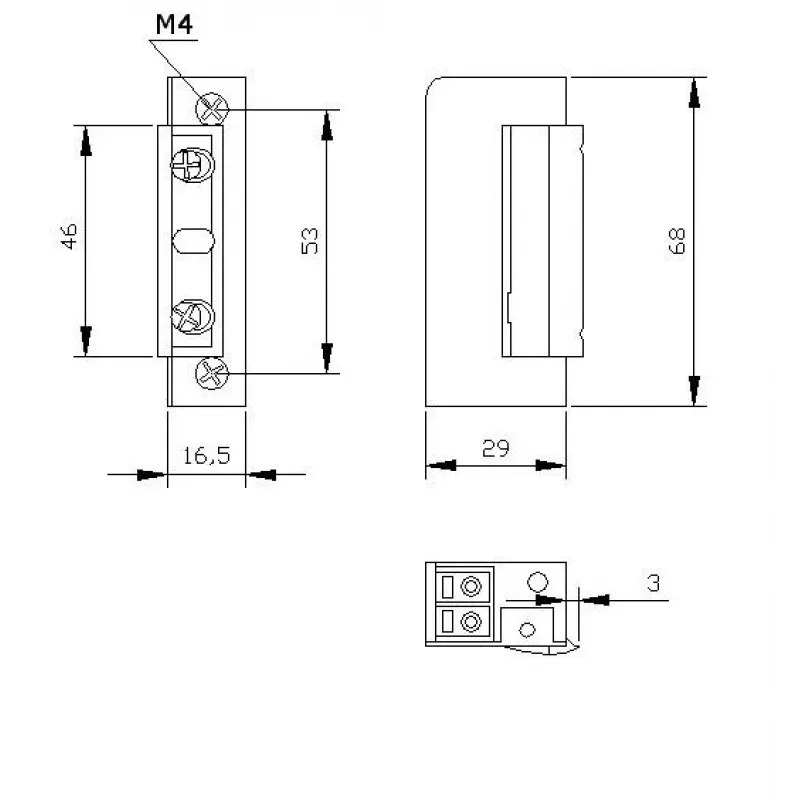

• External housing dimensions: 16.5 x 29 x 67 mm
• Weight: 0.13 kg
• Maximum weight of strike with faceplate: 0.34 kg
• Permissible pressure on door during latch release: 30 N (3 kG)
• Permissible door load on strike: 3000 N (300 kG)
• Rated voltage U: 10 ± 2 V *
• Permissible continuous operation time: 30 min.
• * Allows use of a bell transformer
