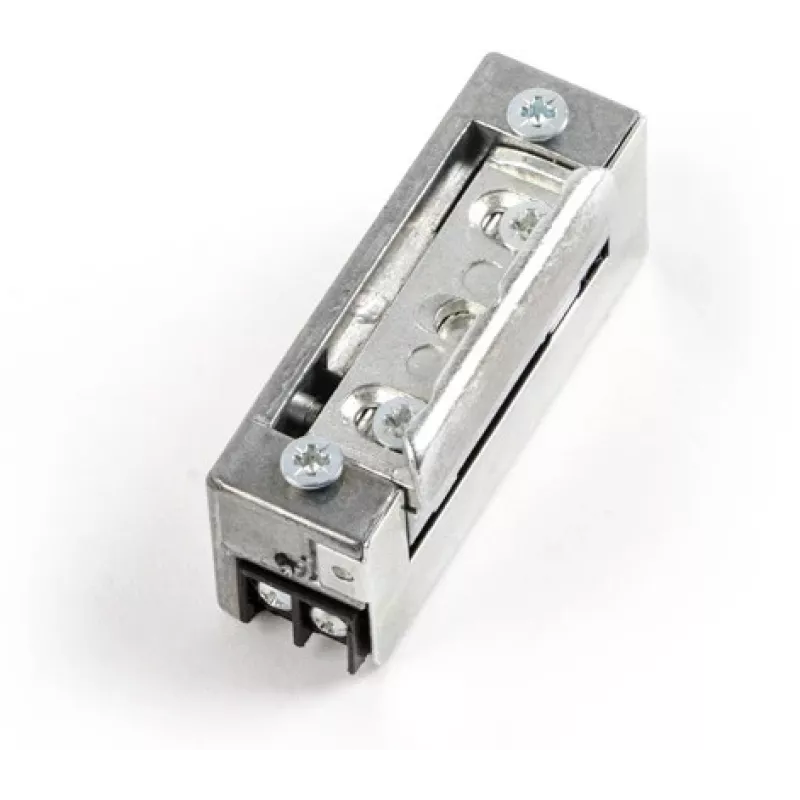

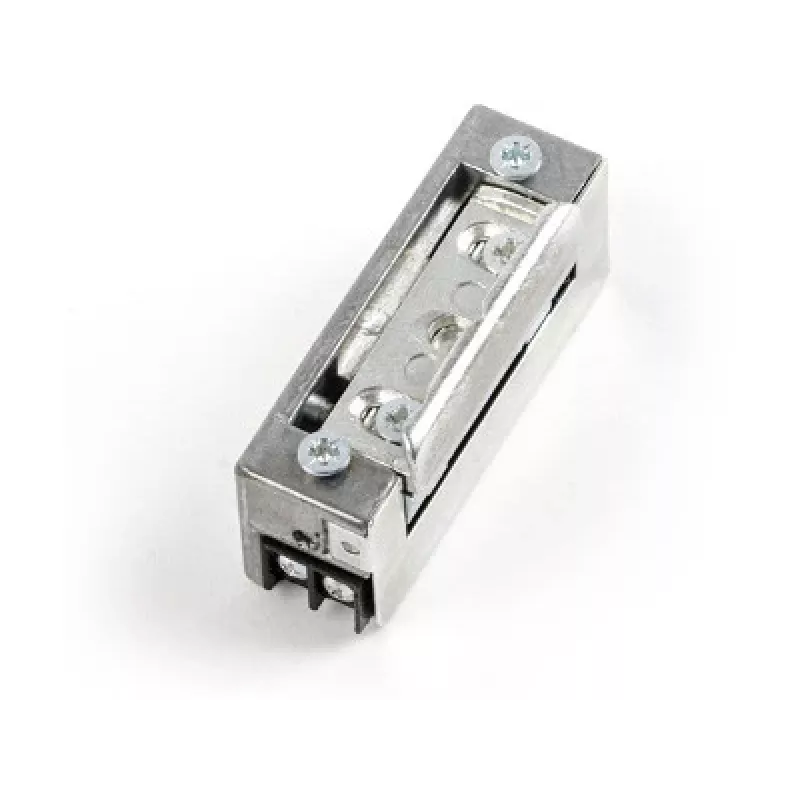

Elektra-Plus R4-24.10 trinco elétrico simétrico, 24V

The Elektra-Plus R4-24.10 is a symmetrical electric door strike designed for remote opening of left, right and double-leaf doors and gates. It works with a latch or latch-and-bolt lock and is intended for use where a recess of 22x30x69 mm can be made. The strike operates with a quiet buzzing sound.

Key features

• Symmetrical electric strike
• For remote opening of left, right and double-leaf doors and gates
• Works with latch or latch-and-bolt lock
• Quiet buzzing operation
• Adjustable latch with 3 mm adjustment range for play

Specifications

• Brand: Elektra-Plus
• MPN: R4-24.10
• Supply voltage: 24 V
• Rated voltage U: 24 ± 2 V

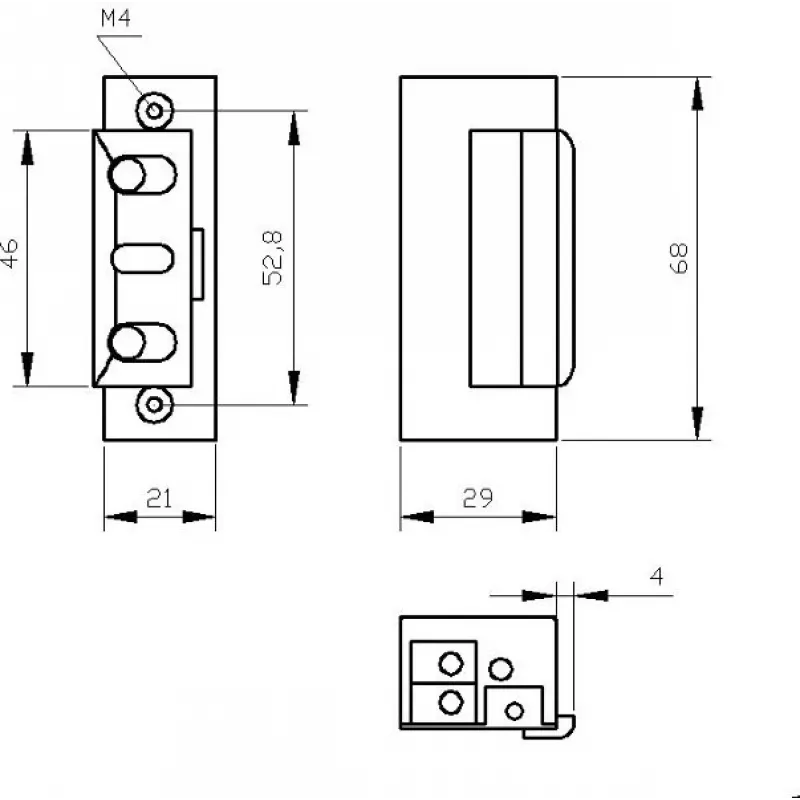

• External housing dimensions: 21 x 29 x 68 mm
• Weight: 0.16 kg
• Permissible pressure on door during latch release: 30 N (3 kG)
• Permissible door load acting on strike: 3000 N (300 kG)
• Permissible continuous operation time: 30 min
• Latch: adjustable within 3 mm range for play adjustment
• Required recess dimensions: 22 x 30 x 69 mm
