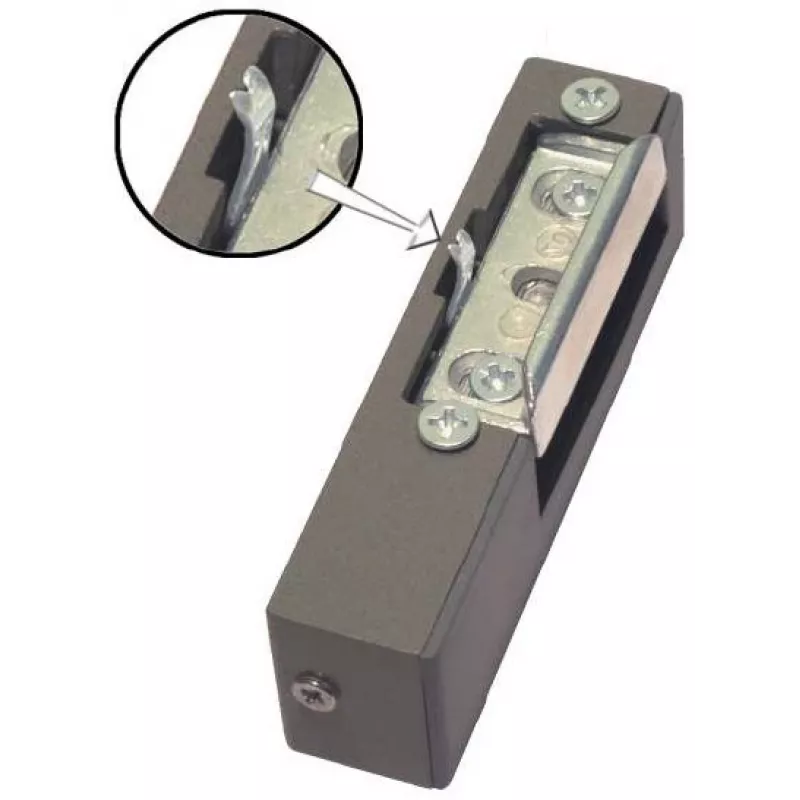

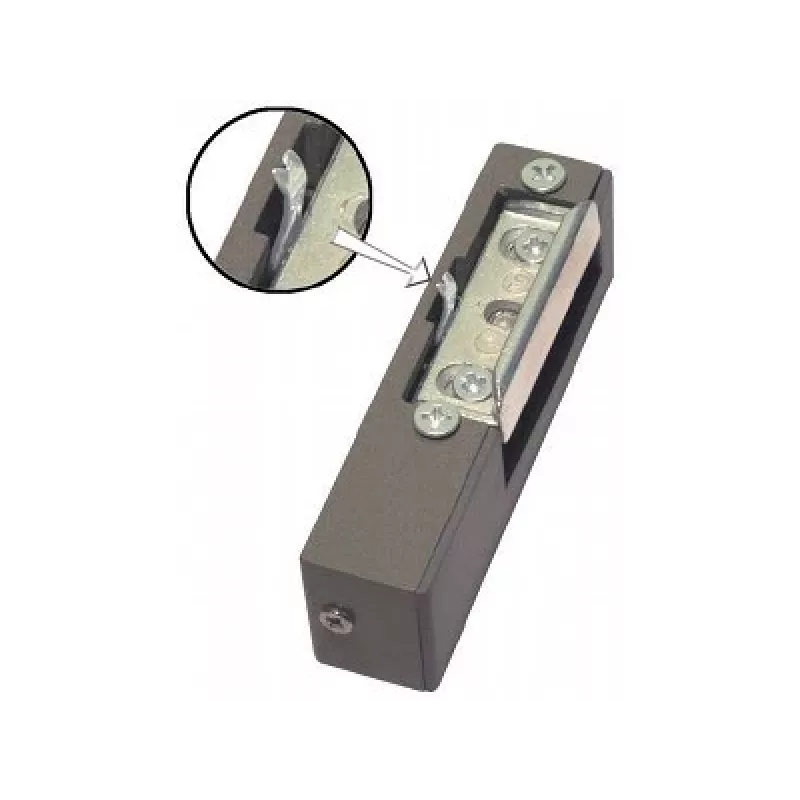

ELEKTRA-PLUS R3 fechadura elétrica direita com mecanismo de bloqueio

The ELEKTRA-PLUS R3 Electric Strike is a high-quality access control component designed for right-hand doors. Featuring a blocking mechanism, this fail-secure strike ensures reliable locking and enhanced security in access control and intercom systems.

Advantages

Universal voltage compatibility (10-24V AC/DC) allows flexible integration with various control systems. The adjustable latch (3mm) simplifies installation and alignment. With a holding force of 3000 N and durability of 200,000 cycles, it offers long-lasting performance.

Suitable for

• Access control systems
• Intercom systems
• Commercial and residential door security

Key specifications

• Product Type: Electric Strike
• Functionality: With Blocking Mechanism
• Handing: Right-Hand
• Operating Mode: Fail-Secure
• Operating Voltage: 10-24V AC/DC
• Current Consumption (12V DC): 250 mA
• Current Consumption (12V AC): 500 mA
• Current Consumption (24V DC): 125 mA
• Current Consumption (24V AC): 250 mA
• Holding Force: 3000 N
• Durability: 200,000 cycles
• Material: Zinc-Aluminum Alloy (ZnAl)
• Mounting Type: Recessed
• Adjustable Latch: Yes (3mm)
• Operating Temperature: -15°C to +40°C
• Protection Class: IP20

Recommendations

For optimal performance, ensure proper voltage and current supply. The blocking mechanism keeps the strike unlocked after a single electrical impulse until the door is opened and closed.
