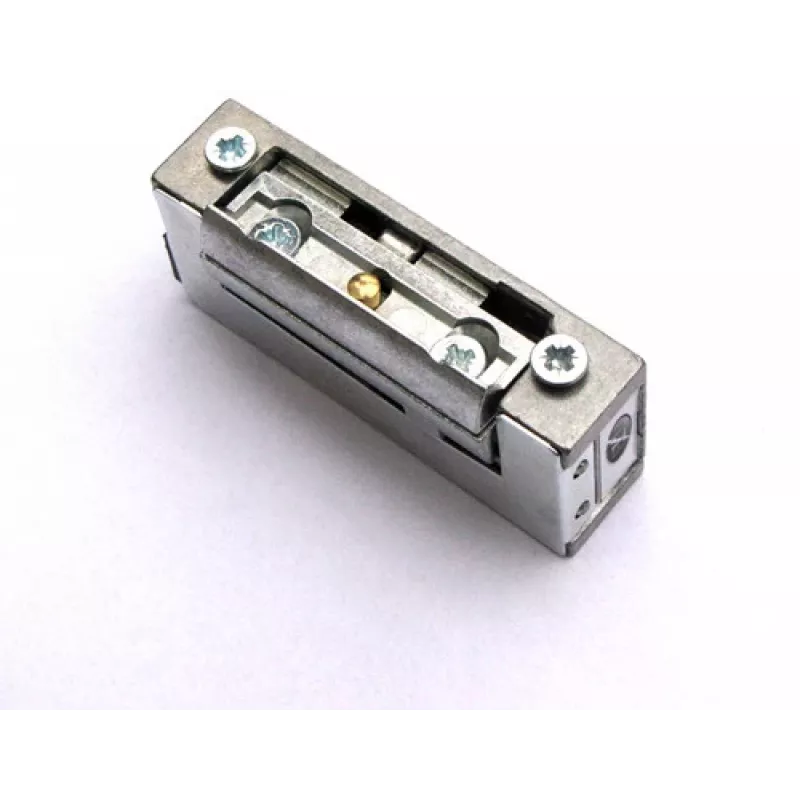

ELEKTRA-PLUS R5 trinco elétrico com memória, sem bloqueio

The ELEKTRA-PLUS R5 Electric Strike with Memory, Without Blockade is designed for remote opening of left and right doors and gates, as well as double-leaf doors. It works with a latch-and-bolt lock or a latch lock. The memory function eliminates the need to continuously hold the intercom button.

Key features

• Memory function releases from continuously holding the intercom button
• Suitable for doors made of aluminium and PVC profiles
• Symmetric design – one model for left and right doors
• Special latch construction allows mounting the electric strike with a smaller frame cutout
• For remote opening of left and right doors and gates, and double-leaf doors
• Works with latch-and-bolt lock or latch lock

Specifications

• Brand: Elektra-Plus
• MPN: R5-12.30
• External housing dimensions: 16.5 x 29 x 68 mm
• Weight: 0.13 kg
• Maximum weight of strike with faceplate: 0.34 kg
• Permissible pressure on door during latch release: 30 N (3 kg)
• Permissible load on door acting on strike: 3000 N (300 kg)
• Rated voltage U: 10 ± 2 V *
• Permissible continuous operation time: 30 min
• Latch: adjustable within 3 mm range for clearance adjustment
• * allows use of a bell transformer
