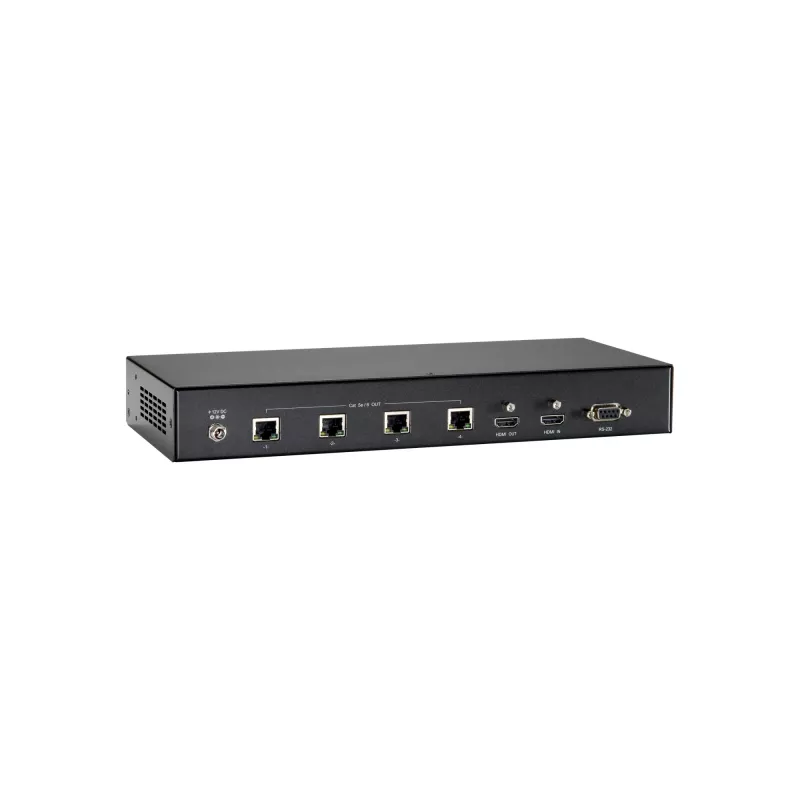

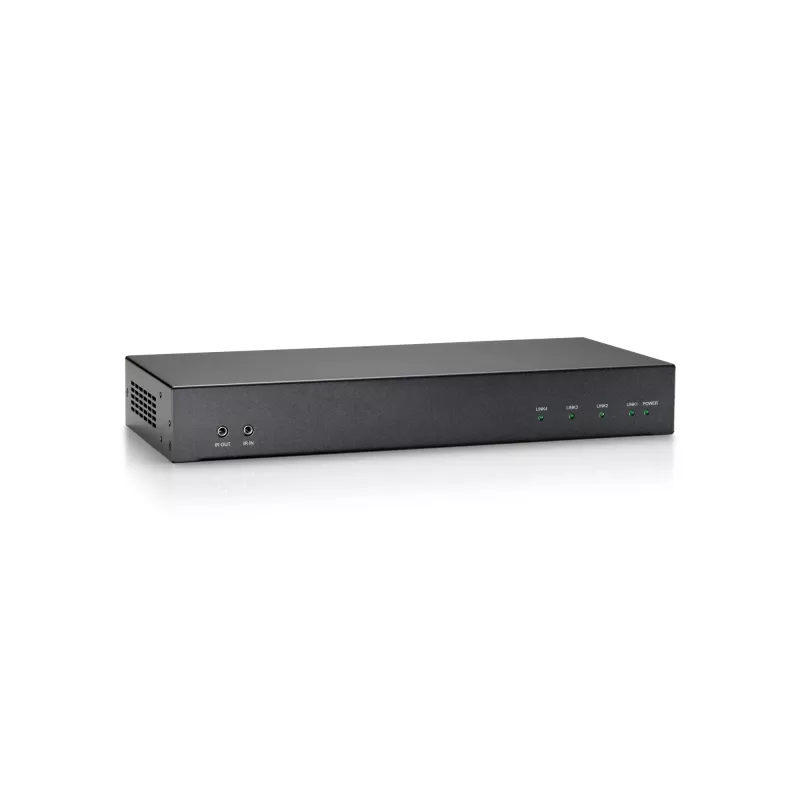

Emissor AV LevelOne HDMI sobre Cat.5 emissor HDBaseT 100 m saídas de 4 canais

The HVE-92 series is an HDMI extension solution that uses HDBaseT technology to transmit HDMI video and multi-channel audio over Cat5e or Cat6 cable. It supports Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD signals up to 100 m, and includes EDID priority management for HDMI outputs with Hot Plug detection and refresh. The devices provide bi-directional RS-232 and IR pass-through for remote control from either the source or display location, simplifying installation while maintaining video and audio quality for applications such as digital signage, trade shows, home theaters and medical facilities.

Advantages

The HVE-92 series offers long-distance HDMI transmission up to 100 m over standard Cat5e/Cat6 cable, integrated EDID and Hot Plug detection to ensure compatible video output, and bi-directional RS-232 and IR control for flexible device management. Plug-and-play setup and a screw-in power socket improve installation safety and reduce deployment time.

Key specifications

• Transmission technology: HDBaseT
• Maximum resolution: 3840 x 2160 (4K x 2K) @ 30Hz
• Supported video: Ultra HD 4K x 2K, 1080p Full HD
• Maximum transmission distance: up to 100 m over Cat5e/Cat6
• Audio formats: Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1
• EDID management: HDMI outputs with EDID priority and Hot Plug Detection (HPD)
• Control interfaces: Bi-directional RS-232 pass-through and IR control
• Other supported features: 3D, CEC and Lip Sync pass-through
• Compliance: HDMI and HDCP compliant
• Power connector: screw-in power socket for added safety

How to use

Connect the HDMI source to the HVE-92 transmitter and the display to the receiver, then link transmitter and receiver with Cat5e or Cat6 cable up to 100 m. Ensure EDID settings are managed via the device outputs or allow the built-in EDID Hot Plug Detection to refresh automatically. Use the bi-directional RS-232 or IR pass-through to control source or display equipment from either location. Apply power using the provided adapter and secure it with the screw-in power socket.

Recommendations

For reliable 4K transmission, use high-quality Cat6 cable and keep cable runs within 100 m. Verify EDID settings when connecting sources with non-standard resolutions or audio formats. Use the RS-232 or IR pass-through for centralized control in installations such as digital signage or conference rooms.
