ESYLUX PD-C360/8 Slave Sensor infravermelho passivo (PIR), teto, 8 m, Branco

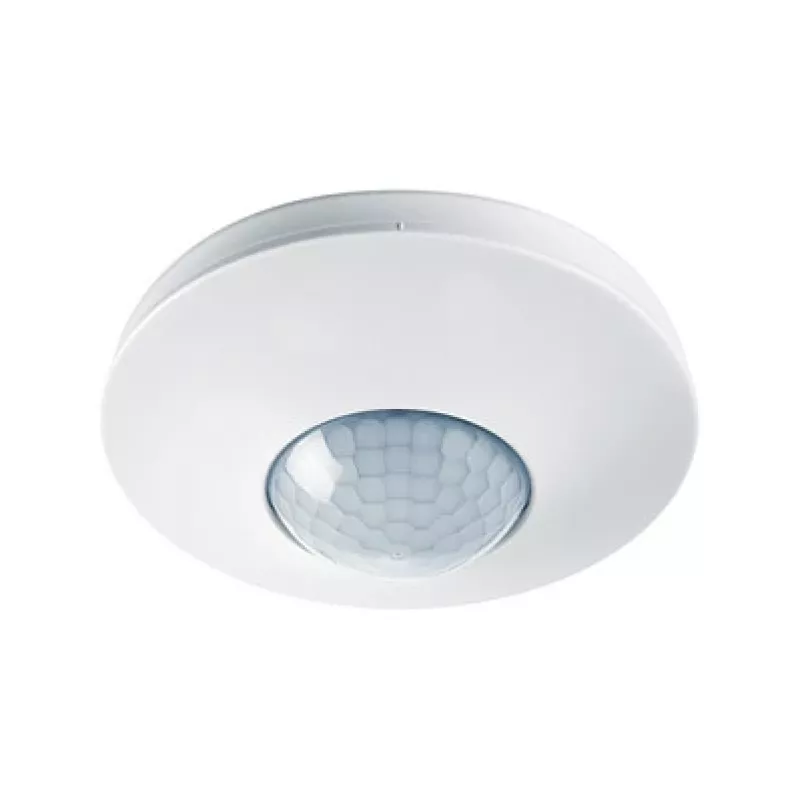

The ESYLUX PD-C360/8 Slave is a passive infrared (PIR) sensor designed to extend the detection area of a master detector. Ideal for indoor ceiling mounting, this wired slave unit offers a 360° detection angle and an 8 m diameter range, making it perfect for large open spaces such as offices, hallways, and conference rooms. Its compact design allows for recessed or flush-mounted installation with a depth of only 48 mm.

Advantages

Seamlessly integrates with ESYLUX master detectors to expand coverage without additional wiring complexity. The UV-stabilised polycarbonate housing ensures long-lasting durability, while the screw terminals provide secure and easy connection. With no light sensor or switching output, the slave unit is a cost-effective solution for extending presence detection.

Suitable for

• Indoor ceiling mounting in commercial and residential buildings
• Expanding detection zones in open-plan offices, corridors, and meeting rooms
• Integration with ESYLUX lighting control systems for energy-efficient automation

Key specifications

• Sensor Type: Passive Infrared (PIR)
• Detection Angle: 360°
• Detection Range (Diameter): 8 m
• Recommended Mounting Height: 2.5 m
• Max. Mounting Height: 5 m
• Detection Area (at 2.5 m): 50 m²
• Mounting Type: Ceiling (recessed/flush-mounted)
• Installation Depth: 48 mm
• Connection Type: Wired
• Protection Class: IP20
• Colour: White
• Operating Temperature: 0°C to +50°C
• Material: UV-stabilised polycarbonate
• Application Environment: Indoor
• Power Supply: Via master unit
• Switching Output: None (slave unit)
• Light Sensor: None (slave unit)
• Terminal Type: Screw terminals

Recommendations

For optimal performance, mount at the recommended height of 2.5 m and ensure the sensor has a clear line of sight to the detection area. Pair with an ESYLUX master detector for seamless integration.
